CS 3310 (24A-424M709) - Cub Cadet Chipper/Shredder (2016) Flail Housing & Frame Parts Diagram

Chipper/Shredder

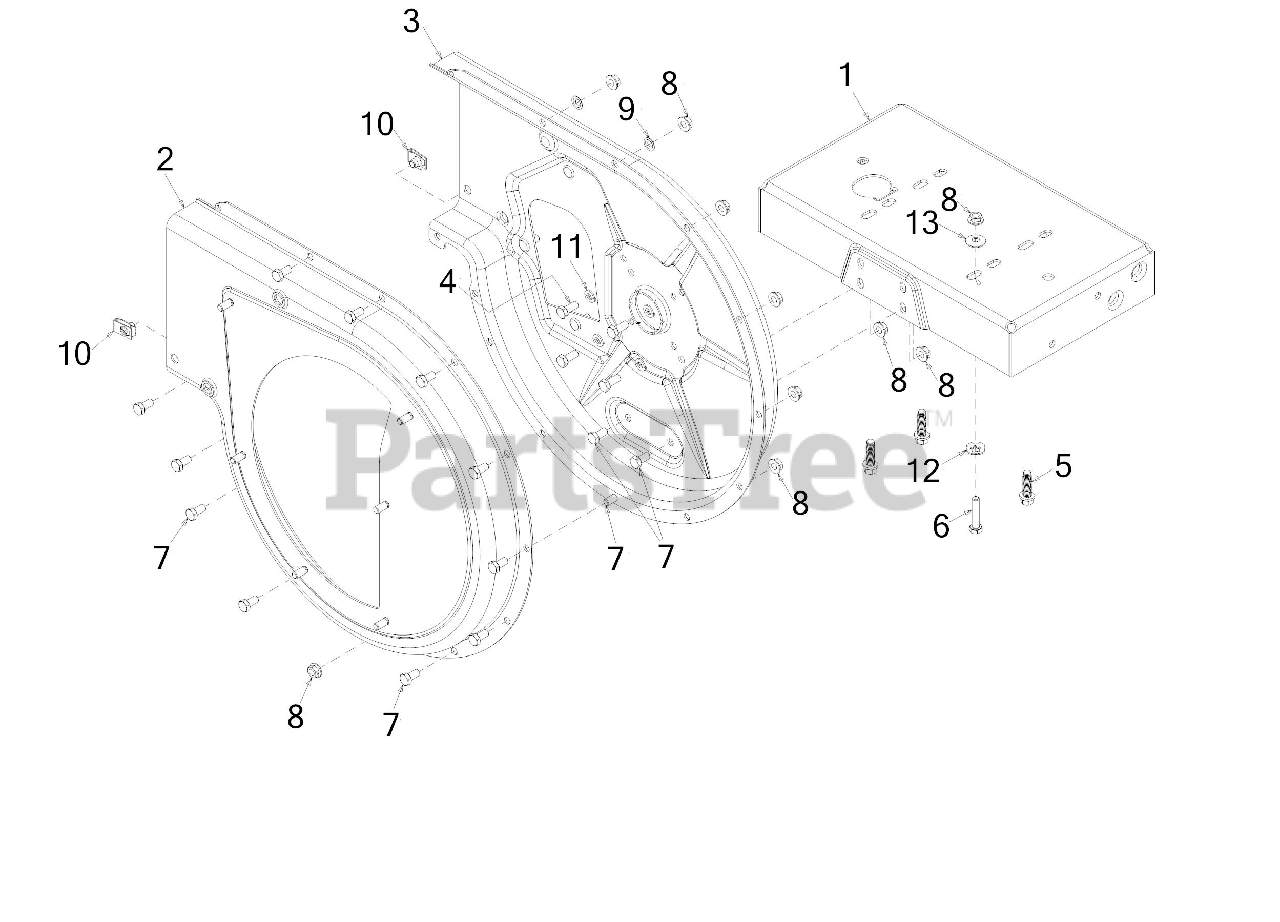

Flail Housing & Frame Parts Diagram

  • Title

1

Cub Cadet 681-0184C-4021

FRAME ASSEMBLY

$117.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1307

CLINCH STUD 5/16-18 x .75

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 681-04002-4021

FLAIL HOUSING ASSEMBLY (OUTER)

$141.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1307

CLINCH STUD 5/16-18 x .75

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 681-05063

INNER FLAIL HOUSING

Variations

Cub Cadet 681-05063-4021

HSG-FLAIL INNER - CUB YELLOW 2 (4021)

$162.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-05063-0638

HSG-FLAIL INNER - MTD/TROY-BILT RED (0638)

$162.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-05063-0691

HSG-FLAIL INNER - BLACK JACK (0691)

$150.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-05063-4044

HSG-FLAIL INNER - CRAFTSMAN RED (4044)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0157

HEX SCREW 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

5

Cub Cadet 710-0502A

SCREW 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3025

SCREW 5/16-18X .625 GR5

$3.99

$

In Stock, Qty 8

0

8

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 926-0211

U-NUT
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0170

SPECIAL WASHER
(Superseded to 736-0170)

$

$

Not available

13

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0
