CS 3310 (24A-424M709) - Cub Cadet Chipper/Shredder (2013) Hopper & Impeller Assembly Parts Diagram

Chipper/Shredder

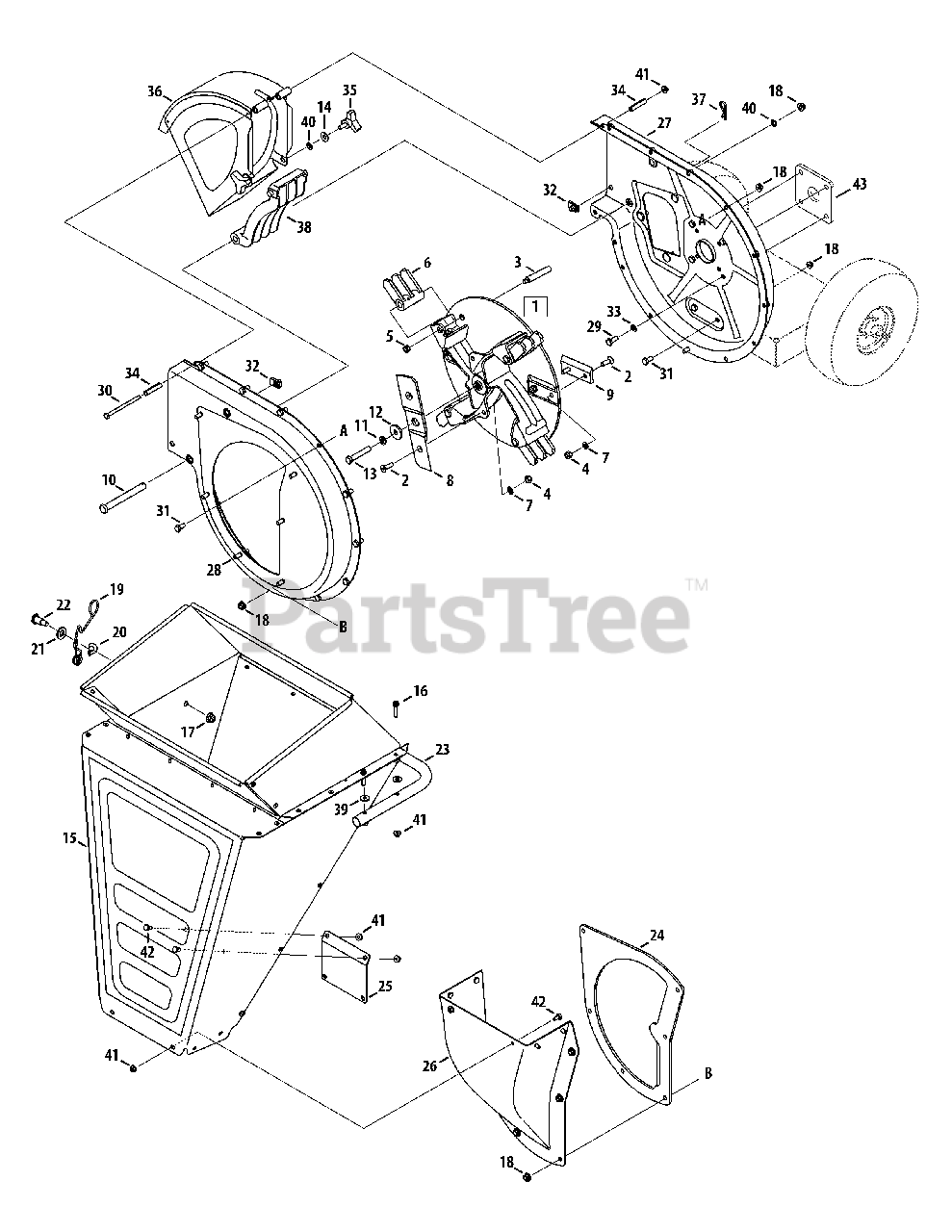

Hopper & Impeller Assembly Parts Diagram

  • Title

1

Cub Cadet 981-04094

Impeller Assembly Complete

$613.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1054

Machine Screw, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 738-04286A

Shoulder Pin, .5 x 2.625

$4.99

$

In Stock, Qty 11

0

4

Cub Cadet 912-0411

Hex Lock Nut, 5/16-24
(Superseded to 712-0411)

$

$

Not available

5

Cub Cadet 712-0266A

Nut, Jam Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 719-04308

Flail Blade

$18.99

$

In Stock, Qty 20+

0

7

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 942-04050

Shredder Blade
(Superseded to 742-04050-0637)

$34.99

$

In Stock, only 1 left!

0

9

Cub Cadet 942-0544B

Chipper Blade

$89.99

$

In Stock, Qty 7

0

10

Cub Cadet 911-0835

Clevis Pin,.50 x 4.62

$12.99

$

In Stock, only 3 left!

0

11

Cub Cadet 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

12

Cub Cadet 736-0247

Flat Washer,.406 x 1.25

$9.49

$

In Stock, Qty 14

0

13

Cub Cadet 710-1254

Hex Cap Screw, 3/8-24 x 2.2

$7.99

$

In Stock, Qty 8

0

14

Cub Cadet 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 681-04011-4021

Shredder Hopper Assembly
(Superseded to 981-04011-4021)

$

$

Not available

16

Cub Cadet 710-0809

Hex Cap Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 932-04167

Torsion Spring

$10.99

$

In Stock, Qty 10

0

20

Cub Cadet 736-0182

Spring Washer,.50 x 1.0 x.022

$4.49

$

In Stock, Qty 7

0

21

Cub Cadet 936-0326

Flat Washer,.50 x 1.0 x.0125
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 738-0430

Shoulder Screw, 3/8-16,

$11.99

$

In Stock, only 2 left!

0

23

Cub Cadet 749-04103-0637

Hopper Handle

$42.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 781-04007-4021

Shredder Plate

$46.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 781-04027-4021

Hopper Support Bracket

$22.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 781-04033-4021

Inlet Guide

$93.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 681-04116-4021

Inner Flail Housing Assembly
(Superseded to 681-05063-4021)

$162.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 681-04002-4021

Outer Flail Housing Assembly

$141.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

30

Cub Cadet 710-0825

Hex Cap Screw, 1/4-20 x 3.75

$5.49

$

In Stock, only 3 left!

0

31

Cub Cadet 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

32

Cub Cadet 926-0211

U-Nut, 5/16-18
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

33

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 950-0793

Hinge Spacer,.265 x.380 x 1.66

$3.99

$

In Stock, Qty 12

0

35

Cub Cadet 720-0170

Knob, 5/16-18

$11.99

$

In Stock, only 2 left!

0

36

Cub Cadet 681-0094A-4021

Chute Deflector Assembly

$129.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

38

Cub Cadet 719-04070

Shredder Screen

$48.99

$

In Stock, only 1 left!

0

39

Cub Cadet 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 726-0201

Speed Nut,.3125ID

$6.99

$

In Stock, only 2 left!

0

41

Cub Cadet 712-04064

Nut, Flange, Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 710-0599

TT Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet n/a

Engine Plate

Note: (Not used on this model)

$

$

Currently unavailable
