CS-330 T - Echo Chainsaw (SN: C09613001001 - C09613999999) Oil System Parts Diagram

Chainsaw

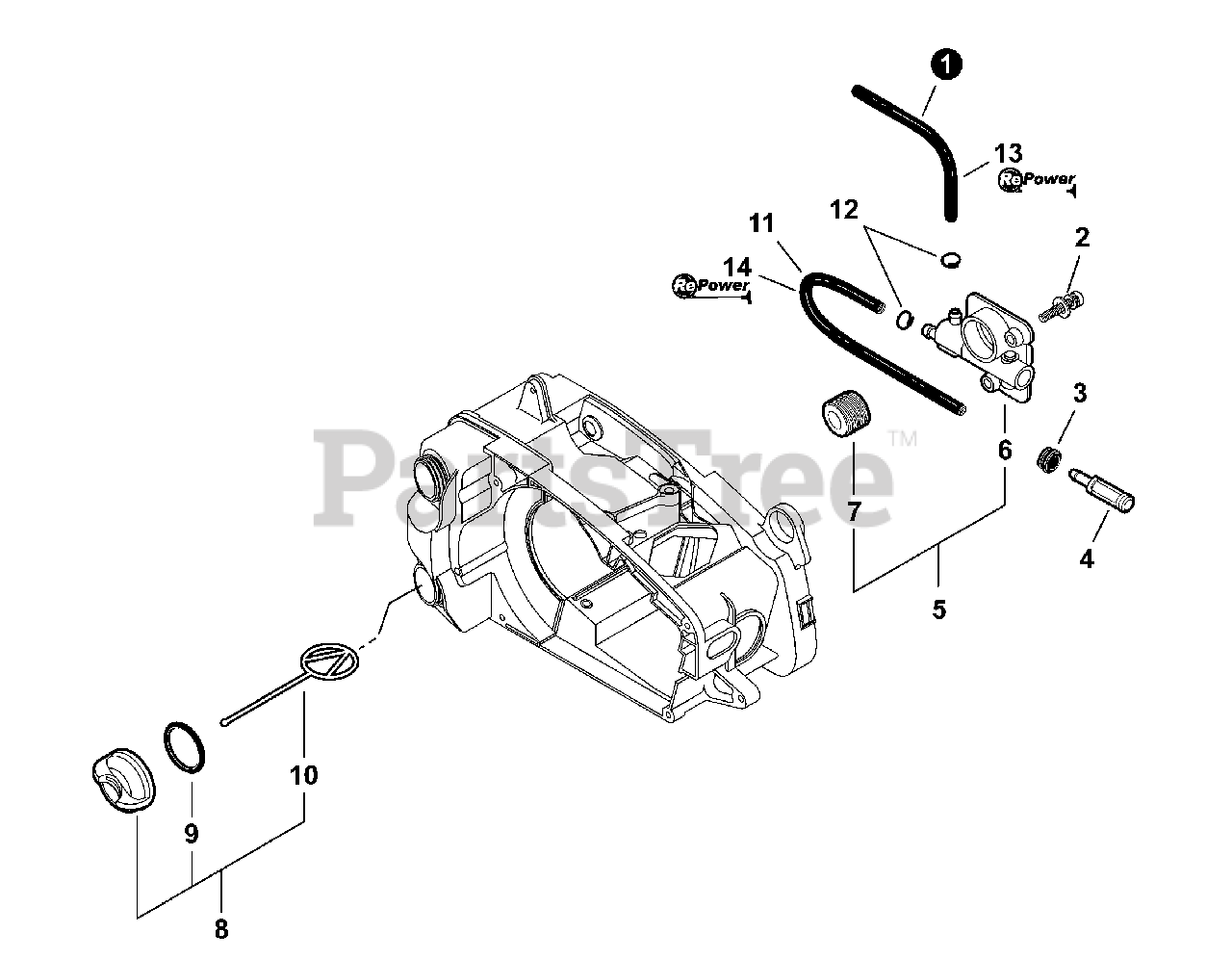

Oil System Parts Diagram

  • Title

1

Echo V471000760

PIPE 3×6×90mm
(Superseded to V471000761)

$1.49

$

In Stock, Qty 11

0

2

Echo 90023804012

SCREW 4×12

$0.99

$

In Stock, Qty 6

0

3

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

4

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

5

Echo P021001980

AUTO-OILER KIT

Note: Includes Items 6-7

$67.99

$

In Stock, only 2 left!

0

6

Echo C022000000

AUTO-OILER ASSY

$57.99

$

In Stock, Qty 7

0

7

Echo V652000010

GEAR, WORM

$11.99

$

In Stock, only 1 left!

0

8

Echo P021005581

CAP ASSY, BLACK

Note: Includes Items 9-10

$7.49

$

In Stock, Qty 20+

0

9

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

10

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

11

Echo 13011005260

PIPE 3×6×185mm BLACK
(Superseded to 13011005261)

$2.99

$

In Stock, only 2 left!

0

12

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

13

Echo 90015

PIPE, BULK - REPOWER 3×6mm BLACK

$40.99

$

In Stock, only 3 left!

0

14

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$42.99

$

In Stock, Qty 13

0
