CS-330 MX 4 - Echo Chainsaw (SN: C07311001001 - C07311999999) Chain Brake Parts Diagram

Chainsaw

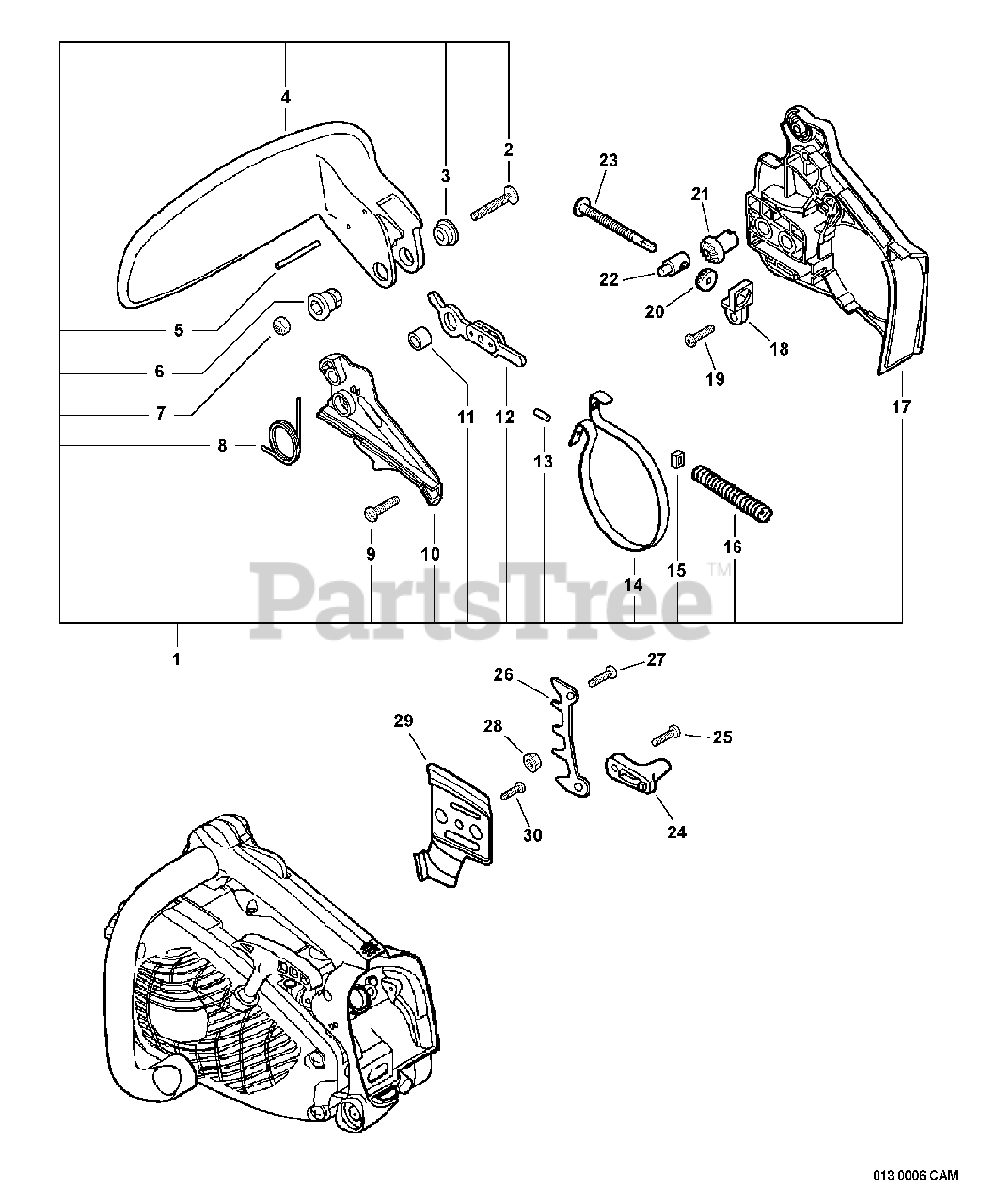

Chain Brake Parts Diagram

  • Title
1

Echo C032000340

CHAIN BRAKE ASSY

Note: INCLUDES ITEMS 2-17

$73.99

$

Usually ships in 2-4 days

0

2

Echo 9131805032

SCREW - 5X32

$0.99

$

In Stock, Qty 20+

0

3

$2.99

$

In Stock, Qty 10

0

4

Echo C320000090

LEVER, BRAKE - ORANGE

$17.99

$

Usually ships in 2-4 days

0

5

Echo 90033030260

PIN - 3X26

$0.99

$

In Stock, Qty 20+

0

6

Echo V353000060

COLLAR - 5

$2.49

$

In Stock, only 3 left!

0

7

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

8

$0.99

$

In Stock, Qty 10

0

9

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

10

Echo C345000250

COVER, BRAKE

$9.99

$

Usually ships in 2-4 days

0

11

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

12

Echo C334000070

CONNECTOR, BRAKE
(Superseded to Discontinued)

$

$

Not available

13

Echo 9305030098

PIN - SPRING

$0.99

$

In Stock, Qty 20+

0

14

Echo C328000030

BAND, BRAKE

$6.49

$

In Stock, only 4 left!

0

15

$0.99

$

In Stock, Qty 20+

0

16

$2.49

$

In Stock, only 2 left!

0

17

Echo C300000370

GUARD, SPROCKET

$28.99

$

Usually ships in 2-4 days

0

18

Echo V355000140

BRACKET, TENSIONER

$0.99

$

In Stock, Qty 20+

0

19

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

20

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

21

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

22

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

23

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 11

0

24

Echo 43302635430

CATCHER, CHAIN

$1.99

$

In Stock, Qty 18

0

25

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

26

$4.49

$

In Stock, Qty 5

0

27

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

28

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

29

Echo C305000080

PLATE, GUIDE - INNER

$6.99

$

Usually ships in 2-4 days

0

30

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0
