CS-330 MX 4 - Echo Chainsaw (SN: C04312001001 - C04312999999) Fuel System Parts Diagram

Chainsaw

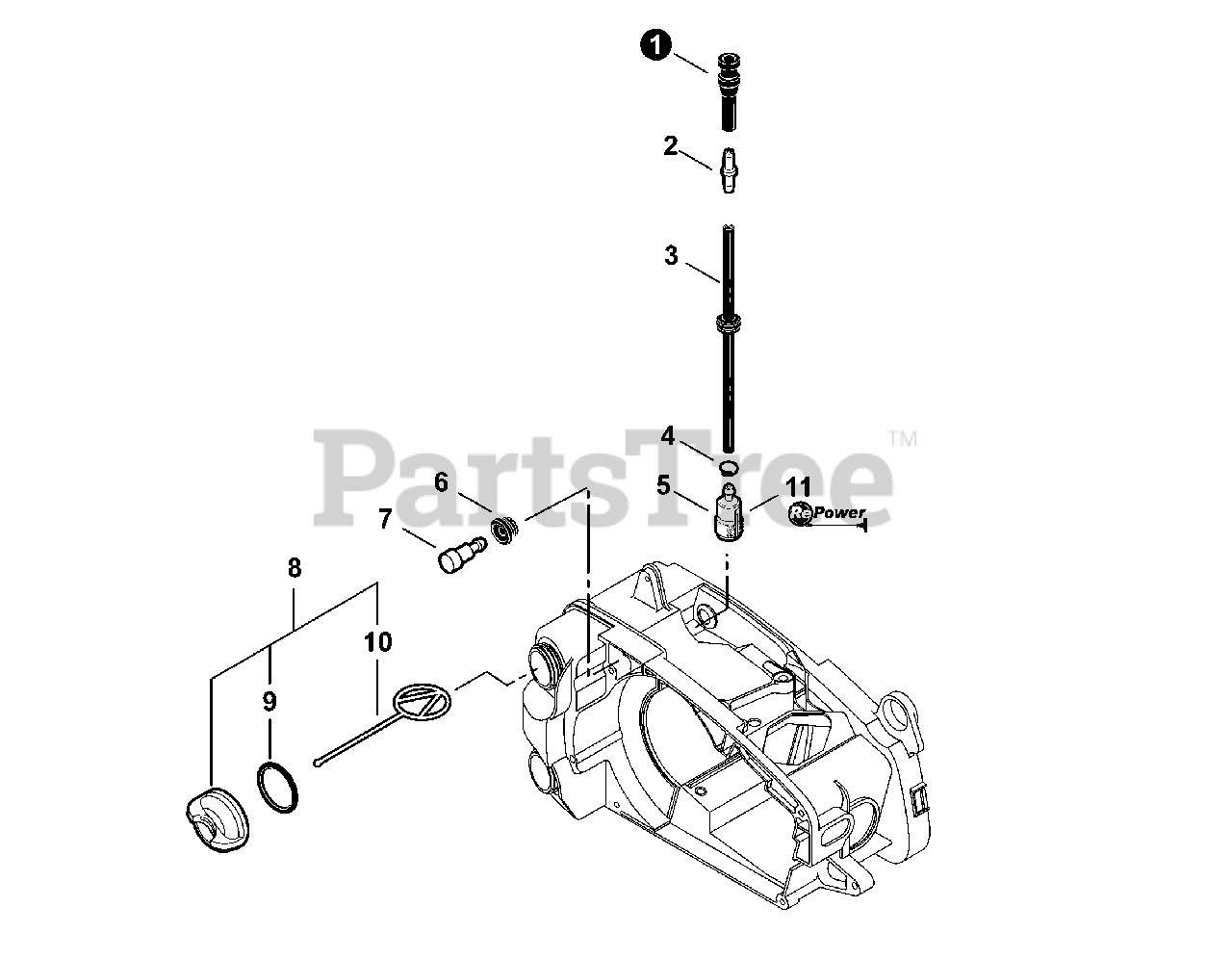

Fuel System Parts Diagram

  • Title
1

Echo V470000691

PIPE, FUEL

$2.99

$

In Stock, Qty 15

0

2

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

3

Echo V470000711

PIPE ASSY, FUEL

$9.99

$

Usually ships in 2-4 days

0

4

Echo 13201309820

CLIP 6MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

$8.99

$

In Stock, Qty 20+

0

6

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

7

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

8

Echo P021005591

CAP ASSY
(Superseded to P021005592)

Note: Includes Items 9-10

$4.49

$

In Stock, Qty 20+

0

9

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

10

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

11

Echo 90159

TUNE-UP KIT - REPOWER
(Superseded to 90159Y)

$27.99

$

In Stock, only 3 left!

0
