Echo CS-330 MX 4 - Echo Chainsaw (SN: C04312001001 - C04312999999) Chain Brake Parts Lookup with Diagrams

1

Echo C032000340

BRAKE ASSY, CHAIN

Note: Includes Items 2-17

$73.99

$

Usually ships in 2-4 days

2

Echo C320000090

LEVER, BRAKE - ORANGE

$17.99

$

Usually ships in 2-4 days

3

Echo 43316739130

COLLAR 5.3×10×13×L5

$2.99

$

In Stock, Qty 10

4

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 20+

5

Echo C300000370

GUARD, SPROCKET

$28.99

$

Usually ships in 2-4 days

6

Echo V450000070

SPRING, COMPRESSION

$2.49

$

In Stock, only 2 left!

7

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

8

Echo C328000030

BAND, BRAKE

$6.49

$

In Stock, only 4 left!

9

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

10

Echo C334000070

CONNECTOR, BRAKE

(Superseded to Discontinued) 

$

Not available 

11

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, Qty 5

12

Echo C345000250

COVER, BRAKE

$9.99

$

Usually ships in 2-4 days

13

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 12

14

Echo V452000110

SPRING, TORSION

$0.99

$

In Stock, Qty 10

15

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

16

Echo V353000060

COLLAR 5

$2.49

$

In Stock, only 3 left!

17

Echo 90033030260

PIN 3×26

$0.99

$

In Stock, Qty 20+

18

Echo C305000080

PLATE, GUIDE - INNER

$6.99

$

Usually ships in 2-4 days

19

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

20

Echo 43301903933

NUT, FLANGE 6

$1.49

$

In Stock, Qty 20+

21

Echo C304000000

SPIKE, BUMPER

$4.49

$

In Stock, Qty 5

22

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

23

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

24

Echo 43302635430

CHAIN CATCHER

$1.99

$

In Stock, Qty 18

25

Echo V203000041

BOLT 5

$5.99

$

In Stock, Qty 11

26

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

27

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

28

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

29

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 12

30

Echo V355000140

COLLAR 8

$0.99

$

In Stock, Qty 20+

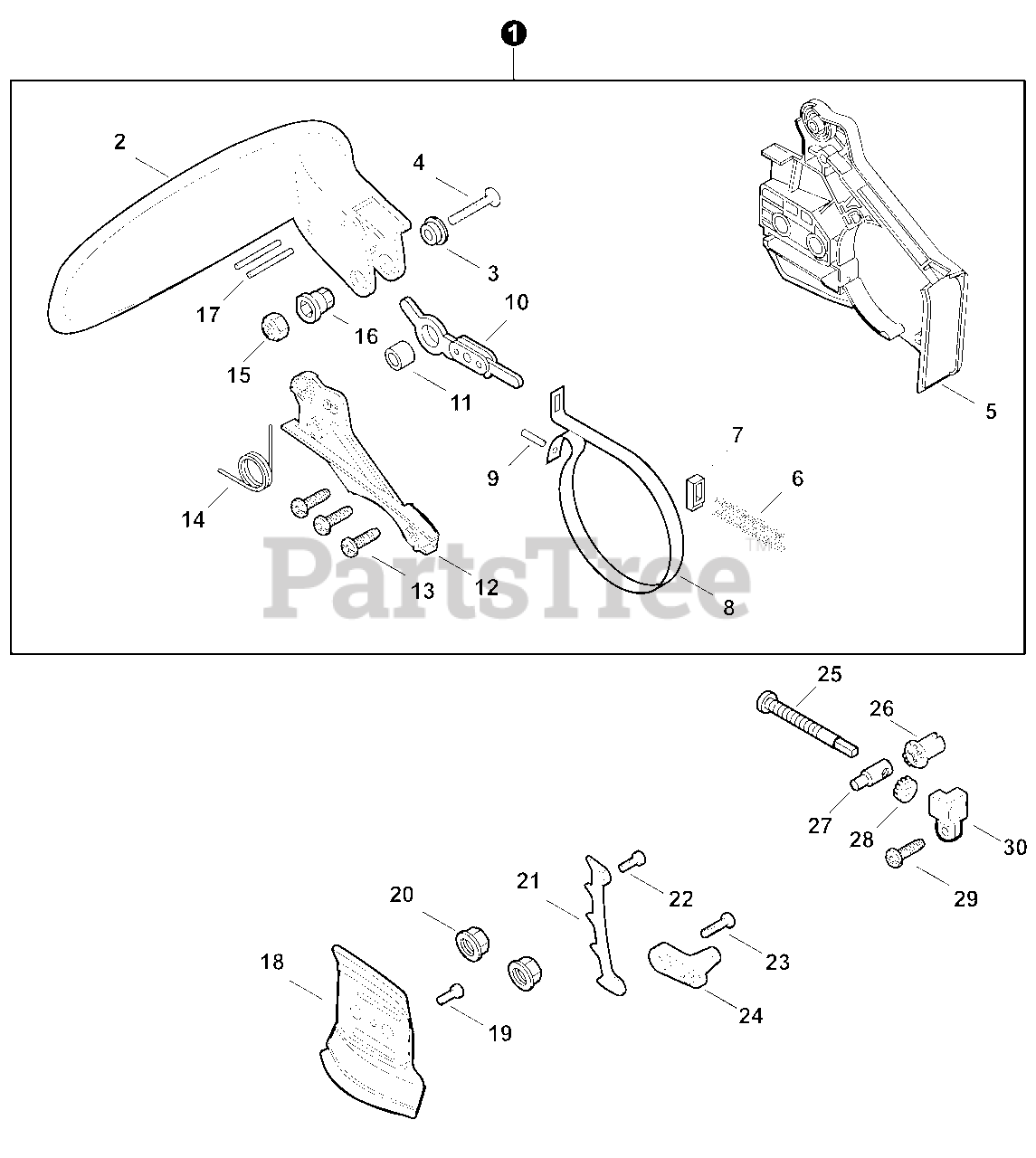

CS-330 MX 4 - Echo Chainsaw (SN: C04312001001 - C04312999999) Chain Brake Parts Diagram

Chain Brake Parts Diagram

Echo C032000340

Echo C320000090

Echo 43316739130

Echo 9131805032

Echo C300000370

Echo V450000070

Echo V376000450

Echo C328000030

Echo 9305030098

Echo C334000070

Echo 43311635430

Echo C345000250

Echo 90025304012

Echo V452000110

Echo 90056250005

Echo V353000060

Echo 90033030260

Echo C305000080

Echo 90025304010

Echo 43301903933

Echo C304000000

Echo 90025305020

Echo 90025305020

Echo 43302635430

Echo V203000041

Echo V651000001

Echo C309000030

Echo V651000011

Echo 90025304012

Echo V355000140
