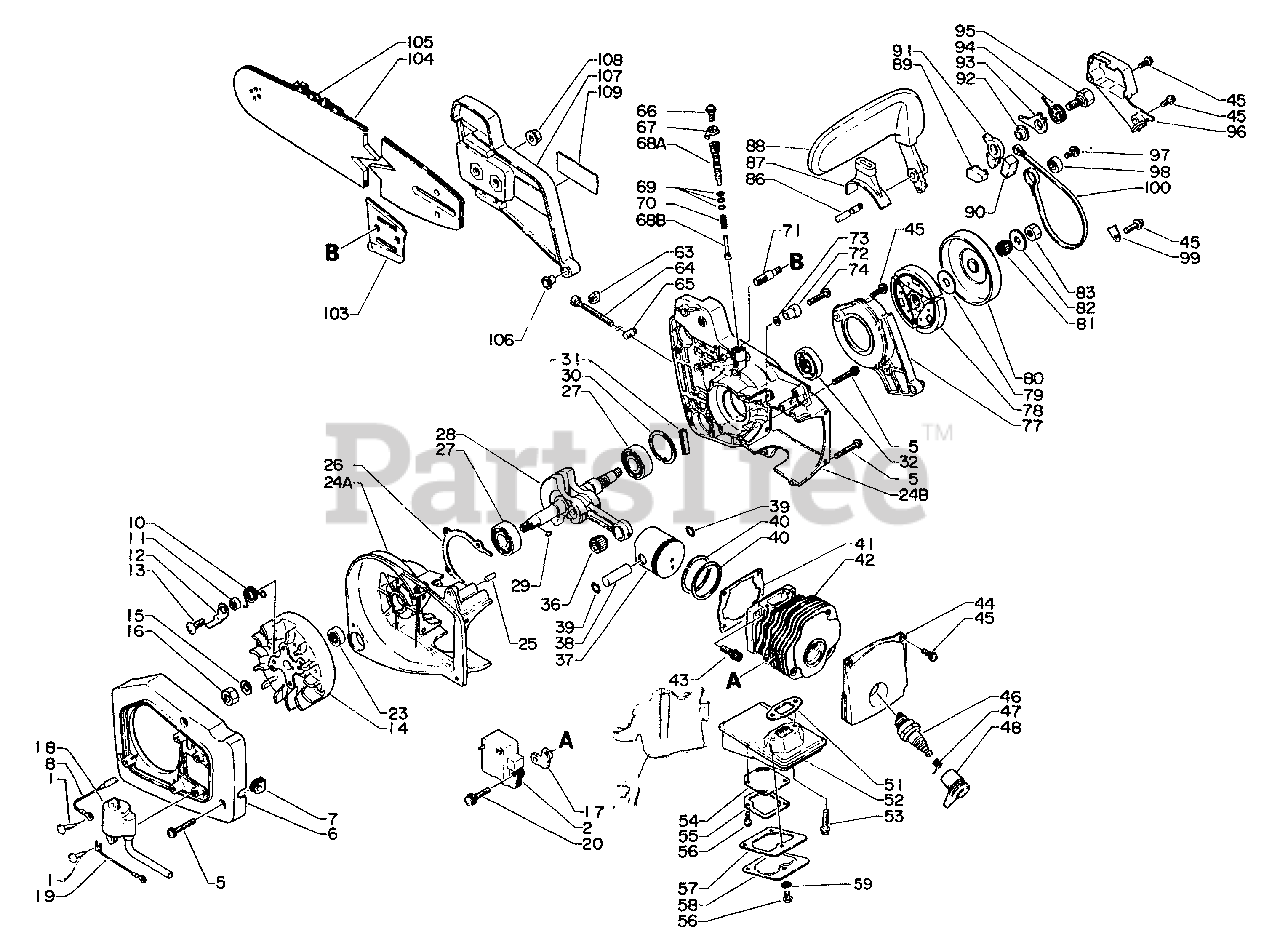

CS-330 EVL - Echo Chainsaw Engine,Exhaust,Ignition,Clutch,Drive Chain Brake,Cutting Attachment Parts Diagram

Chainsaw

Engine,Exhaust,Ignition,Clutch,Drive Chain Brake,Cutting Attachment Parts Diagram

  • Title

1

Echo 90024904016

SCREW - 4X16 -- TAPPING
(Superseded to 90025504016)

$0.99

$

In Stock, Qty 5

0

2

Echo 15660115830

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

5

Echo 90024204030

SCREW - 4X30

$0.99

$

In Stock, Qty 14

0

6

Echo 10151115830

CASE, FAN

$45.99

$

Usually ships in 2-4 days

0

7

Echo 15011001510

BUSHING
(Superseded to Discontinued)

$

$

Not available

8

Echo 15663015830

LEAD

$6.49

$

Usually ships in 2-4 days

0

10

Echo 17723403931

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

11

Echo 17724703932

SPACER

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17721815130

PAWL, STARTER

$4.99

$

Usually ships in 2-4 days

0

13

Echo 17721714530

SCREW
(Superseded to 90021605016)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 15680115830

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

15

Echo 90061100008

LOCKWASHER - 8

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

17

Echo 15261715130

SPACER

$1.49

$

Usually ships in 2-4 days

0

18

Echo 15662615830

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

19

Echo 15663515830

LEAD - GROUND

$6.49

$

Usually ships in 2-4 days

0

20

Echo 15931415130

SCREW
(Superseded to Discontinued)

$

$

Not available

23

Echo 10021211230

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

24

Echo 10020015131

CRANKCASE KIT
(Superseded to 10020015132)

$

$

Not available

24A

Echo 10020015131

CRANKCASE KIT
(Superseded to 10020015132)

Note: See Ref No. 24, Crankcase set, P/N 10020015131

$

$

Not available

24B

Echo 10020015131

CRANKCASE KIT
(Superseded to 10020015132)

Note: See Ref No. 24, Crankcase set, P/N 10020015131

$

$

Not available

25

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

26

Echo 10024215130

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

27

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

28

Echo 10010015130

CRANKSHAFT ASSY
(Superseded to 10010015131)

$338.99

$

Usually ships in 2-4 days

0

29

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

30

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

31

Echo 10027016530

INSULATOR
(Superseded to Discontinued)

$

$

Not available

32

Echo 10021303930

SEAL, OIL
(Superseded to 10021203930)

$5.49

$

In Stock, only 2 left!

0

36

Echo 10001200720

BEARING, NEEDLE
(Superseded to 10001216131)

$10.99

$

Usually ships in 2-4 days

0

37

Echo 10001015130

PISTON
(Superseded to 10000015130)

$75.99

$

Usually ships in 2-4 days

0

38

Echo 10001303930

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

39

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 10

0

40

Echo 10001113330

RING, PISTON

$7.49

$

In Stock, only 1 left!

0

41

Echo 10101015130

GASKET, CYLINDER
(Superseded to 10101015131)

$1.99

$

Usually ships in 2-4 days

0

42

Echo 10101115130

CYLINDER

$216.99

$

Usually ships in 2-4 days

0

43

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

44

Echo 10151415130

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

45

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

46

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

47

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

48

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 6

0

51

Echo 14651003930

GASKET
(Superseded to 14551003930)

$

$

Not available

52

Echo 14580515130

MUFFLER
(Superseded to 14580515131)

$

$

Not available

53

Echo 90010605035

SCREW - 5X35

$1.49

$

In Stock, Qty 18

0

54

Echo 14586215130

SCREEN, SPARK ARRESTOR

$4.49

$

Usually ships in 2-4 days

0

55

Echo 14586315130

RETAINER, SCREEN
(Superseded to Discontinued)

$

$

Not available

56

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

57

Echo 14586615130

GASKET, EXHAUST
(Superseded to 14586615131)

$

$

Not available

58

Echo 14586115130

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

59

Echo 90061000004

LOCKWASHER - 4

$0.99

$

Usually ships in 2-4 days

0

63

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 15

0

64

Echo 43301611031

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

65

Echo 43301403931

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

66

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

67

Echo 43705911133

LOCKWASHER

$2.99

$

Usually ships in 2-4 days

0

68

Echo 43700015130

AUTO-OILER ASSY
(Superseded to 43700003430)

$

$

Not available

68A

Echo 43700015130

AUTO-OILER ASSY
(Superseded to 43700003430)

$

$

Not available

68B

Echo 43700015130

AUTO-OILER ASSY
(Superseded to 43700003430)

$

$

Not available

69

Echo 43702002830

O-RING - 5

$1.99

$

Usually ships in 2-4 days

0

70

Echo 43701902830

SPRING

$1.49

$

In Stock, Qty 6

0

71

Echo 43301114530

STUD, GUIDE BAR

$2.99

$

In Stock, Qty 10

0

72

Echo 43300012830

CHAIN CATCHER KIT
(Superseded to Discontinued)

$

$

Not available

73

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

74

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, only 1 left!

0

77

Echo 17531015130

SEAL, DUST

$6.99

$

Usually ships in 2-4 days

0

78

Echo 17500003930

CLUTCH ASSY
(Superseded to 17500003931)

$63.99

$

Usually ships in 2-4 days

0

79

Echo 17501503930

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

80

Echo 17500511530

CASE, CLUTCH
(Superseded to 17500515830)

$

$

Not available

81

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

82

Echo 17501411530

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

83

Echo 10013903930

LOCKNUT - 6
(Superseded to Discontinued)

$

$

Not available

103

Echo 43301303930

PLATE, GUIDE - INNER
(Superseded to Discontinued)

$

$

Not available

104

Echo 43001115130

GUIDE BAR - 16" (40cm)

$

$

Currently unavailable

105

Echo 43101115130

SAW CHAIN - 91SG57E

$

$

Currently unavailable

106

Echo 43303014630

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

107

Echo 43300515131

GUARD, SPROCKET
(Superseded to 43300515132)

$

$

Not available

108

Echo 43301903932

NUT - 6 -- FLANGE
(Superseded to 43301903933)

$1.49

$

In Stock, Qty 20+

0

109

Echo 89002103932

LABEL - ECHO
(Superseded to 89011818331)

$

$

Not available

Echo 43310015131

CHAIN BRAKE ASSY
(Superseded to 43310015132)

Note: Includes ITEMS 45 & 86-100

$

$

Not available

45

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

86

Echo 43311312330

SCREW

$3.49

$

In Stock, only 1 left!

0

87

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

88

Echo 43310515131

HANDLE
(Superseded to 43310515132)

$41.99

$

Usually ships in 2-4 days

0

89

Echo 43314914630

RESET, BRAKE

$2.49

$

Usually ships in 2-4 days

0

90

Echo 43331312330

SEAL
(Superseded to Discontinued)

$

$

Not available

91

Echo 43311712330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

92

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

93

Echo 43311912330

STOPPER

$4.49

$

In Stock, only 4 left!

0

94

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

95

Echo 43313412330

BOLT

$6.99

$

In Stock, only 1 left!

0

96

Echo 43331015130

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

97

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

98

Echo 43314212330

ADJUSTER, BRAKE BAND

$2.49

$

In Stock, only 3 left!

0

99

Echo 43314415130

RETAINER, BRAKE BAND

$1.99

$

In Stock, only 1 left!

0

100

Echo 43312315130

BAND, BRAKE
(Superseded to Discontinued)

$

$

Not available

Echo 88020015130

SPIKE KIT
(Superseded to Discontinued)

$

$

Not available
