CS-330 EVL - Echo Chainsaw Carburetor II Parts Diagram

Chainsaw

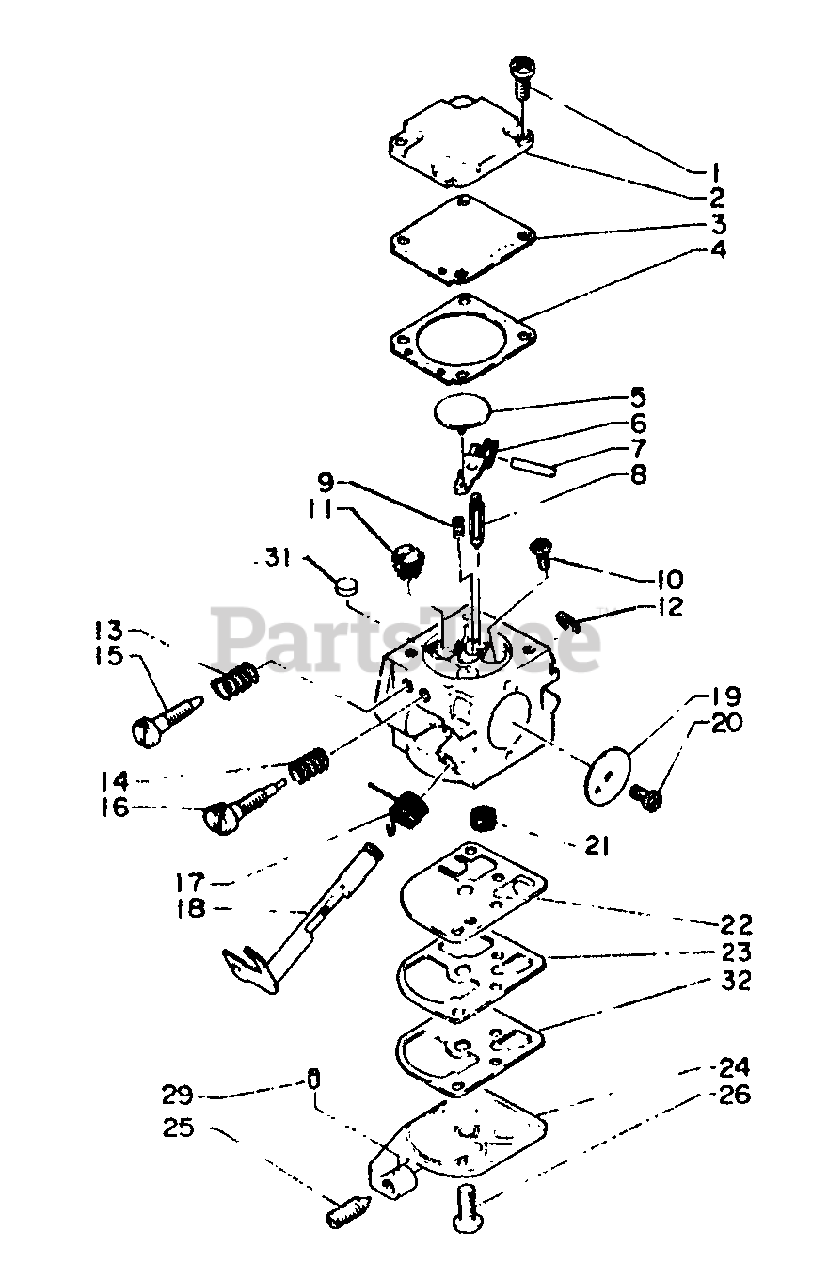

Carburetor II Parts Diagram

  • Title

Echo 12520015131

CARBURETOR C1S-K3A
(Superseded to 12520015132)

$

$

Not available

1

Echo 12534413930

SCREW
(Superseded to 12534413931)

$2.49

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

Echo 12534115130

DIAPHRAGM, METERING
(Superseded to Discontinued)

$

$

Not available

4

Echo 12534015130

GASKET, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

5

Echo 12537515130

PLUG, WELCH
(Superseded to Discontinued)

$

$

Not available

6

Echo 12532315130

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

7

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

8

Echo 12533713930

VALVE, INLET NEEDLE
(Superseded to 12533706960)

$15.99

$

Usually ships in 2-4 days

0

9

$1.49

$

Usually ships in 2-4 days

0

10

Echo 12533913930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 4 left!

0

11

Echo 12537613930

NOZZLE, CHECK VALVE

$4.49

$

Usually ships in 2-4 days

0

12

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

13

$1.49

$

Usually ships in 2-4 days

0

14

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532015130

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12531815130

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

17

Echo 12531313930

SPRING, RETURN

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12531715130

SHAFT, THROTTLE

$6.49

$

In Stock, only 1 left!

0

19

Echo 12531613930

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

20

$1.49

$

Usually ships in 2-4 days

0

21

Echo 12532613930

STRAINER
(Superseded to Discontinued)

$

$

Not available

22

Echo 12531213931

DIAPHRAGM, PUMP
(Superseded to Discontinued)

$

$

Not available

23

Echo 12532513931

GASKET, PUMP
(Superseded to Discontinued)

$

$

Not available

24

Echo 12532415130

BASE, PURGE

$7.49

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

26

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

29

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12534515130

PLUG, WELCH
(Superseded to 12530015130)

$12.99

$

Usually ships in 2-4 days

0

32

Echo 12531115130

DIAPHRAGM, SURGE
(Superseded to Discontinued)

$

$

Not available
