CS 3210 (24A-424G710) - Cub Cadet Chipper/Shredder (2009) B&S 204312-0529-B1 3 Parts Diagram

Chipper/Shredder

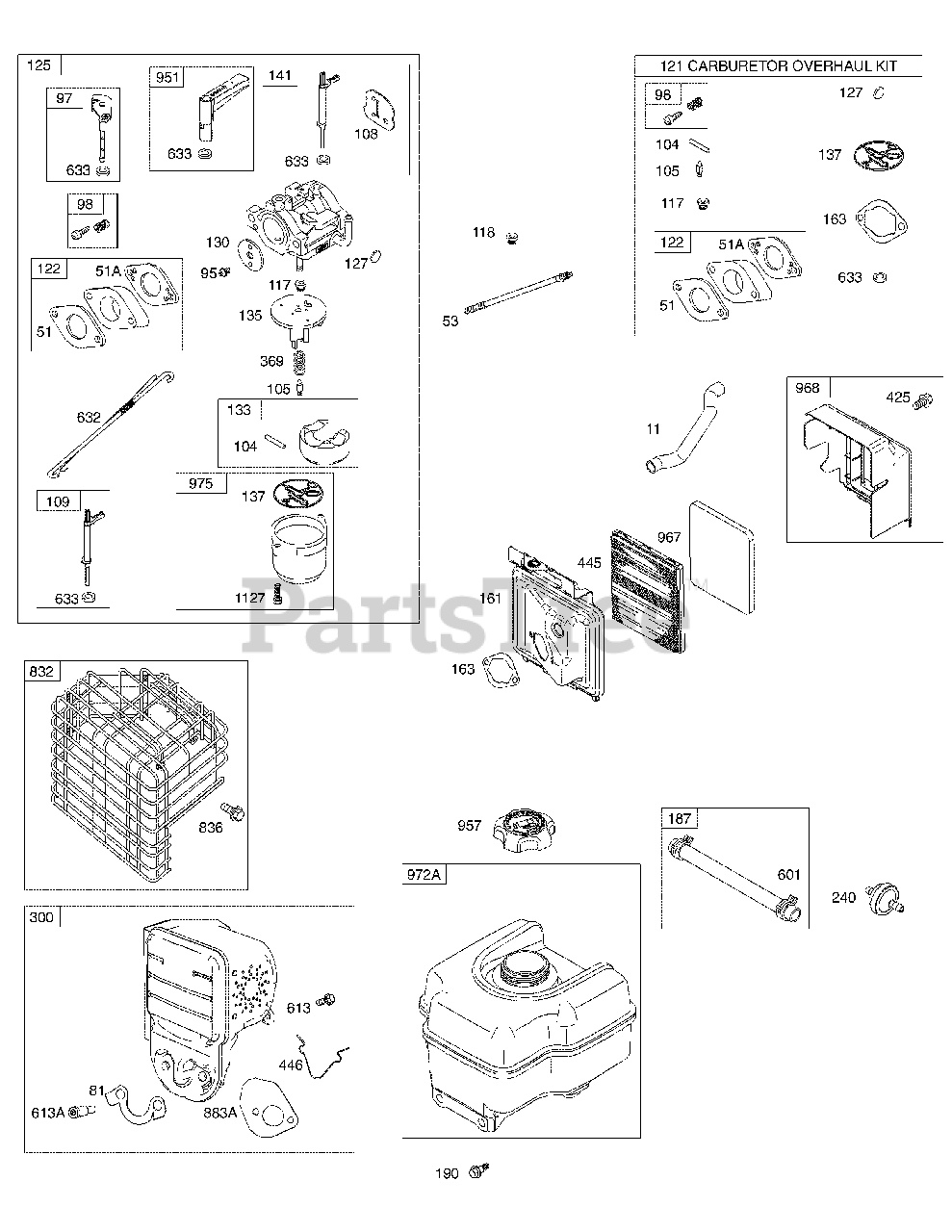

B&S 204312-0529-B1 3 Parts Diagram

  • Title

1

Cub Cadet BS-794849

Cylinder Assembly

$328.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-698340

Kit-Bushing/Seal (Magneto Side)

$22.99

$

In Stock, Qty 5

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

Note: Included In Engine Gasket Set, Ref No. 358

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-794870

Head-Cylinder
(Superseded to BS-799859)

$295.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-694872

Gasket-Cylinder Head

Note: Included In Engine Gasket Set, Ref No. 358, Included In Valve GaSket Set, Ref No. 1095

$20.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-696796

Tube-Breather

$11.99

$

In Stock, only 3 left!

0

12

Cub Cadet BS-694953

Gasket-Crankcase

Note: Included In Engine Gasket Set, Ref No. 358

$9.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-794829

Screw (Cylinder Head)

$3.99

$

In Stock, only 3 left!

0

15

Cub Cadet BS-691686

Plug-Oil Drain

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-794874

Crankshaft

$254.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-791965

Cover-Crankcase

$199.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-698340

Kit-Bushing/Seal (PTO Side)

$22.99

$

In Stock, Qty 5

0

20

Cub Cadet BS-391086S

Seal-Oil (PTO Side)

Note: Included In Engine Gasket Set, Ref No. 358

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-794825

Screw (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-794814

Flywheel

$199.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-792117

Piston Assembly (Standard)

$152.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-792144

Piston Assembly (.020" Oversize)

$132.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-793561

Ring Set (Standard)
(Superseded to BS-792026)

$45.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-792073

Ring Set (.020" Oversize)

$61.99

$

In Stock, Qty 5

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Cub Cadet BS-696581

Pin-Piston

$17.99

$

In Stock, only 2 left!

0

29

Cub Cadet BS-691691

Rod-Connecting

$3.99

$

In Stock, Qty 5

0

30

Cub Cadet BS-694692

Dipper-Connecting Rod

$6.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

In Stock, Qty 17

0

33

Cub Cadet BS-499596

Valve-Exhaust
(Superseded to BS-697576)

$43.99

$

In Stock, only 1 left!

0

34

Cub Cadet BS-792200

Valve-Intake

$25.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-694865

Spring-Valve (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Cub Cadet BS-694865

Spring-Valve (Exhaust)

$5.49

$

In Stock, only 2 left!

0

37

Cub Cadet BS-790730

Guard-Flywheel

$12.99

$

Usually ships in 2-12 days

0

42

Cub Cadet BS-499586

Keeper-Valve

$7.49

$

In Stock, Qty 18

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-790958

Camshaft

$127.99

$

Usually ships in 2-12 days

0

48

Cub Cadet N/A

Short Block

$

$

Currently unavailable

51

Cub Cadet BS-694874

Gasket-Intake

Note: Included In Engine Gasket Set, Ref No. 358, Included In Carburetor Overhaul Kit, Ref No. 121, Included In Valve GaSket Set, Ref No. 1095

$4.99

$

In Stock, only 1 left!

0

51A

Cub Cadet BS-694875

Gasket-Intake

Note: Included In Engine Gasket Set, Ref No. 358, Included In Carburetor Overhaul Kit, Ref No. 121, Included In Valve GaSket Set, Ref No. 1095

$4.49

$

In Stock, only 1 left!

0

53

Cub Cadet BS-794830

Stud (Carburetor)

$8.49

$

In Stock, only 2 left!

0

55

Cub Cadet BS-695288

Housing-Rewind Starter

$45.99

$

Usually ships in 2-12 days

0

58

Cub Cadet BS-693389

Rope-Starter

$9.49

$

In Stock, only 2 left!

0

59

Cub Cadet BS-805957

Insert-Grip

$8.49

$

In Stock, only 4 left!

0

60

Cub Cadet BS-490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 10

0

65

Cub Cadet BS-699228

Screw (Rewind Starter)

$3.99

$

In Stock, only 3 left!

0

78

Cub Cadet BS-795026

Screw (Flywheel Guard)

$3.99

$

Usually ships in 2-12 days

0

81

Cub Cadet BS-794817

Lock-Muffler Screw

$10.99

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-690718

Screw (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97

Cub Cadet BS-696387

Shaft-Throttle

$41.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-695408

Kit-Idle Speed

Note: Included In Carburetor Overhaul Kit, Ref No. 121

$13.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-694918

Pin-Float Hinge

Note: Included In Carburetor Overhaul Kit, Ref No. 121

$7.49

$

In Stock, only 2 left!

0

105

Cub Cadet BS-696136

Valve-Float Needle

Note: Included In Carburetor Overhaul Kit, Ref No. 121

$15.99

$

In Stock, Qty 20+

0

108

Cub Cadet BS-696143

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Cub Cadet N/A

Shaft-Choke

Note: Order Ref No. 141

$

$

Currently unavailable

117

Cub Cadet BS-696134

Jet-Main (Std.) (Incl O-Ring Seal)

$18.99

$

In Stock, Qty 7

0

118

Cub Cadet BS-696135

Jet-Main (High Alt.) (Incl O-Ring)

$17.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-696146

Kit-Carburetor Overhaul

$50.99

$

In Stock, Qty 6

0

122

Cub Cadet BS-694876

Spacer-Carburetor

$

$

Not available

125

Cub Cadet BS-796321

Carburetor
(Superseded to BS-591378)

$172.99

$

In Stock, Qty 20+

0

127

Cub Cadet BS-690727

Plug-Welch

Note: Included In Carburetor Overhaul Kit, Ref No. 121

$4.49

$

In Stock, only 2 left!

0

130

Cub Cadet BS-696139

Valve-Throttle

$10.99

$

In Stock, only 2 left!

0

133

Cub Cadet BS-694914

Float-Carburetor

$28.99

$

In Stock, Qty 8

0

135

Cub Cadet BS-696142

Tube-Fuel Transfer

$41.99

$

In Stock, Qty 7

0

137

Cub Cadet BS-695426

Gasket-Float Bowl

Note: Included In Carburetor Overhaul Kit, Ref No. 121

$9.49

$

In Stock, Qty 20+

0

141

Cub Cadet BS-696145

Kit-Choke Shaft

$32.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, Qty 7

0

161

Cub Cadet BS-794768

Base-Air Cleaner
(Superseded to BS-591546)

$67.99

$

In Stock, only 1 left!

0

163

Cub Cadet BS-692277

Gasket-Air Cleaner

Note: Included In Engine Gasket Set, Ref No. 358, Included In Carburetor Overhaul Kit, Ref No. 121

$6.99

$

In Stock, only 4 left!

0

187

Cub Cadet 751-10349-16

Line-Fuel (Cut To Required Length)

$19.99

$

In Stock, Qty 11

0

188

Cub Cadet BS-699479

Screw (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190

Cub Cadet BS-699220

Screw (Fuel Tank)
(Superseded to BS-597133)

$4.99

$

In Stock, Qty 6

0

192

Cub Cadet BS-690083

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

209

Cub Cadet BS-694867

Spring-Governor (Red)

$

$

Not available

211

Cub Cadet BS-695307

Spring-Governed Idle

$4.99

$

In Stock, only 1 left!

0

219

Cub Cadet BS-693578

Gear-Governor

$26.99

$

Usually ships in 2-12 days

0

220

Cub Cadet BS-691724

Washer (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

222

Cub Cadet BS-794799

Bracket-Control

$50.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-694864

Lever-Governor Control

$16.99

$

Usually ships in 2-12 days

0

240

Cub Cadet BS-298090S

Filter-Fuel

$

$

Not available

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, Qty 6

0

267

Cub Cadet BS-699492

Screw (Casing Clamp)

$3.99

$

In Stock, Qty 12

0

271

Cub Cadet BS-695381

Lever-Control

$21.99

$

Usually ships in 2-12 days

0

278

Cub Cadet BS-792008

Washer (Governor Control Lever)

$8.49

$

Usually ships in 2-12 days

0

281

Cub Cadet BS-697268

Panel-Control

$35.99

$

Usually ships in 2-12 days

0

300

Cub Cadet BS-794806

Muffler

$119.99

$

Usually ships in 2-12 days

0

304

Cub Cadet BS-791478

Housing-Blower

$90.99

$

Usually ships in 2-12 days

0

305

Cub Cadet BS-699481

Screw (Blower Housing)

$3.99

$

In Stock, only 3 left!

0

306

Cub Cadet BS-697240

Shield-Cylinder

$22.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-794822

Screw (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

332

Cub Cadet BS-794824

Nut (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Cub Cadet BS-492341

Armature-Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-699477

Screw (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-692603

Wire-Stop

$

$

Not available

356A

Cub Cadet BS-692390

Wire-Stop

$

$

Not available

356B

Cub Cadet BS-695815

Wire-Stop

$

$

Not available

356C

Cub Cadet BS-695295

Wire-Stop

$4.49

$

Usually ships in 2-12 days

0

358

Cub Cadet BS-695438

Gasket Set-Engine

$63.99

$

In Stock, only 1 left!

0

363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

369

Cub Cadet BS-695422

Spring-Float Bowl

$8.49

$

In Stock, Qty 9

0

383

Cub Cadet BS-19374S

Wrench-Spark Plug
(Superseded to BS-19576S)

$5.99

$

In Stock, only 1 left!

0

410

Cub Cadet BS-695382

Link-Control

$8.49

$

Usually ships in 2-12 days

0

415

Cub Cadet BS-691363

Plug (Cylinder)

$10.99

$

Usually ships in 2-12 days

0

425

Cub Cadet BS-794835

Screw (Air Cleaner Cover)

$3.99

$

Usually ships in 2-12 days

0

445

Cub Cadet BS-491588S

Filter-Air Cleaner Cartridge

$6.49

$

In Stock, Qty 20+

0

446

Cub Cadet BS-794941

Spring-Retainer

$20.99

$

Usually ships in 2-12 days

0

455

Cub Cadet BS-794867

Cup-Flywheel

$11.99

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-692299

Plate-Pawl Friction

$4.99

$

In Stock, only 3 left!

0

459

Cub Cadet BS-281505S

Pawl-Ratchet

$3.49

$

In Stock, Qty 9

0

493

Cub Cadet BS-691177

Bracket-Mounting

$24.99

$

Usually ships in 2-12 days

0

504

Cub Cadet BS-695383

Washer Set-Friction

$10.99

$

Usually ships in 2-12 days

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

529

Cub Cadet BS-791822

Grommet (Cylinder)

$7.99

$

In Stock, only 1 left!

0

552

Cub Cadet BS-694674

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

562

Cub Cadet BS-793216

Bolt (Governor Control Lever)

$6.49

$

Usually ships in 2-12 days

0

592

Cub Cadet 712-0349

Nut (Rewind Starter)

$4.99

$

In Stock, Qty 5

0

597

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

601

Cub Cadet BS-791850

Hose-Clamp

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-695287

Starter-Rewind

$72.99

$

In Stock, Qty 7

0

613

Cub Cadet BS-794846

Screw (Muffler)

$4.99

$

Usually ships in 2-12 days

0

613A

Cub Cadet BS-794848

Screw (Muffler)

$16.99

$

Usually ships in 2-12 days

0

615

Cub Cadet BS-694676

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Cub Cadet BS-795758

Crank-Governor

$15.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

Cub Cadet BS-695917

Spring/Link-Mechanical Governor

$

$

Not available

633

Cub Cadet BS-690998

Seal-Choke/Throttle Shaft

$7.99

$

In Stock, only 2 left!

0

635

Cub Cadet BS-691909

Boot-Spark Plug

$4.99

$

In Stock, Qty 5

0

663

Cub Cadet BS-699492

Screw (Control Panel)

$3.99

$

In Stock, Qty 12

0

663A

Cub Cadet BS-795026

Screw (Control Panel)

$3.99

$

Usually ships in 2-12 days

0

668

Cub Cadet BS-694257

Spacer (Control Bracket)

$4.99

$

In Stock, only 1 left!

0

689

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, only 2 left!

0

718

Cub Cadet BS-690959

Pin-Locating (Cylinder)

$6.99

$

In Stock, only 1 left!

0

718A

Cub Cadet BS-695178

Pin-Locating (Cylinder Head)

$6.99

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-691288

Gear-Timing

$21.99

$

Usually ships in 2-12 days

0

742

Cub Cadet BS-692564

Retainer-E Ring

$4.49

$

In Stock, only 2 left!

0

746

Cub Cadet BS-694679

Gear-Idler

$18.99

$

Usually ships in 2-12 days

0

773

Cub Cadet BS-694258

Retainer

$4.49

$

In Stock, only 1 left!

0

774

Cub Cadet BS-695447

Screw (Stop Wire)

$3.99

$

Usually ships in 2-12 days

0

798

Cub Cadet BS-697890

Screw (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

832

Cub Cadet BS-795035

Guard-Muffler

$57.99

$

Usually ships in 2-12 days

0

836

Cub Cadet BS-794845

Screw (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

836A

Cub Cadet BS-710023

Screw (Muffler Guard)

$3.99

$

In Stock, Qty 14

0

Cub Cadet BS-204332-0536

Engine Replacement
(Superseded to BS-20T232-0036)

$1503.99

$

Usually ships in 3-6 days

0
