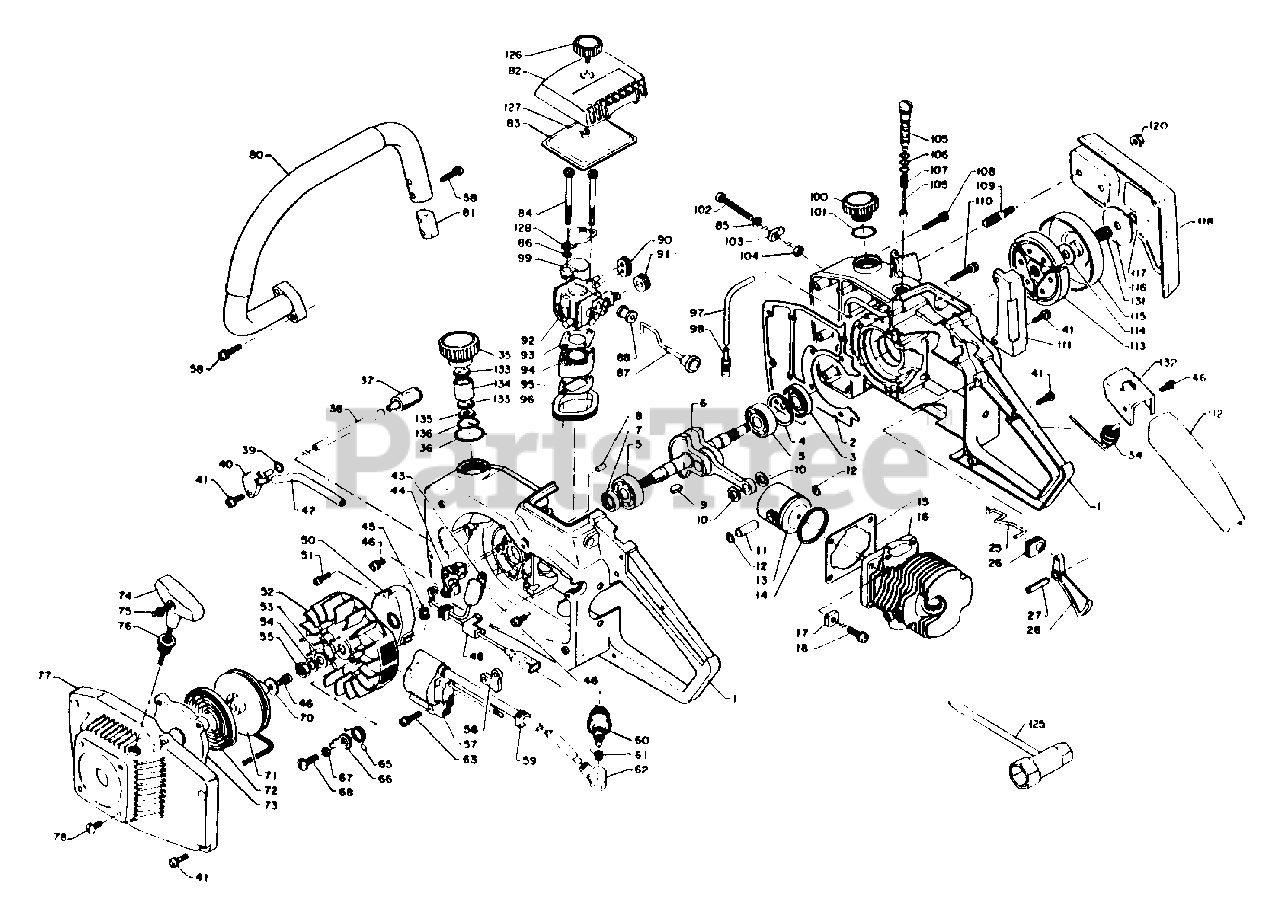

CS-315 - Echo Chainsaw (SN: 058001 - 090010) Unit Complete Parts Diagram

Chainsaw

Unit Complete Parts Diagram

  • Title

1

Echo 10020011233

CRANKCASE KIT
(Superseded to 10020011234)

$

$

Not available

2

Echo 10024211230

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

3

Echo 10021303930

SEAL, OIL
(Superseded to 10021203930)

$5.49

$

In Stock, only 2 left!

0

4

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

5

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

6

Echo 10010011231

CRANKSHAFT ASSY
(Superseded to 99010000011)

$

$

Not available

7

Echo 10021211230

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

8

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

9

Echo 10013101620

KEY

$2.99

$

Usually ships in 2-4 days

0

10

Echo 10001411230

SPACER, PISTON
(Superseded to Discontinued)

$

$

Not available

11

Echo 10001311230

PIN, PISTON
(Superseded to 10001313930)

$7.49

$

Usually ships in 2-4 days

0

12

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

13

Echo 10001011231

PISTON
(Superseded to Discontinued)

$

$

Not available

14

Echo 10001111230

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

15

Echo 10101011230

GASKET, CYLINDER

$1.49

$

In Stock, only 1 left!

0

16

Echo 10101111231

CYLINDER
(Superseded to Discontinued)

$

$

Not available

17

Echo 10021611230

NUT
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

25

Echo 17801111230

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

26

Echo 17821011230

GROMMET
(Superseded to Discontinued)

$

$

Not available

27

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

28

Echo 17801011230

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

34

Echo 16340011231

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

35

Echo 13100103931

CAP ASSY
(Superseded to 13160003932)

$22.99

$

Usually ships in 2-4 days

0

133

Echo 13103103930

SPACER
(Superseded to 13103103430)

$3.49

$

Usually ships in 2-4 days

0

134

Echo 13103003930

SPACER

$2.49

$

In Stock, only 1 left!

0

135

Echo 13103503431

FILTER
(Superseded to Discontinued)

$

$

Not available

136

Echo 13103203930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

36

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 10

0

37

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 20+

0

38

Echo 13201012930

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

39

Echo 90072000007

O-RING - 7

$0.99

$

In Stock, only 1 left!

0

40

Echo 13201111230

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

41

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

42

Echo 13201211230

PIPE, FUEL - OUTER
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

43

Echo 15610411230

CONDENSER
(Superseded to Discontinued)

$

$

Not available

44

Echo 15610111230

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

45

Echo 15613404630

PAD, OIL

$2.49

$

Usually ships in 2-4 days

0

46

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

48

Echo 15911211230

CLAMP
(Superseded to Discontinued)

$

$

Not available

50

Echo 15612811231

COVER, BREAKER
(Superseded to Discontinued)

$

$

Not available

51

Echo 90024003016

SCREW - 3X16
(Superseded to 90024203016)

$

$

Not available

52

Echo 15620511230

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

53

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

54

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

55

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

56

Echo 15011703930

SPACER
(Superseded to 15011713730)

$2.99

$

Usually ships in 2-4 days

0

57

Echo 15610811230

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

58

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

59

Echo 15011003930

BUSHING
(Superseded to Discontinued)

$

$

Not available

60

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

61

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 13

0

62

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

63

Echo 15931412330

SCREW

$0.99

$

Usually ships in 2-4 days

0

65

Echo 17723403931

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

66

Echo 17721811230

PAWL, STARTER
(Superseded to 17721803930)

$

$

Not available

67

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0

68

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0

Echo 17720011231

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

46

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

70

Echo 17721403930

WASHER

$0.99

$

In Stock, Qty 10

0

71

Echo 17720611230

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

72

Echo 17722011230

SPRING, REWIND
(Superseded to Discontinued)

$

$

Not available

73

Echo 17720811230

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

74

Echo 17722811130

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

75

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 7

0

76

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

77

Echo 10151111231

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

78

Echo 17725111230

SCREW
(Superseded to Discontinued)

$

$

Not available

80

Echo 35120511230

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

81

Echo 35121111230

INSERT
(Superseded to Discontinued)

$

$

Not available

82

Echo 13031311231

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

83

Echo 13031011231

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

84

Echo 90016205055

SCREW - 5X55

$2.49

$

Usually ships in 2-4 days

0

85

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

86

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

87

Echo 17851011230

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

88

Echo 17881011231

GROMMET

$1.49

$

Usually ships in 2-4 days

0

90

Echo 12901003930

GROMMET

$1.49

$

In Stock, only 1 left!

0

91

Echo 12902311130

GROMMET

$1.49

$

Usually ships in 2-4 days

0

92

Echo 12300011231

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

93

Echo 13001611230

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

94

Echo 13001711230

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

95

Echo 13001011230

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

96

Echo 13001211230

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

97

Echo 43721011230

PIPE - OIL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

98

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

99

Echo 17851511231

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

Echo 43600111130

CAP ASSY
(Superseded to 43600213530)

$7.99

$

Usually ships in 2-4 days

0

100

Echo 43600711130

CAP, OIL TANK
(Superseded to 43600213530)

$7.99

$

Usually ships in 2-4 days

0

101

Echo 90072000016

O-RING - 16

$1.49

$

In Stock, Qty 11

0

102

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 12

0

103

Echo 43301411230

TENSIONER, CHAIN
(Superseded to 43301403932)

$4.99

$

In Stock, Qty 20+

0

104

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

Usually ships in 2-4 days

0

105

Echo 43700211230

AUTO-OILER ASSY
(Superseded to 43700013930)

$

$

Not available

106

Echo 43702002830

O-RING - 5

$1.99

$

Usually ships in 2-4 days

0

107

Echo 43701902830

SPRING

$1.49

$

In Stock, Qty 6

0

108

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

109

Echo 43301111233

STUD, GUIDE BAR
(Superseded to 43301111234)

$

$

Not available

110

Echo 10024411231

SCREW - 4X25
(Superseded to Discontinued)

$

$

Not available

111

Echo 10061811230

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

112

Echo 35101211231

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

113

Echo 17500003930

CLUTCH ASSY
(Superseded to 17500003931)

$63.99

$

Usually ships in 2-4 days

0

114

Echo 17501503930

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

115

Echo 17500511530

CASE, CLUTCH
(Superseded to 17500515830)

$

$

Not available

116

Echo 17501411232

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

117

Echo 10013011230

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

118

Echo 43301011231

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

120

Echo 43301903930

NUT - FLANGE
(Superseded to 43301903931)

$1.49

$

In Stock, Qty 20+

0

125

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

126

Echo 13040603930

THUMBSCREW
(Superseded to 13040614330)

$

$

Not available

127

Echo 90070000003

RING, RETAINING - 3

$0.99

$

In Stock, Qty 6

0

128

Echo 13040511230

BRACKET, AIR CLEANER
(Superseded to Discontinued)

$

$

Not available

131

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

132

Echo 16381011230

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available
