CS-310 - Echo Chainsaw (SN: C95312001001 - C95312999999) Fuel System Parts Diagram

Chainsaw

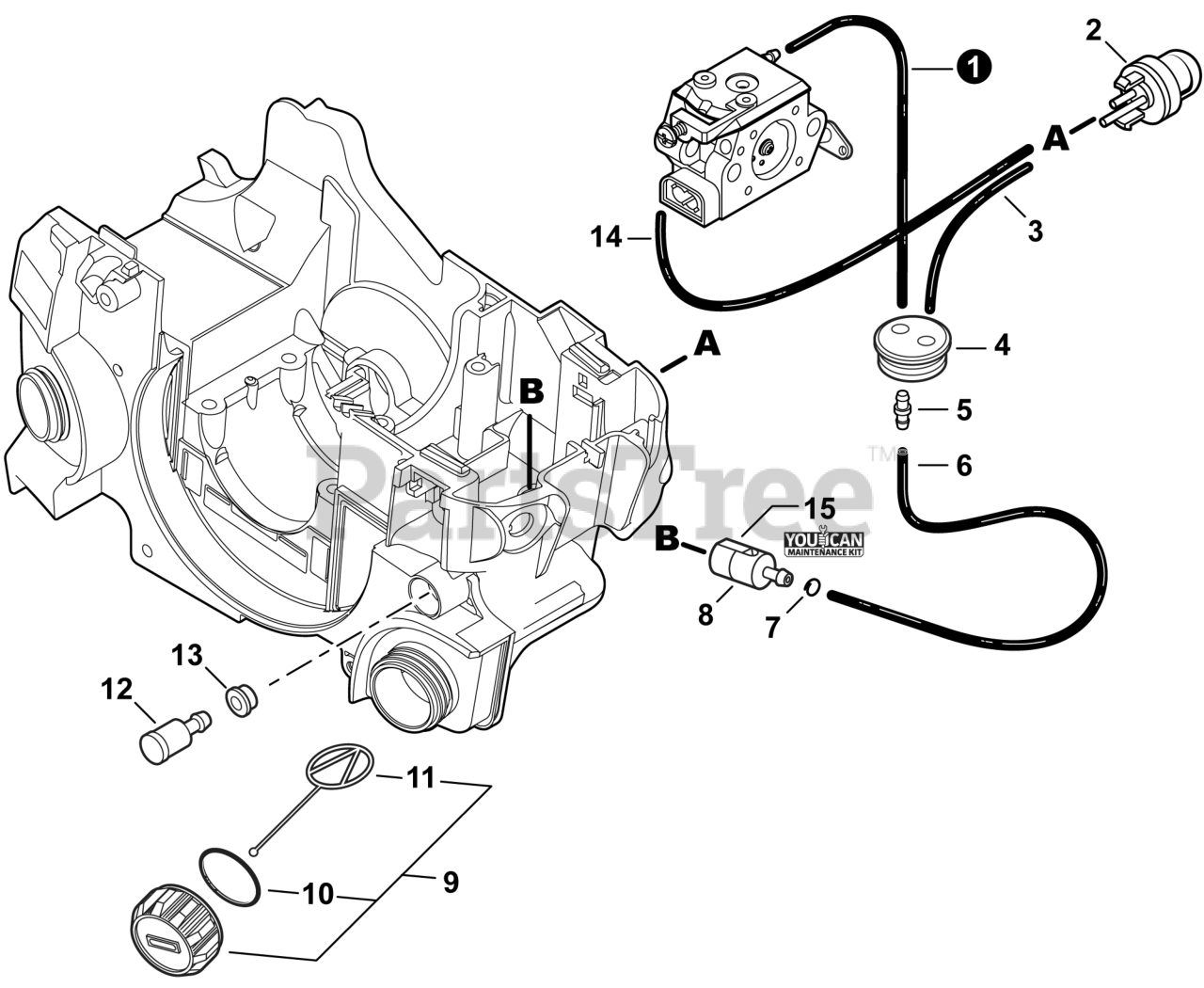

Fuel System Parts Diagram

  • Title

1

Echo V471003872

PIPE, FUEL 3x5x85 BLACK

$2.49

$

In Stock, Qty 17

0

2

Echo 12318139130

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

3

Echo V471001561

PIPE, FUEL 2.4x5x80 BLACK

$1.99

$

In Stock, Qty 17

0

4

Echo 13211544331

GROMMET, FUEL

$1.99

$

In Stock, Qty 20+

0

5

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 7

0

6

Echo V471003881

PIPE, FUEL 3x5x144 BLACK

$1.49

$

In Stock, Qty 18

0

7

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

8

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

9

Echo P021037920

CAP ASSY, FUEL

Note: Includes Items 10-11

$10.99

$

In Stock, Qty 20+

0

10

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 9

0

11

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

13

Echo V137000001

GROMMET, FUEL

$1.49

$

In Stock, Qty 8

0

14

Echo V471002191

PIPE 2.4x5x125 BLACK

$4.49

$

In Stock, Qty 10

0

15

Echo 90121Y

TUNE-UP KIT - YOUCANT

$33.99

$

In Stock, Qty 16

0
