CS-310 - Echo Chainsaw (SN: C80829001001 - C80829999999) Fuel System Parts Diagram

Chainsaw

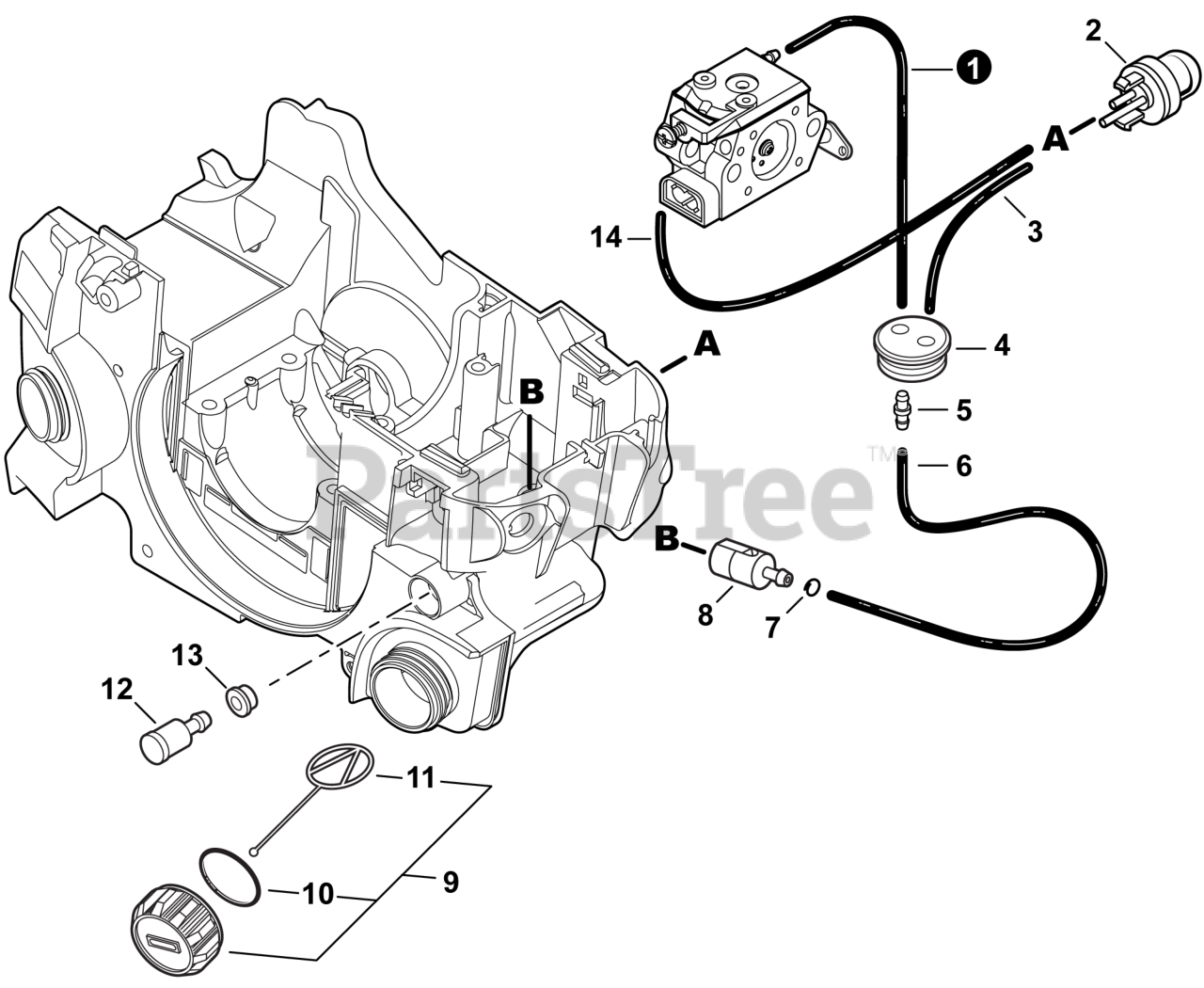

Fuel System Parts Diagram

  • Title

1

Echo V471003872

PIPE, FUEL 3×5×85 BLACK

$2.49

$

In Stock, only 1 left!

0

2

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

3

Echo V471001561

PIPE, FUEL 2.4×5×80 BLACK

$1.99

$

In Stock, only 3 left!

0

4

Echo 13211544331

GROMMET, FUEL

$1.99

$

In Stock, Qty 20+

0

5

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

6

Echo V471003881

PIPE, FUEL 3×5×144 BLACK

$1.49

$

In Stock, only 4 left!

0

7

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

8

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

9

Echo P021037920

CAP ASSY, FUEL

Note: Includes Items 10-11

$10.99

$

In Stock, Qty 20+

0

10

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 9

0

11

Echo A365000050

FUEL CAP CONNECTOR (L=60MM)

$2.49

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

13

Echo V137000001

GROMMET, FUEL

$1.49

$

In Stock, only 2 left!

0

14

Echo V471002191

PIPE 2.4×5×125 BLACK

$4.49

$

In Stock, only 1 left!

0
