CS-310 - Echo Chainsaw (SN: C80829001001 - C80829999999) Carburetor Parts Diagram

Chainsaw

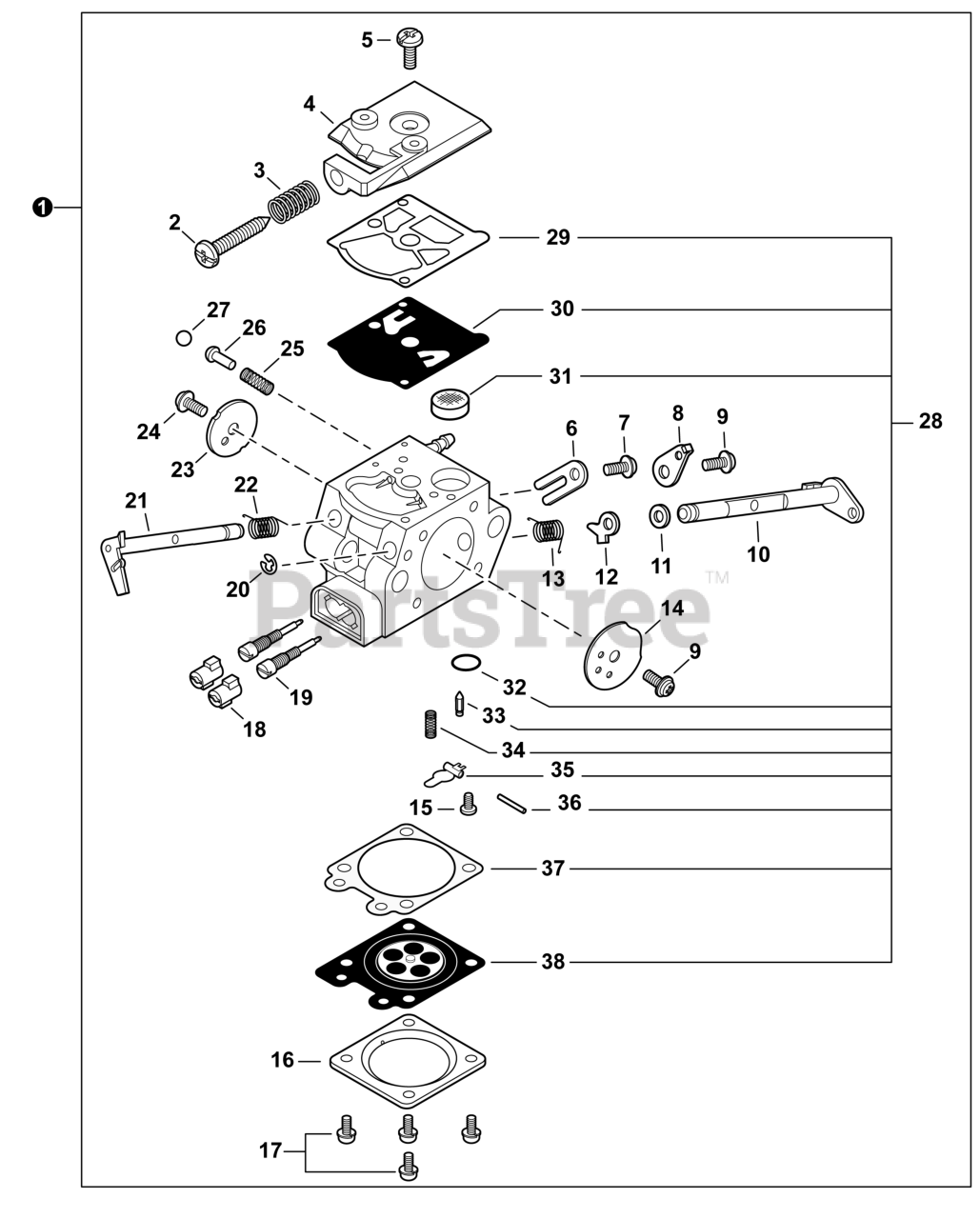

Carburetor Parts Diagram

  • Title
1

Echo A021004360

CARBURETOR - WT-1089

Note: Includes Items 2-38

$66.99

$

In Stock, only 2 left!

0

2

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

3

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 15

0

4

Echo 12312409520

COVER, PUMP

$11.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, only 1 left!

0

6

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

7

$1.49

$

Usually ships in 2-4 days

0

8

Echo P003001040

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

10

Echo P003000150

SHAFT, CHOKE

$8.99

$

In Stock, only 1 left!

0

11

$0.99

$

In Stock, only 1 left!

0

12

Echo P003001510

LEVER, FAST IDLE
(Superseded to Discontinued)

$

$

Not available

13

$8.49

$

Usually ships in 2-4 days

0

14

Echo P003002250

VALVE, CHOKE

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

16

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

17

$1.99

$

Usually ships in 2-4 days

0

18

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

19

Echo 12312003661

NEEDLE, MIXTURE

$3.99

$

Usually ships in 2-4 days

0

20

$0.99

$

In Stock, only 2 left!

0

21

Echo P003002240

SHAFT ASSY, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

22

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

23

Echo 12311605960

VALVE, THROTTLE

$1.49

$

In Stock, only 1 left!

0

24

$0.99

$

In Stock, only 2 left!

0

25

Echo 12318609660

SPRING, START VALVE

$0.99

$

Usually ships in 2-4 days

0

26

Echo 12318509660

PISTON ASSY

$2.49

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

28

Echo P033000020

REPAIR KIT, CARBURETOR

Note: Includes Items 29-38

$8.49

$

In Stock, only 3 left!

0

29

Echo 12312515030

GASKET, FUEL PUMP

$2.49

$

In Stock, Qty 9

0

30

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 2 left!

0

31

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 17

0

32

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

33

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

34

Echo 12312203660

SPRING, METERING LEVER

$1.49

$

Usually ships in 2-4 days

0

35

Echo 12312338330

LEVER, METERING

$6.49

$

In Stock, only 1 left!

0

36

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

37

Echo 12314003930

GASKET, METERING DIAPHRAGM

$1.99

$

In Stock, Qty 5

0

38

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0
