CS-310 - Echo Chainsaw (SN: C04511001001 - C04511999999) Fuel System S/N: C04511026501 - C04511999999 Parts Diagram

Chainsaw

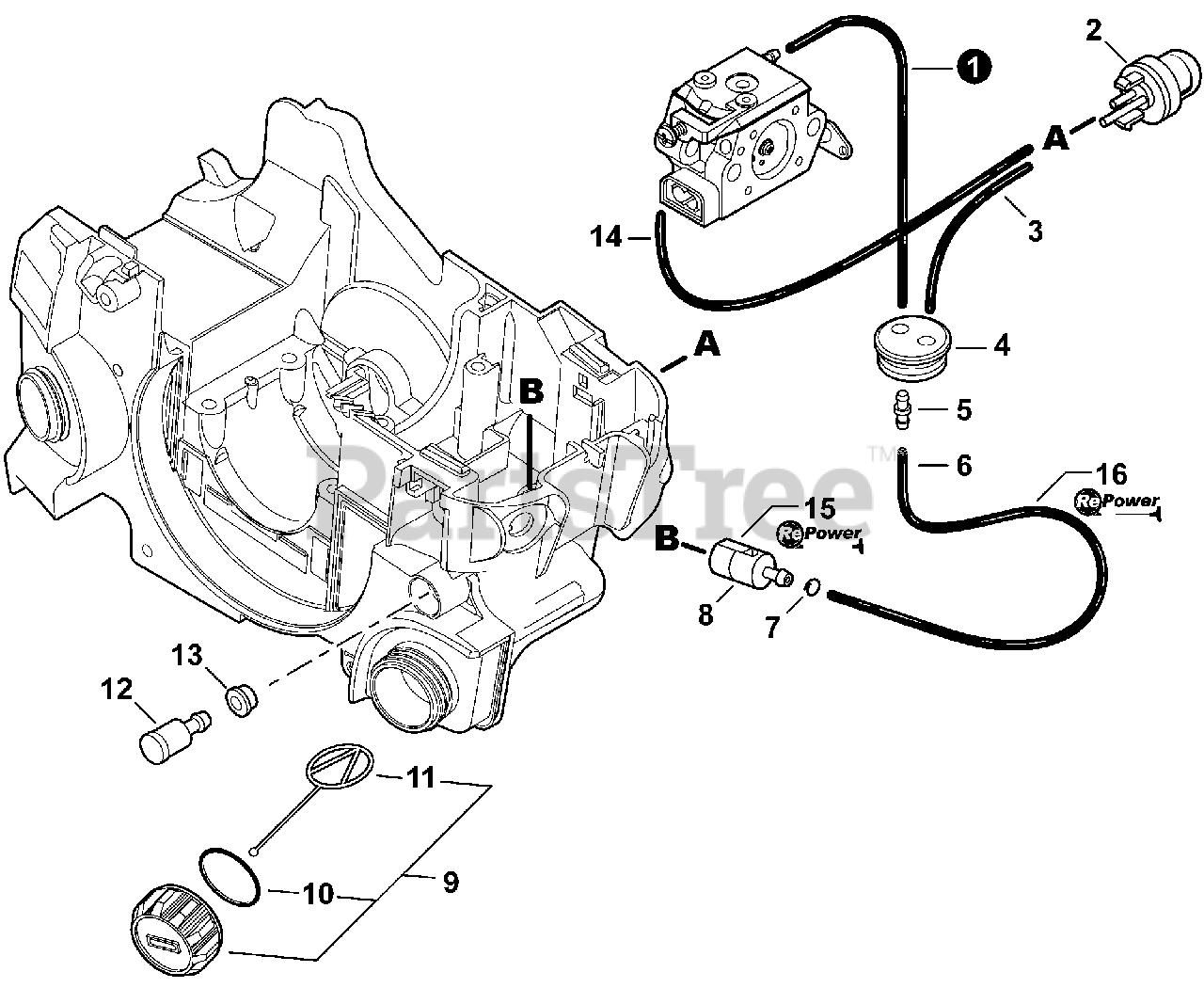

Fuel System S/N: C04511026501 - C04511999999 Parts Diagram

  • Title
1

Echo V471003871

PIPE, FUEL 3×5×85 BLACK
(Superseded to V471003872)

$2.49

$

In Stock, only 2 left!

0

2

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

3

Echo V471001560

PIPE, FUEL RETURN 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, only 4 left!

0

4

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

5

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, only 2 left!

0

6

Echo V471003880

PIPE, FUEL 3×5×144 BLACK
(Superseded to V471003881)

$1.49

$

In Stock, Qty 5

0

7

$0.99

$

In Stock, Qty 15

0

8

Echo A369000420

FILTER, FUEL

$8.99

$

In Stock, only 4 left!

0

9

Echo P021037920

CAP ASSY, FUEL

Note: Includes ITEMS 10-11

$10.99

$

In Stock, Qty 20+

0

10

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 9

0

11

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

13

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 1 left!

0

14

Echo V471002190

PIPE 2.4×5×125 BLACK
(Superseded to V471002191)

$4.49

$

In Stock, only 1 left!

0

15

Echo 90121

TUNE-UP KIT - REPOWER
(Superseded to 90121Y)

$33.99

$

In Stock, only 1 left!

0

16

Echo 90014

PIPE, FUEL - REPOWER BULK 3×5mm BLACK

$42.99

$

In Stock, Qty 19

0
