CS-310 - Echo Chainsaw (SN: C04511001001 - C04511999999) Fuel System S/N: C04511001001 - C04511026500 Parts Diagram

Chainsaw

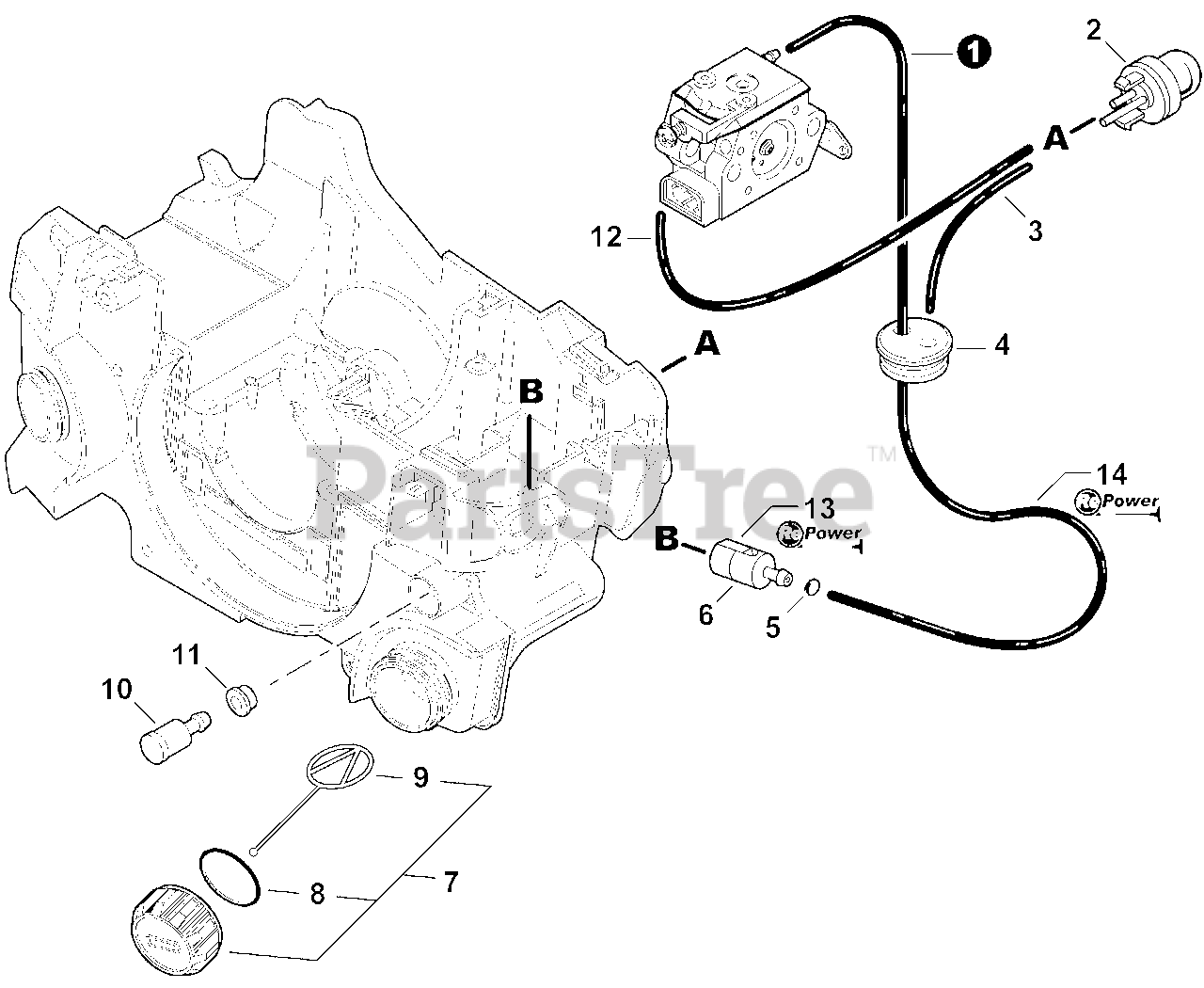

Fuel System S/N: C04511001001 - C04511026500 Parts Diagram

  • Title
1

Echo V471002170

PIPE, FUEL 3×5×230 BLACK

$4.49

$

In Stock, only 2 left!

0

2

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

3

Echo V471001560

PIPE, FUEL RETURN 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, only 3 left!

0

4

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

5

Echo 13201309820

CLIP 6MM

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120514930

FILTER, FUEL
(Superseded to 13120514931)

$8.99

$

In Stock, Qty 20+

0

7

Echo 13100437932

CAP ASSY, FUEL
(Superseded to 13100437933)

Note: Includes ITEMS 8-9

$10.99

$

In Stock, Qty 20+

0

8

Echo 90072000022

O-RING 22

$1.99

$

In Stock, Qty 10

0

9

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

10

Echo A356000030

VENT ASSY
(Superseded to A356000031)

$7.99

$

In Stock, Qty 20+

0

11

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

12

Echo V471002190

PIPE 2.4×5×125 BLACK
(Superseded to V471002191)

$4.49

$

In Stock, only 1 left!

0

13

Echo 90121

TUNE-UP KIT - REPOWER
(Superseded to 90121Y)

$33.99

$

Usually ships in 2-4 days

0

14

Echo 90014

PIPE, FUEL - REPOWER BULK 3×5mm BLACK

$42.99

$

In Stock, Qty 13

0
