CS-306 - Echo Chainsaw (SN: 04001001 - 04999999) Intake Parts Diagram

Chainsaw

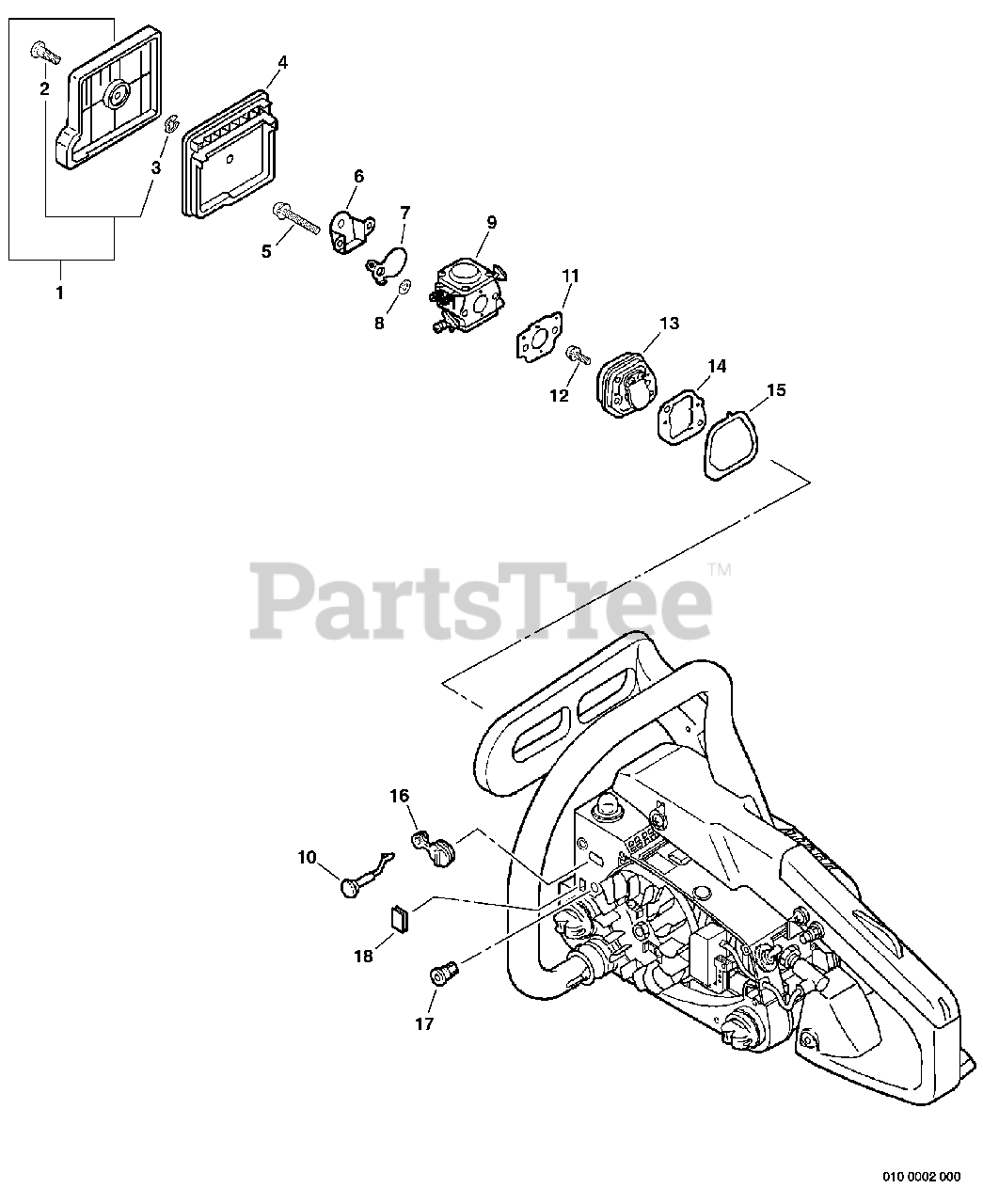

Intake Parts Diagram

  • Title

1

Echo 13030239136

AIR FILTER COVER ASSY

Note: INCLUDES ITEMS 2-3

$18.99

$

In Stock, Qty 7

0

2

Echo 13040613933

THUMBSCREW

Note: INCLUDES ITEMS 3

$4.49

$

In Stock, Qty 10

0

3

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031039132

FILTER, AIR

$11.99

$

In Stock, Qty 14

0

5

Echo 90023805045

SCREW - 5X45

$0.99

$

In Stock, Qty 6

0

6

Echo 12901139130

PLATE, PREVENT

$5.49

$

In Stock, only 1 left!

0

7

Echo 17851539130

SHUTTER, CHOKE

$2.49

$

In Stock, only 2 left!

0

8

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

9

Echo A021000761

CARBURETOR WT-589A
(Superseded to A021000231)

$73.99

$

In Stock, only 3 left!

0

10

Echo 17851039230

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

11

Echo V103000021

GASKET, INTAKE

$1.49

$

In Stock, Qty 5

0

12

Echo 90025005018

SCREW - 5X18

$0.99

$

In Stock, Qty 9

0

13

Echo P021000010

INSULATOR KIT

$20.99

$

In Stock, only 1 left!

0

14

Echo V103000120

GASKET, INTAKE

$1.49

$

In Stock, only 1 left!

0

15

Echo 13001239131

SEAL
(Superseded to 13001239132)

$2.99

$

In Stock, Qty 5

0

16

Echo 17881039630

GROMMET

$5.99

$

Usually ships in 2-4 days

0

17

Echo 12902339131

GROMMET

$2.49

$

In Stock, only 1 left!

0

18

Echo 10403439130

PLUG

$3.49

$

Usually ships in 2-4 days

0
