CS-306 - Echo Chainsaw (SN: 04001001 - 04999999) Engine, Engine Cover, Short Block S/N: 04001001 - 04002300 Parts Diagram

Chainsaw

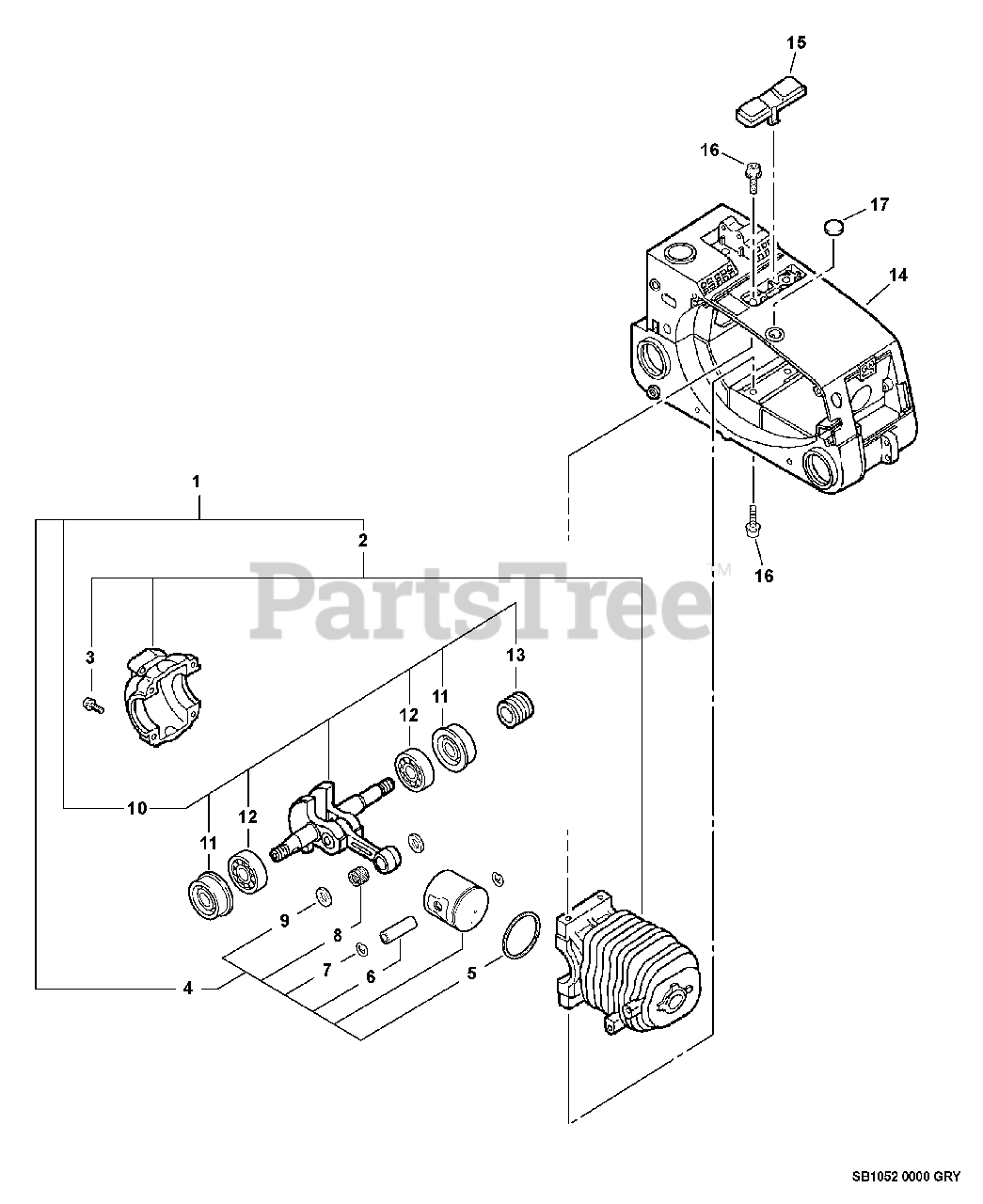

Engine, Engine Cover, Short Block S/N: 04001001 - 04002300 Parts Diagram

  • Title

1

Echo SB1052

SHORT BLOCK -- SB1052

Note: INCLUDES ITEMS 2-13

$186.99

$

Usually ships in 2-4 days

0

2

Echo P021002021

CRANKCASE KIT
(Superseded to P021002022)

Note: Includes ITEM 3

$173.99

$

Usually ships in 2-4 days

0

3

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo 10000039130

PISTON KIT

Note: INCLUDES ITEMS 5-9

$81.99

$

Usually ships in 2-4 days

0

5

Echo 10001146430

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

6

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo P021007232

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 11-13

$

$

Not available

11

Echo V505000011

SEAL, OIL - 12

$7.99

$

In Stock, only 3 left!

0

12

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

13

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

14

Echo A190000021

COVER, ENGINE - GRAY
(Superseded to A190000022)

$93.99

$

In Stock, only 1 left!

0

15

Echo 10402939230

COVER - GRAY

$9.49

$

In Stock, only 4 left!

0

16

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

17

Echo 16391139130

PLUG

$1.99

$

Usually ships in 2-4 days

0
