CS-306 - Echo Chainsaw (SN: 02001001 - 02999999) Handles Parts Diagram

Chainsaw

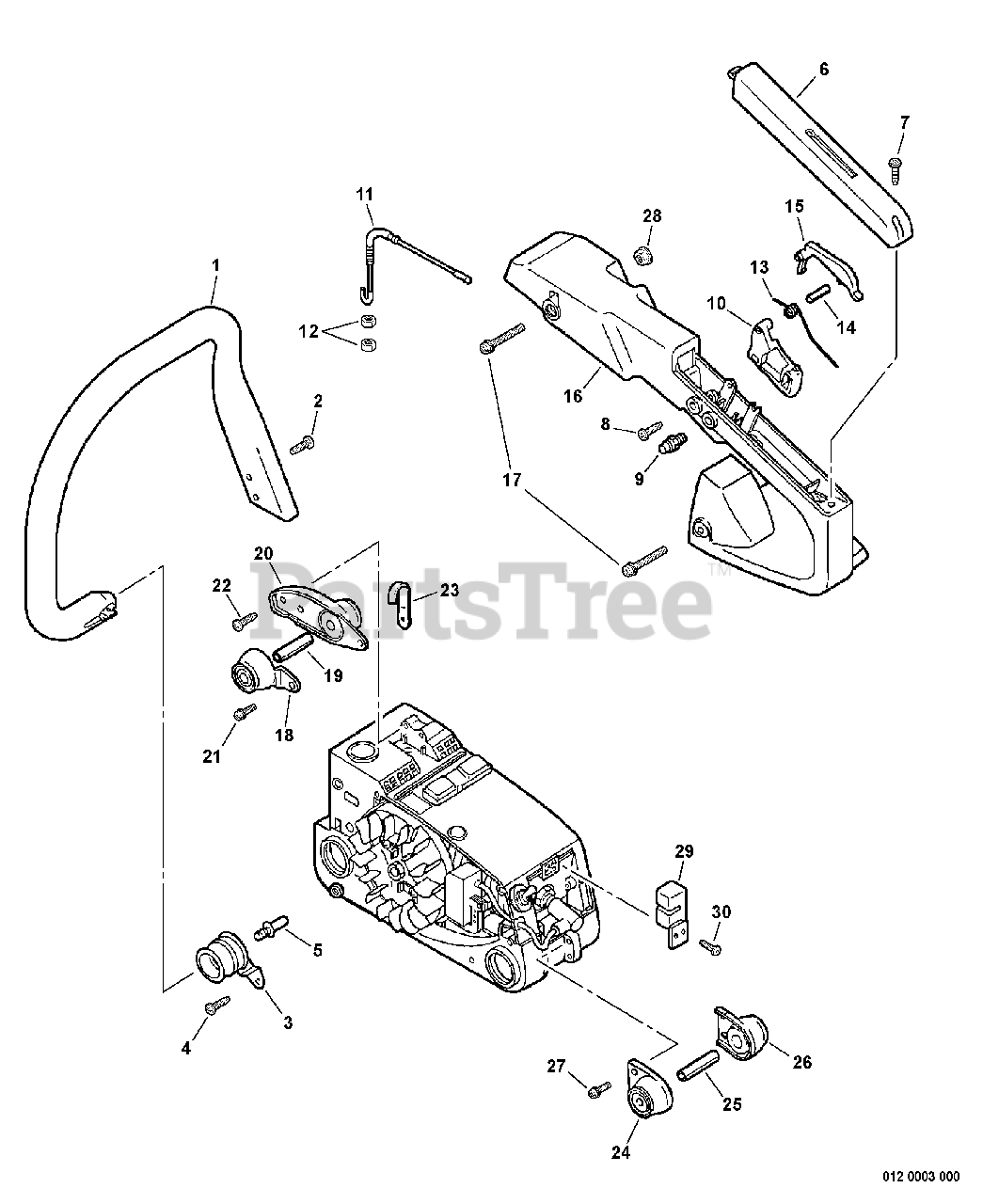

Handles Parts Diagram

  • Title
1

Echo 35161039430

HANDLE - FRONT

$68.99

$

Usually ships in 2-4 days

0

2

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

3

$13.99

$

In Stock, only 4 left!

0

4

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

$2.49

$

In Stock, only 3 left!

0

6

Echo 35115539430

COVER, HANDLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 90025604022

SCREW - 4X22

$0.99

$

In Stock, Qty 7

0

8

Echo 90025304025

SCREW - 4X25

$0.99

$

In Stock, Qty 10

0

9

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

10

Echo 17801039430

TRIGGER, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

11

Echo 17800139430

CABLE, THROTTLE

$20.99

$

In Stock, only 1 left!

0

12

$0.99

$

In Stock, Qty 8

0

13

$2.49

$

In Stock, only 4 left!

0

14

Echo 90033040200

ROLLER - 4X19.8

$0.99

$

In Stock, only 4 left!

0

15

Echo 17809039430

LOCKOUT, THROTTLE

$4.49

$

In Stock, Qty 5

0

16

Echo 35111039431

HANDLE - REAR

$62.99

$

In Stock, Qty 10

0

17

Echo 90023805057

SCREW - 5X57

$1.49

$

Usually ships in 2-4 days

0

18

Echo 10091739431

CUSHION - UPPER

$15.99

$

Usually ships in 2-4 days

0

19

Echo 10092439430

COLLAR - 6

$3.99

$

Usually ships in 2-4 days

0

20

Echo 10091039430

CUSHION - UPPER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

22

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

$1.99

$

Usually ships in 2-4 days

0

24

Echo 35162139430

CUSHION - LOWER

$15.99

$

In Stock, only 1 left!

0

25

Echo 10092439430

COLLAR - 6

$3.99

$

Usually ships in 2-4 days

0

26

Echo 35162439430

CUSHION - LOWER

$15.99

$

Usually ships in 2-4 days

0

27

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 18

0

28

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

29

$18.99

$

Usually ships in 2-4 days

0

30

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0
