CS-306 - Echo Chainsaw (SN: 02001001 - 02999999) Chain Brake S/N: 02001001 - 02042300 Parts Diagram

Chainsaw

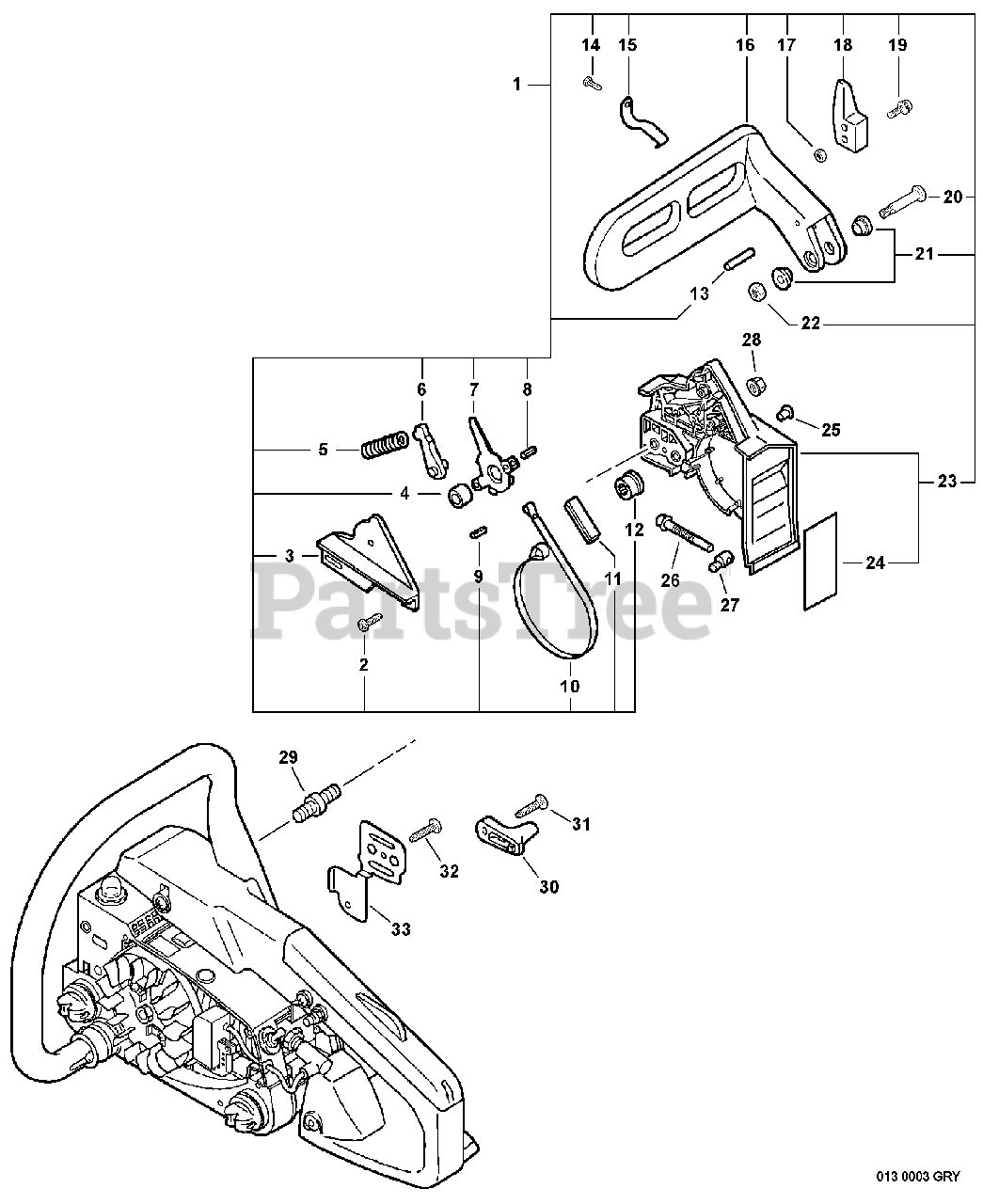

Chain Brake S/N: 02001001 - 02042300 Parts Diagram

  • Title
1

Echo C032000062

CHAIN BRAKE ASSY
(Superseded to C032000063)

Note: INCLUDES ITEMS 2-24

$

$

Not available

2

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

3

Echo 43331039530

COVER, BRAKE - GRAY

$5.49

$

Usually ships in 2-4 days

0

4

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

5

Echo 43312235430

SPRING, BRAKE

$3.49

$

Usually ships in 2-4 days

0

6

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

7

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

8

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 3 left!

0

9

Echo 90034225012

PIN - SPRING -- 2.5X12

$1.49

$

In Stock, only 3 left!

0

10

Echo 43312339530

BAND, BRAKE

$7.99

$

In Stock, only 2 left!

0

$1.49

$

In Stock, Qty 7

0

12

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 3 left!

0

13

Echo 90033040238

ROLLER - 4X23.8

$0.99

$

In Stock, only 4 left!

0

14

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

15

Echo 43311439130

SPRING, RETURN

$2.99

$

In Stock, only 1 left!

0

16

Echo 43314739430

LEVER, BRAKE - ORANGE

$6.49

$

Usually ships in 2-4 days

0

17

$0.99

$

In Stock, Qty 20+

0

18

Echo 43317139130

WEIGHT, BRAKE

$15.99

$

Usually ships in 2-4 days

0

19

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

20

Echo 9131805032

SCREW - 5X32

$0.99

$

In Stock, Qty 20+

0

21

$2.99

$

In Stock, Qty 10

0

22

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo C300000041

GUARD, SPROCKET - GRAY
(Superseded to C300000042)

Note: Includes ITEM 24

$28.99

$

In Stock, Qty 6

0

24

Echo V341000000

DEFLECTOR, HEAT

$0.99

$

In Stock, Qty 18

0

25

$2.99

$

Usually ships in 2-4 days

0

26

Echo 43301639131

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

27

Echo 43301403931

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

28

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

29

Echo V224000031

STUD, GUIDE BAR

$1.99

$

In Stock, Qty 20+

0

30

Echo 43302635430

CATCHER, CHAIN

$1.99

$

In Stock, Qty 18

0

31

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

32

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

33

Echo 43301239131

PLATE, GUIDE - OUTER

$7.99

$

In Stock, Qty 9

0
