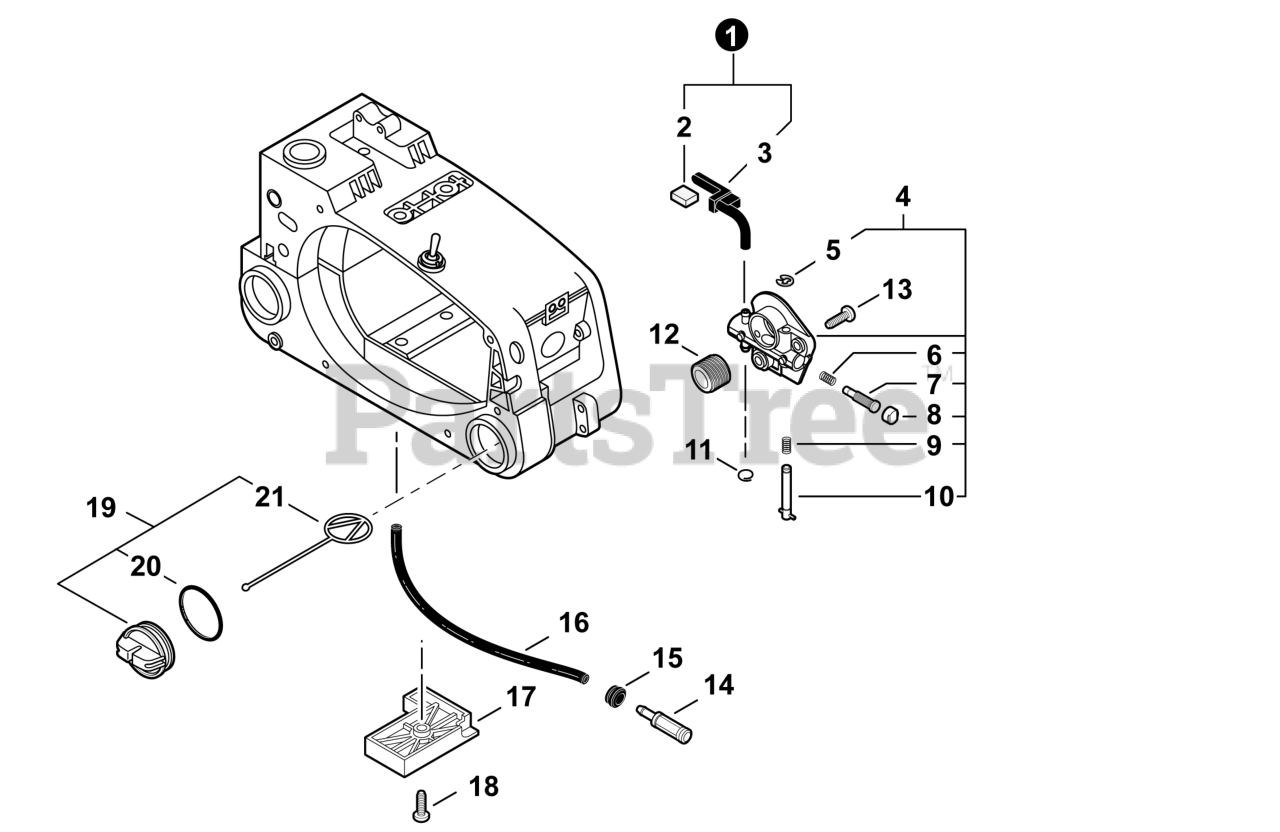

CS-303 T - Echo Chainsaw (SN: C83829001001 - C83829999999) Oil System Parts Diagram

Chainsaw

Oil System Parts Diagram

  • Title

1

Echo P100002731

PIPE KIT, OIL

Note: Includes Items 2-3

$12.99

$

In Stock, only 1 left!

0

2

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

3

Echo 43721139134

PIPE, OIL OUTLET

$1.99

$

In Stock, only 2 left!

0

4

Echo C022000010

AUTO-OILER ASSY

Note: Includes Items 5-10

$49.99

$

In Stock, Qty 7

0

5

Echo 12312715030

E-RING

$0.99

$

In Stock, only 2 left!

0

6

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

7

Echo P022010650

PLUNGER ASSY

$11.99

$

In Stock, only 1 left!

0

8

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 9

0

9

Echo P022010670

SPRING

$1.99

$

In Stock, only 4 left!

0

10

Echo P022010680

ADJUSTER, OILER

$7.49

$

Usually ships in 2-4 days

0

11

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

12

Echo V652000021

GEAR, WORM

$14.99

$

In Stock, only 1 left!

0

13

Echo 90023505012

SCREW 5x12

$0.99

$

In Stock, Qty 11

0

14

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

15

Echo 13211501462

GROMMET

$1.49

$

In Stock, Qty 9

0

16

Echo V471000111

PIPE 3x6x115 BLACK

$2.49

$

In Stock, Qty 20+

0

17

Echo 10404439130

COVER, BOTTOM

$8.49

$

Usually ships in 2-4 days

0

18

Echo 90025604016

SCREW 4x16

$0.99

$

In Stock, Qty 20+

0

19

Echo P021007630

CAP ASSY

Note: Includes Items 20-21

$10.99

$

In Stock, Qty 11

0

20

Echo 90072100025

O-RING 25

$2.49

$

In Stock, Qty 20+

0

21

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
