CS-303 T - Echo Chainsaw (SN: C83829001001 - C83829999999) Fuel System Parts Diagram

Chainsaw

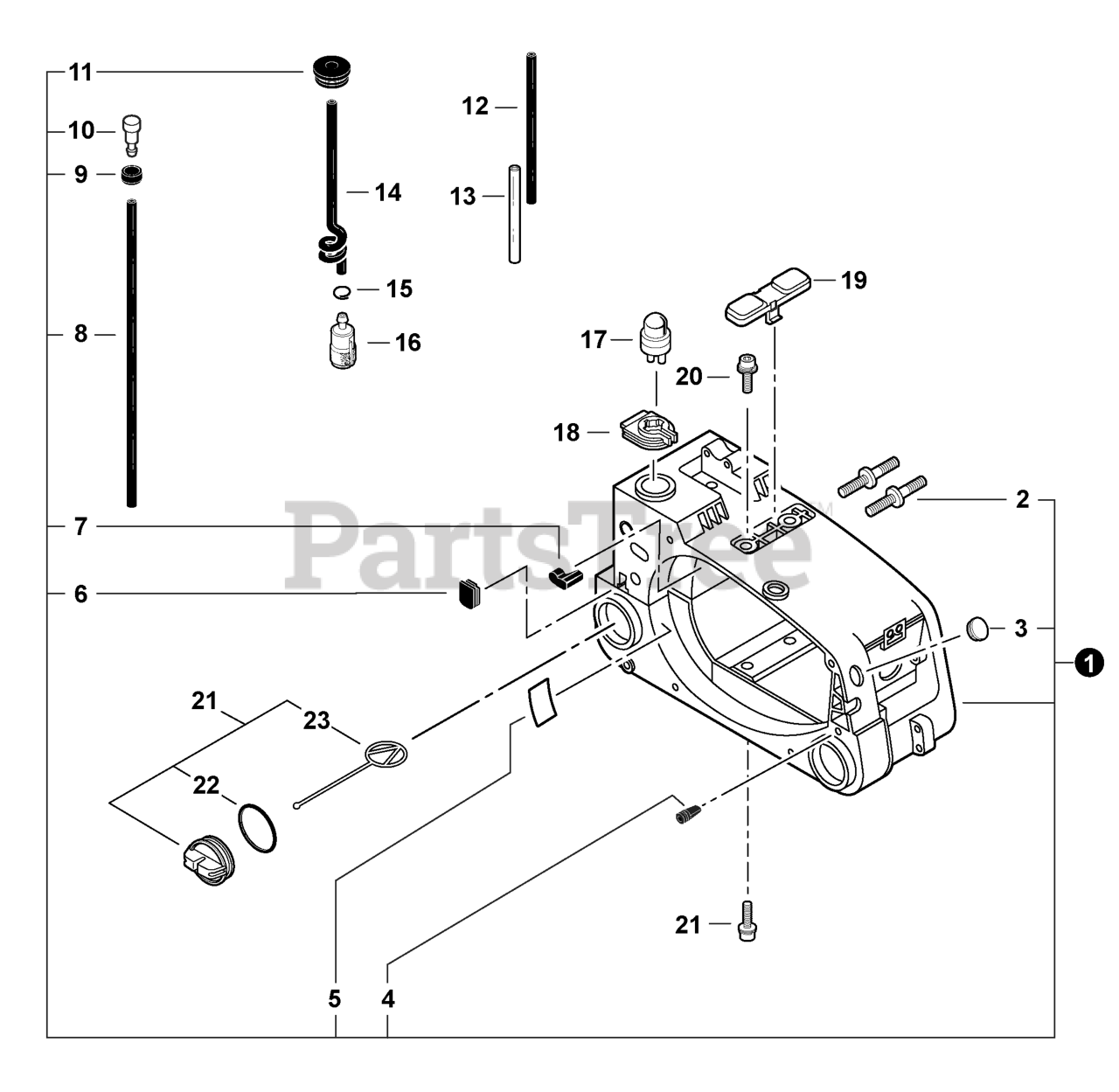

Fuel System Parts Diagram

  • Title

1

Echo P021043734

COVER ASSY, ENGINE

Note: Includes Items 2-11

$93.99

$

In Stock, only 1 left!

0

2

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 20+

0

3

Echo 16391139130

PLUG

$1.99

$

Usually ships in 2-4 days

0

4

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 2 left!

0

5

Echo V341000191

SHIELD, HEAT

$2.99

$

Usually ships in 2-4 days

0

6

Echo 13033639530

PLUG

$5.99

$

In Stock, only 2 left!

0

7

Echo 10403439130

PLUG

$3.49

$

Usually ships in 2-4 days

0

8

Echo 13201004921

PIPE, FUEL 3x5x150 BLACK

$1.49

$

Usually ships in 2-4 days

0

9

Echo 13132839130

HOLDER, VENT

$8.49

$

In Stock, Qty 5

0

10

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

11

Echo 13211539131

GROMMET, FUEL

$2.99

$

Usually ships in 2-4 days

0

12

Echo V471001201

PIPE, FUEL 3x5x70 BLACK

$1.99

$

In Stock, Qty 20+

0

13

Echo 13271639130

PIPE, FUEL 2x4x42 CLEAR

$1.49

$

In Stock, Qty 20+

0

14

Echo 13201239131

PIPE, FUEL 3x6x160

$6.49

$

In Stock, only 3 left!

0

15

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

16

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

17

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

18

Echo 13275839131

BRACKET, BULB

$10.99

$

In Stock, Qty 7

0

19

Echo 10402939130

COVER, TOP

$1.49

$

In Stock, only 3 left!

0

20

Echo 90010605016

BOLT 5x16

$0.99

$

Usually ships in 2-4 days

0

21

Echo P100009010

CAP ASSY, FUEL - ORANGE

Note: Includes Items 22-23

$10.99

$

Usually ships in 2-4 days

0

22

Echo 90072100025

O-RING 25

$2.49

$

In Stock, Qty 20+

0

23

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
