CS-303 T - Echo Chainsaw (SN: C33214001001 - C33214999999) Carburetor Parts Diagram

Chainsaw

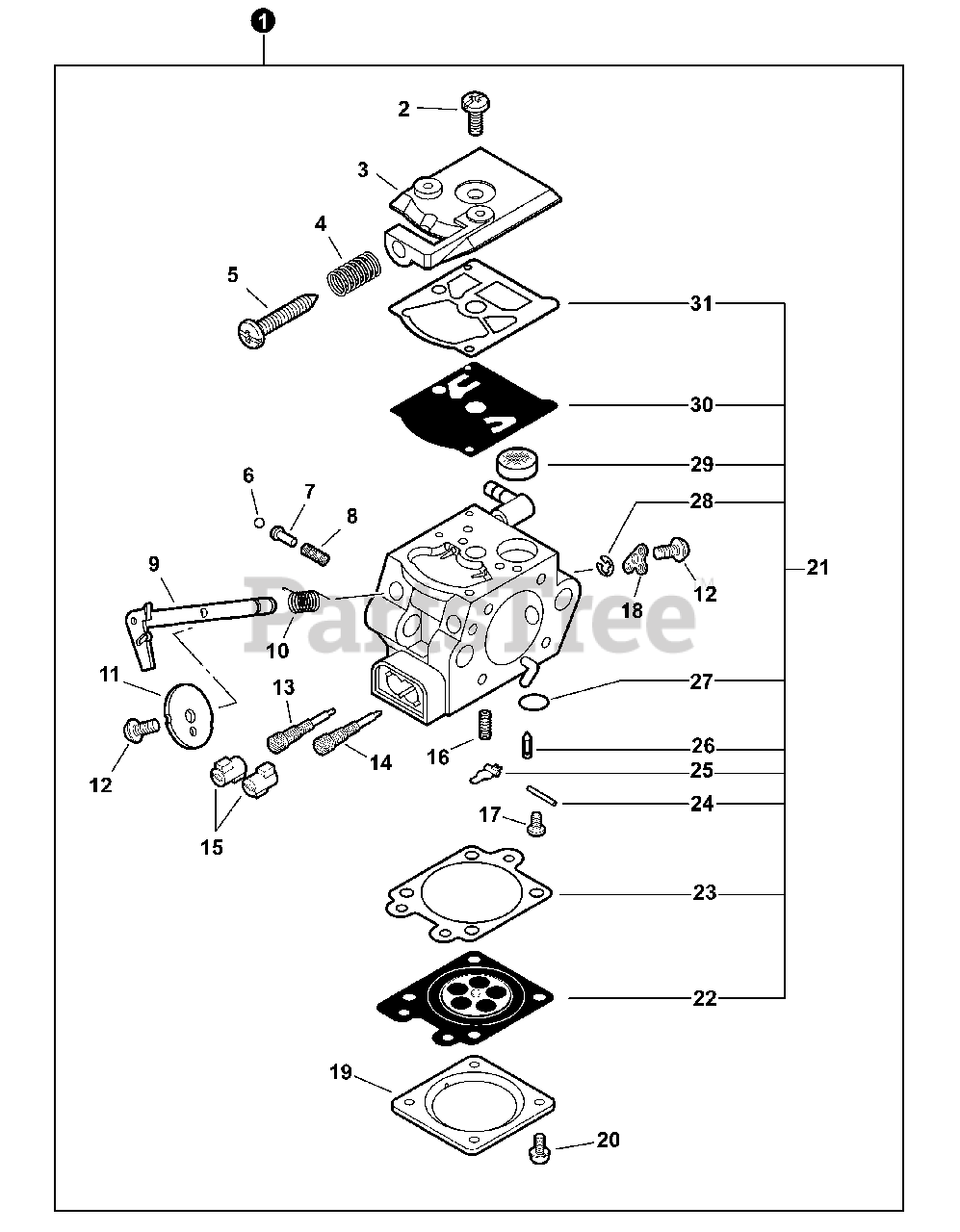

Carburetor Parts Diagram

  • Title
1

Echo 12300139136

CARBURETOR - WT-402B

Note: Includes Items 1-31

$72.99

$

In Stock, only 2 left!

0

$0.99

$

In Stock, only 1 left!

0

3

Echo 12312409320

COVER, FUEL PUMP

$5.49

$

Usually ships in 2-4 days

0

4

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

5

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

$0.99

$

Usually ships in 2-4 days

0

7

Echo 12318509660

PISTON ASSY

$2.49

$

Usually ships in 2-4 days

0

8

Echo 12318609660

SPRING, START VALVE

$0.99

$

Usually ships in 2-4 days

0

9

Echo 12311739530

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

10

Echo 12311347530

SPRING, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

11

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

12

$1.49

$

In Stock, Qty 13

0

13

Echo 12311839231

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

14

Echo 12312039231

NEEDLE, HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

15

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

16

Echo 12312203660

SPRING, METERING LEVER

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

18

Echo 12315039230

LEVER, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

20

$1.99

$

Usually ships in 2-4 days

0

21

Echo P003002190

REPAIR KIT

Note: Includes Items 22-31

$10.99

$

In Stock, only 1 left!

0

22

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0

23

Echo 12314027230

GASKET, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

24

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

25

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

26

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

27

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

28

$0.99

$

In Stock, only 2 left!

0

29

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 19

0

30

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 2 left!

0

31

Echo 12312515030

GASKET, PUMP

$2.49

$

In Stock, Qty 9

0
