CS-303 T - Echo Chainsaw (SN: C31826001001 - C31826999999) Fuel System Parts Diagram

Chainsaw

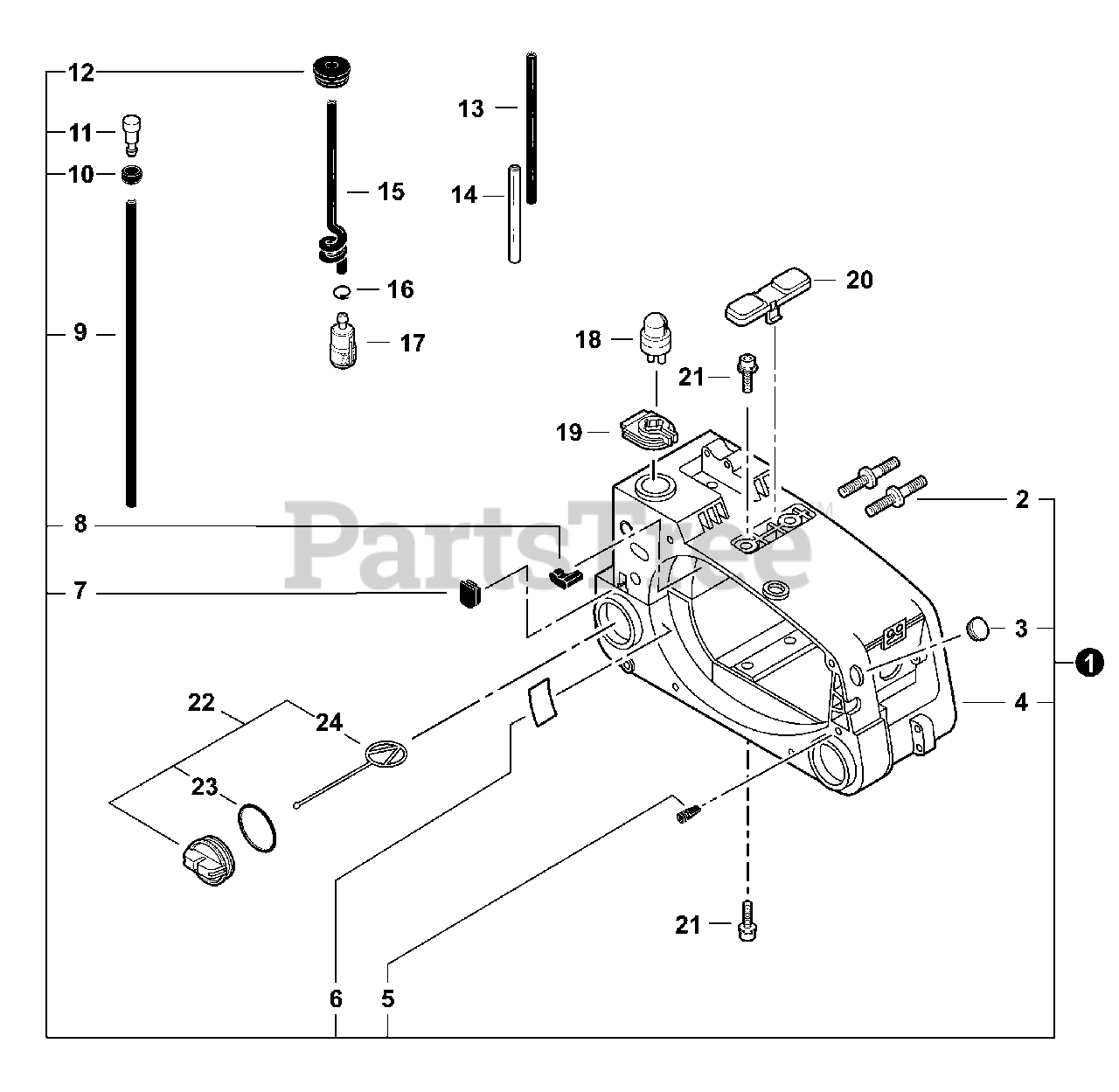

Fuel System Parts Diagram

  • Title

1

Echo P021043730

COVER ASSY, ENGINE
(Superseded to P021043731)

Note: Includes Items 2-12

$93.99

$

In Stock, only 1 left!

0

2

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 19

0

3

Echo 16391139130

PLUG

$1.99

$

Usually ships in 2-4 days

0

4

Echo A190000642

COVER, ENGINE
(Superseded to P021043731)

$93.99

$

In Stock, only 1 left!

0

5

Echo 43611413930

VENT ASSY

$6.49

$

Usually ships in 2-4 days

0

6

Echo V341000190

SHIELD, HEAT

$2.99

$

Usually ships in 2-4 days

0

7

Echo 13033639530

PLUG

$5.99

$

In Stock, only 2 left!

0

8

Echo 10403439130

PLUG

$3.49

$

Usually ships in 2-4 days

0

9

Echo 13201004920

PIPE, FUEL 3×5×150L BLACK
(Superseded to 13201004921)

$1.49

$

In Stock, only 4 left!

0

10

Echo 13132839130

HOLDER, VENT

$8.49

$

In Stock, only 4 left!

0

11

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

12

Echo 13211539130

GROMMET, FUEL
(Superseded to 13211539131)

$2.99

$

In Stock, Qty 7

0

13

Echo V471001200

PIPE, FUEL 3×5×70 BLACK
(Superseded to V471001201)

$1.99

$

In Stock, Qty 20+

0

14

Echo 13271639130

PIPE, FUEL 2×4×42 CLEAR

$1.49

$

In Stock, Qty 15

0

15

Echo 13201239130

PIPE, FUEL 3×6×160
(Superseded to 13201239131)

$6.49

$

In Stock, only 1 left!

0

16

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

17

Echo A369000420

FILTER, FUEL

$8.99

$

In Stock, only 4 left!

0

18

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

19

Echo 13275839131

BRACKET, BULB

$10.99

$

In Stock, only 4 left!

0

20

Echo 10402939130

COVER, TOP

$1.49

$

In Stock, only 3 left!

0

21

Echo 90010605016

BOLT 5×16

$0.99

$

Usually ships in 2-4 days

0

22

Echo P021044600

CAP ASSY, FUEL - ORANGE

Note: Includes Items 23-24

$2.99

$

In Stock, only 2 left!

0

23

Echo V581000750

O-RING

$0.99

$

Usually ships in 2-4 days

0

24

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0
