CS-303 T - Echo Chainsaw (SN: C31826001001 - C31826999999) Carburetor Parts Diagram

Chainsaw

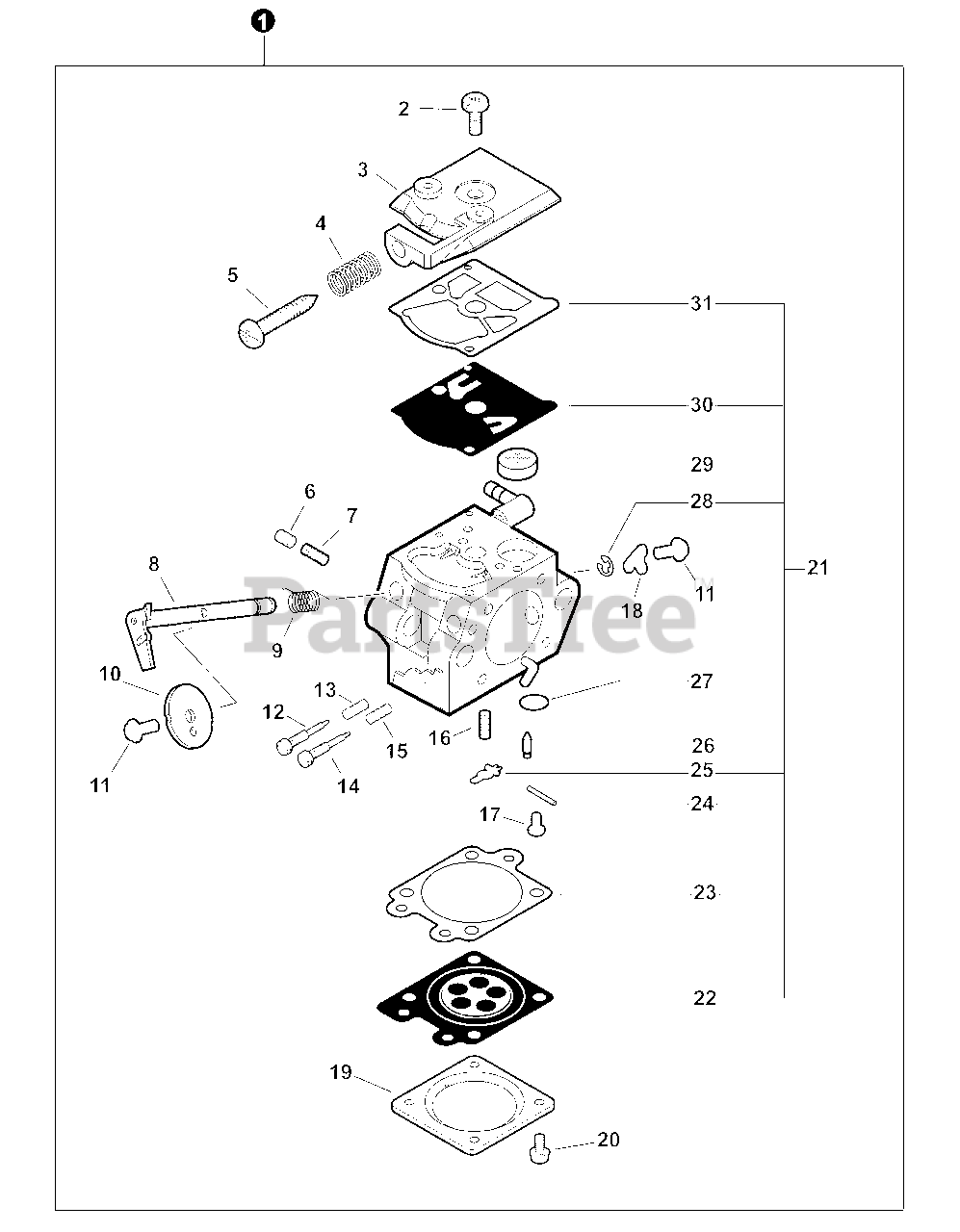

Carburetor Parts Diagram

  • Title
1

Echo A021004310

CARBURETOR - WT-1109

Note: Includes Items 2-31

$74.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, only 1 left!

0

3

Echo 12312409320

COVER, FUEL PUMP

$5.49

$

Usually ships in 2-4 days

0

4

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

5

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

6

Echo 12318539130

PISTON ASSY

$5.99

$

Usually ships in 2-4 days

0

7

Echo 12318609660

SPRING, START VALVE

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12311739630

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

9

Echo 12311347530

SPRING, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

10

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

11

$1.49

$

In Stock, Qty 13

0

12

Echo 12311824430

NEEDLE, LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

13

Echo 12312122130

SPRING, NEEDLE

$3.49

$

Usually ships in 2-4 days

0

14

Echo 12312039530

NEEDLE, HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

15

Echo 12311922130

SPRING, HIGH NEEDLE

$2.99

$

Usually ships in 2-4 days

0

16

Echo 12312239830

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

17

$3.99

$

In Stock, only 1 left!

0

18

Echo 12315039230

LEVER, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

20

$1.99

$

Usually ships in 2-4 days

0

21

Echo P003002190

REPAIR KIT

Note: Includes Items 22-31

$10.99

$

In Stock, only 1 left!

0

22

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0

23

Echo 12314027230

GASKET, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

24

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

25

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

26

Echo 12313704260

VALVE, INLET NEEDLE

$3.99

$

Usually ships in 2-4 days

0

27

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

28

$0.99

$

In Stock, only 2 left!

0

29

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 19

0

30

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 2 left!

0

31

Echo 12312539630

GASKET, FUEL PUMP
(Superseded to Discontinued)

$

$

Not available
