CS-303 T - Echo Chainsaw (SN: C26213001001 - C26213999999) Engine Parts Diagram

Chainsaw

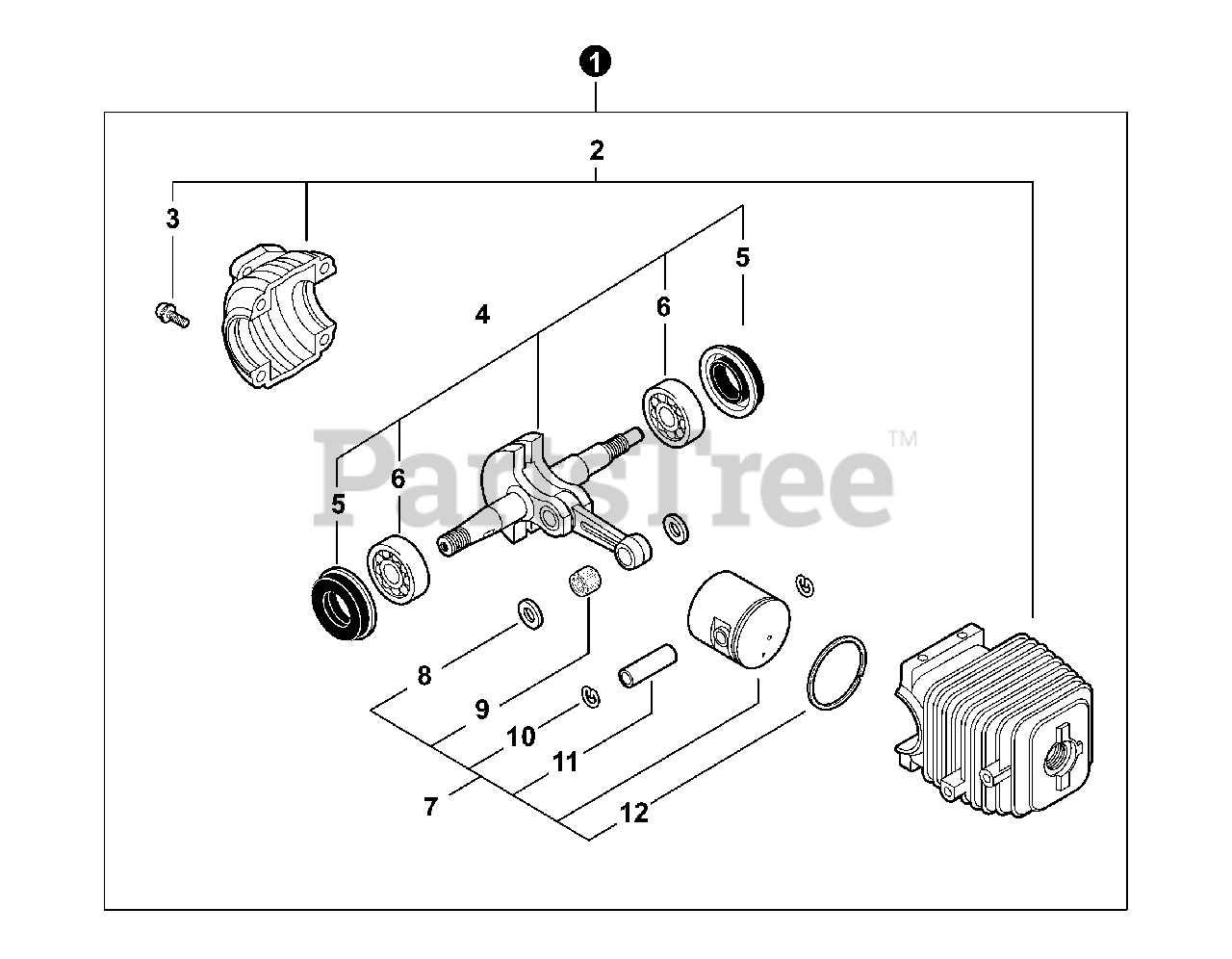

Engine Parts Diagram

  • Title
1

Echo SB1108

SHORT BLOCK

Note: Includes Items 2-12

$194.99

$

Usually ships in 2-4 days

0

2

Echo P021038330

CRANKCASE KIT

Note: Includes Item 3

$79.99

$

Usually ships in 2-4 days

0

3

Echo 90023805025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo P021011013

CRANKSHAFT ASSY

Note: Includes Items 5-6

$183.99

$

Usually ships in 2-4 days

0

5

Echo V505000011

SEAL, OIL 12

$7.99

$

In Stock, only 3 left!

0

6

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 11

0

7

Echo 10000039130

PISTON KIT

Note: Includes Items 8-12

$81.99

$

Usually ships in 2-4 days

0

8

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 3 left!

0

9

Echo 17501203930

BEARING, NEEDLE 8

$11.99

$

Usually ships in 2-4 days

0

10

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

11

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

12

Echo 10001146430

RING, PISTON

$8.49

$

In Stock, only 1 left!

0
