CS-303 T - Echo Chainsaw (SN: C26012001001 - C26012999999) Intake Parts Diagram

Chainsaw

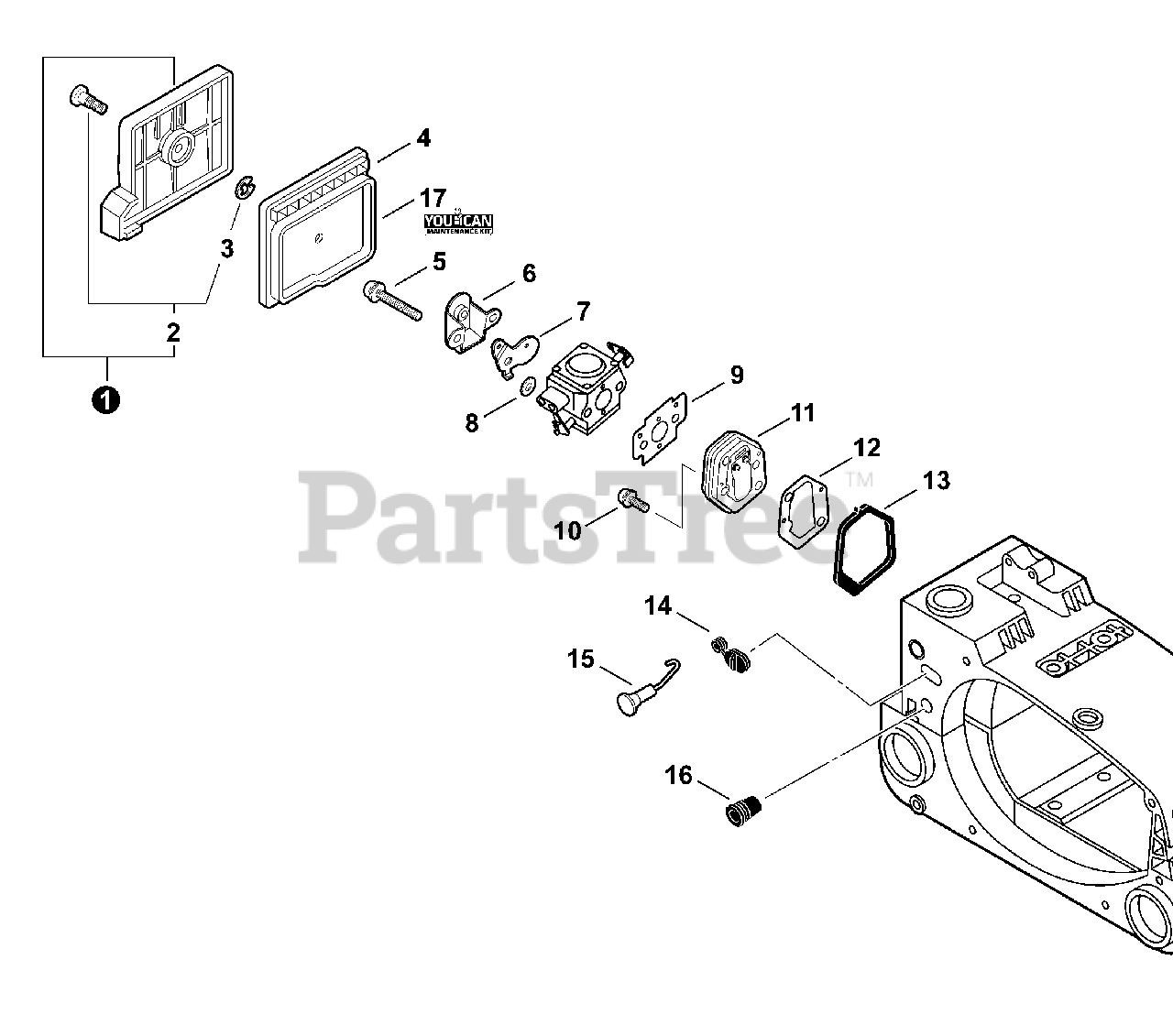

Intake Parts Diagram

  • Title

1

Echo 13030239136

COVER ASSY, AIR FILTER

Note: Includes Items 2-3

$18.99

$

In Stock, Qty 6

0

2

Echo 13040613933

THUMBSCREW

Note: Includes Items 3

$4.49

$

In Stock, Qty 10

0

3

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031039132

FILTER, AIR

$11.99

$

In Stock, Qty 12

0

5

Echo 90023805045

SCREW 5×45

$0.99

$

In Stock, Qty 6

0

6

Echo 12901139130

PLATE, PREVENT

$5.49

$

In Stock, only 1 left!

0

7

Echo 17851539130

SHUTTER, CHOKE

$2.49

$

In Stock, only 2 left!

0

8

Echo 17851600830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

9

Echo V103000021

GASKET, INTAKE

$1.49

$

In Stock, Qty 6

0

10

Echo 90025005018

SCREW 5×18

$0.99

$

In Stock, Qty 9

0

11

Echo P021043810

INSULATOR KIT

$21.99

$

Usually ships in 2-4 days

0

12

Echo V103000120

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

13

Echo 13001239131

SEAL, INTAKE
(Superseded to 13001239132)

$2.99

$

In Stock, Qty 6

0

14

Echo 17881039630

GROMMET, CHOKE

$5.99

$

Usually ships in 2-4 days

0

15

Echo 17851039230

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

16

Echo 12902339131

GROMMET, IDLE

$2.49

$

In Stock, only 1 left!

0

17

Echo 90149Y

TUNE-UP KIT - YOUCAN™

$22.99

$

Usually ships in 2-4 days

0
