CS-302 S - Echo Chainsaw (SN: 64671 - 99999) Clutch Drive Parts Diagram

Chainsaw

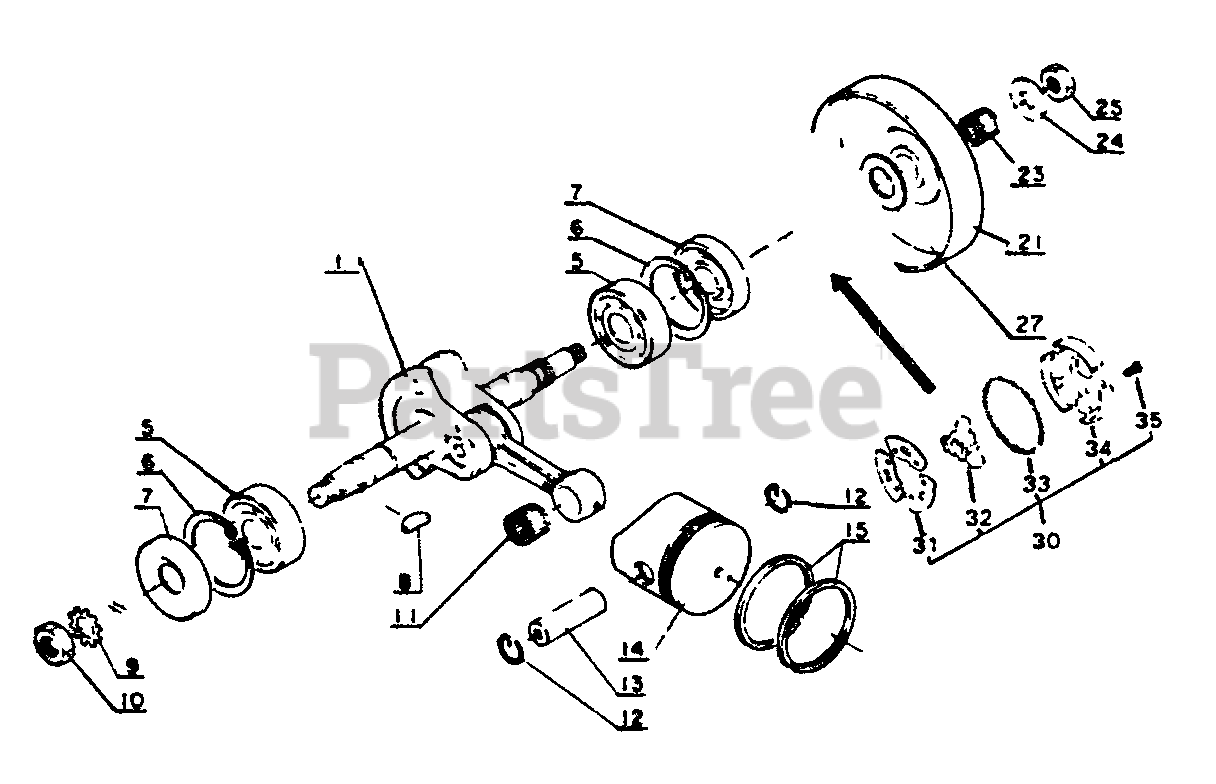

Clutch Drive Parts Diagram

  • Title

1

Echo 10010003930

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

6

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

7

Echo 10021303930

SEAL, OIL
(Superseded to 10021203930)

$5.49

$

In Stock, only 2 left!

0

8

Echo 10013101620

KEY

$2.99

$

Usually ships in 2-4 days

0

9

Echo 90061100008

LOCKWASHER - 8

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

11

Echo 10001200720

BEARING, NEEDLE
(Superseded to 10001216131)

$10.99

$

Usually ships in 2-4 days

0

12

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 10001303930

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

14

Echo 10001013330

PISTON

$52.99

$

Usually ships in 2-4 days

0

15

Echo 10001113330

RING, PISTON

$7.49

$

In Stock, only 1 left!

0

21

Echo 17500511530

CASE, CLUTCH
(Superseded to 17500515830)

$

$

Not available

23

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

24

Echo 17501411530

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

25

Echo 10013903930

LOCKNUT - 6
(Superseded to Discontinued)

$

$

Not available

27

Echo 17501503930

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

30

Echo 17500003931

CLUTCH ASSY
(Superseded to 17500003932)

$63.99

$

Usually ships in 2-4 days

0

31

Echo 17501919830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

32

Echo 17501603931

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

33

Echo 17501819830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

34

Echo 17500219830

CLUTCH SHOE SET

$40.99

$

Usually ships in 2-4 days

0

35

Echo 90028104008

SCREW - 4X8
(Superseded to 90023804008)

$0.99

$

In Stock, Qty 10

0
