CS-302 S - Echo Chainsaw (SN: 17501 - 30500) Ignition Parts Diagram

Chainsaw

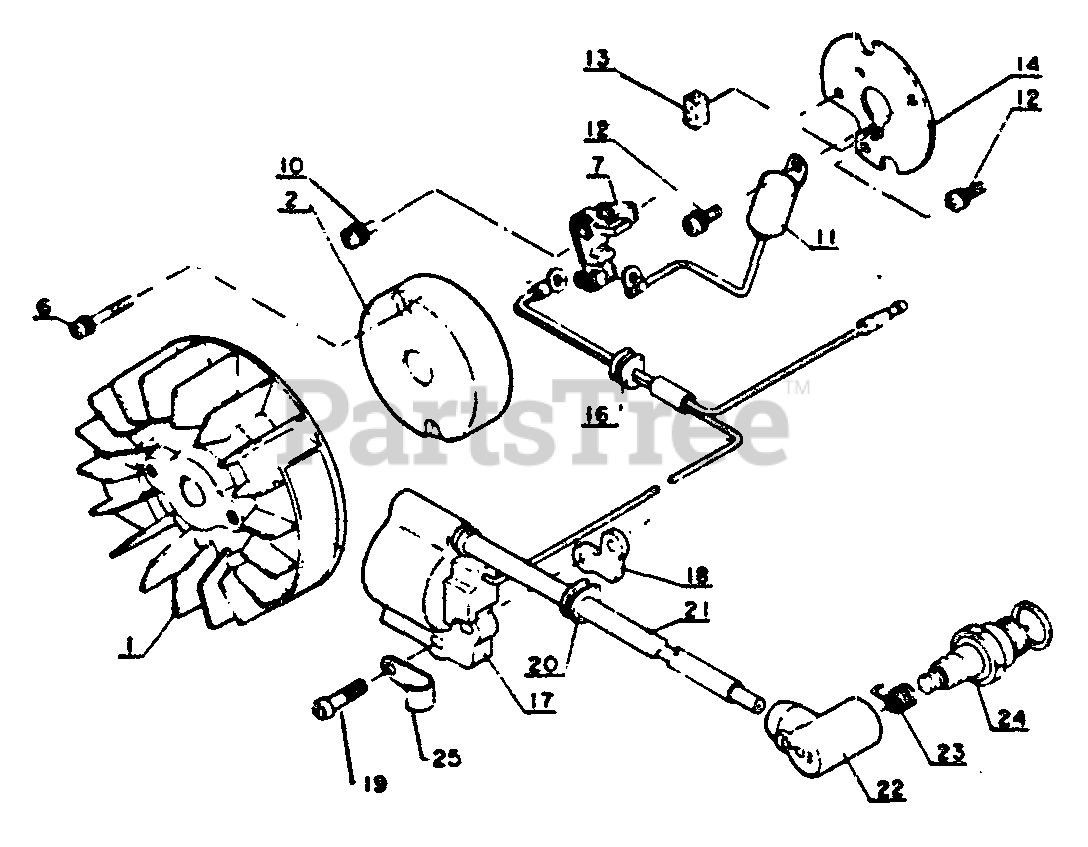

Ignition Parts Diagram

  • Title

1

Echo 15020003931

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 15611203930

COVER, BREAKER
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024203022

SCREW - 3X22
(Superseded to Discontinued)

$

$

Not available

7

Echo 15010103930

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

11

Echo 15012703930

CONDENSER
(Superseded to Discontinued)

$

$

Not available

12

Echo 90024104012

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

13

Echo 15013403930

PAD
(Superseded to Discontinued)

$

$

Not available

14

Echo 15013203930

PLATE, STATOR
(Superseded to Discontinued)

$

$

Not available

16

------------------

UNKNOWN

$

$

Not available

17

Echo 15012603930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

18

Echo 15011713730

SPACER

$2.99

$

Usually ships in 2-4 days

0

19

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

20

Echo 15011003930

BUSHING
(Superseded to Discontinued)

$

$

Not available

21

Echo 15011103930

TUBE

$1.49

$

Usually ships in 2-4 days

0

22

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 8

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 18

0

24

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

25

Echo 15911304130

CLIP
(Superseded to Discontinued)

$

$

Not available
