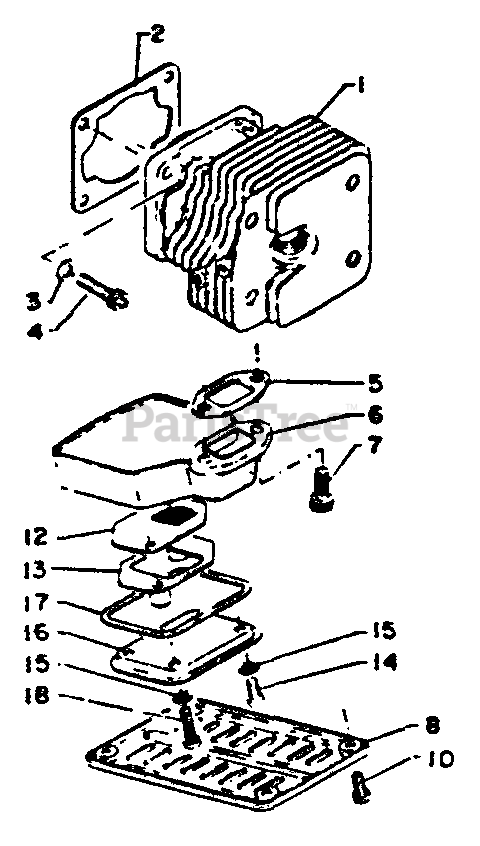

CS-302 S - Echo Chainsaw (SN: 17501 - 30500) Engine, Exhaust Parts Diagram

Chainsaw

Engine, Exhaust Parts Diagram

  • Title
1

Echo 10101113330

CYLINDER

$216.99

$

Usually ships in 2-4 days

0

2

Echo 10101013330

GASKET, CYLINDER
(Superseded to 10101013331)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

4

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

5

Echo 14551003930

GASKET, EXHAUST
(Superseded to 14551003931)

$

$

Not available

6

Echo 14580503930

MUFFLER
(Superseded to Discontinued)

$

$

Not available

7

Echo 90010505015

SCREW - 5X15

$1.49

$

Usually ships in 2-4 days

0

8

Echo 14562103930

COVER, MUFFLER

$16.99

$

Usually ships in 2-4 days

0

10

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 10

0

12

Echo 14586203930

SCREEN, SPARK ARRESTOR

$4.99

$

Usually ships in 2-4 days

0

13

Echo 14590503931

RETAINER, SCREEN
(Superseded to Discontinued)

$

$

Not available

14

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

15

Echo 90061000004

LOCKWASHER - 4

$0.99

$

Usually ships in 2-4 days

0

16

Echo 14586103931

COVER, MUFFLER

$6.99

$

Usually ships in 2-4 days

0

17

Echo 14586603930

GASKET, EXHAUST
(Superseded to 14586603931)

$

$

Not available

18

Echo 90022004014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0
