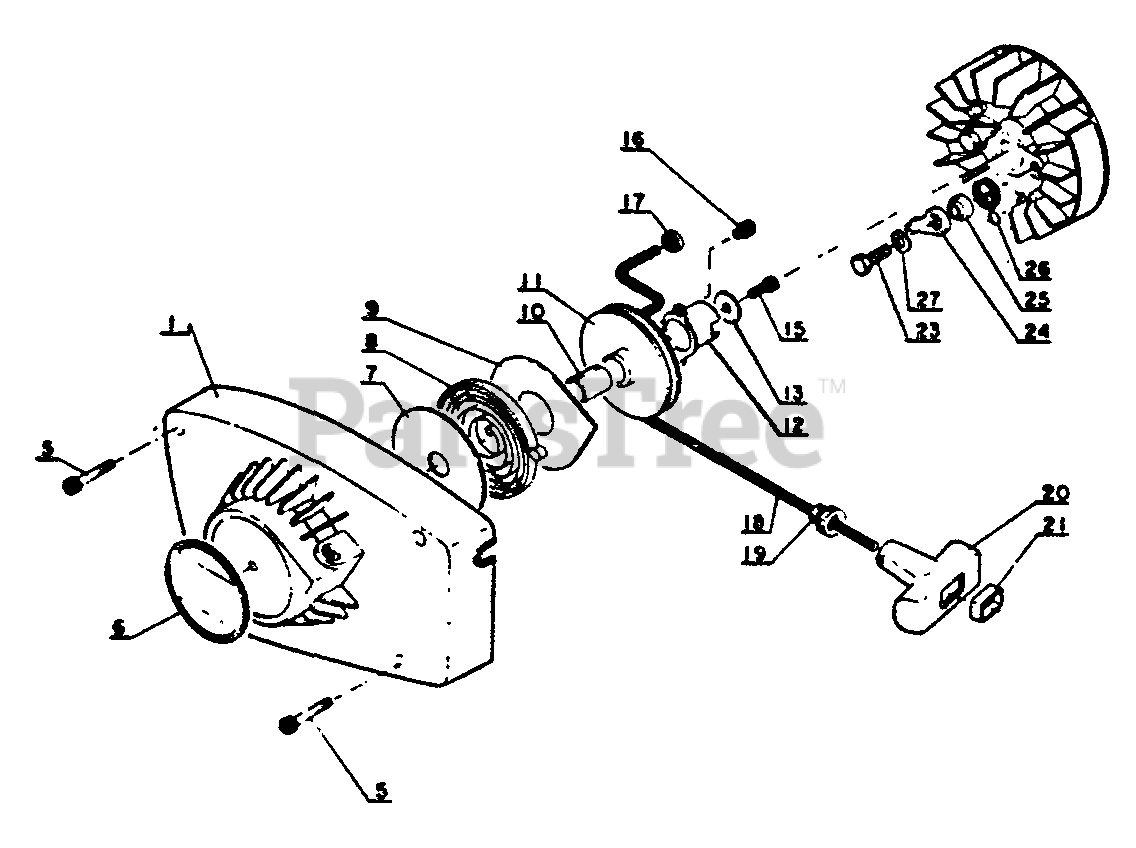

CS-302 - Echo Chainsaw Starter Parts Diagram

Chainsaw

Starter Parts Diagram

  • Title

Echo 17720003930

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 10150703930

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

7

Echo 17722103930

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

8

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

9

Echo 17724203930

PLATE, STARTER

$

$

Not available

10

Echo 17721603930

BUSHING
(Superseded to Discontinued)

$

$

Not available

11

Echo 17721503930

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

12

Echo 17724303930

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

13

Echo 17721403930

WASHER

$0.99

$

In Stock, Qty 10

0

15

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

16

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

17

Echo 17724603930

RETAINER, ROPE

$0.99

$

In Stock, only 2 left!

0

18

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 6

0

19

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

20

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 13

0

21

Echo 17722914330

RING, RETAINING

$1.49

$

In Stock, Qty 6

0

5

Echo 90016204030

SCREW - 4X30

$1.49

$

Usually ships in 2-4 days

0

6

Echo 89001211132

LABEL - ECHO
(Superseded to 89001211133)

$6.49

$

In Stock, only 4 left!

0

23

Echo 90010005016

BOLT - 5X16

$0.99

$

Usually ships in 2-4 days

0

24

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 17724703932

SPACER

$1.99

$

Usually ships in 2-4 days

0

26

Echo 17723403931

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

27

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0
