CS-302 - Echo Chainsaw Fuel System Parts Diagram

Chainsaw

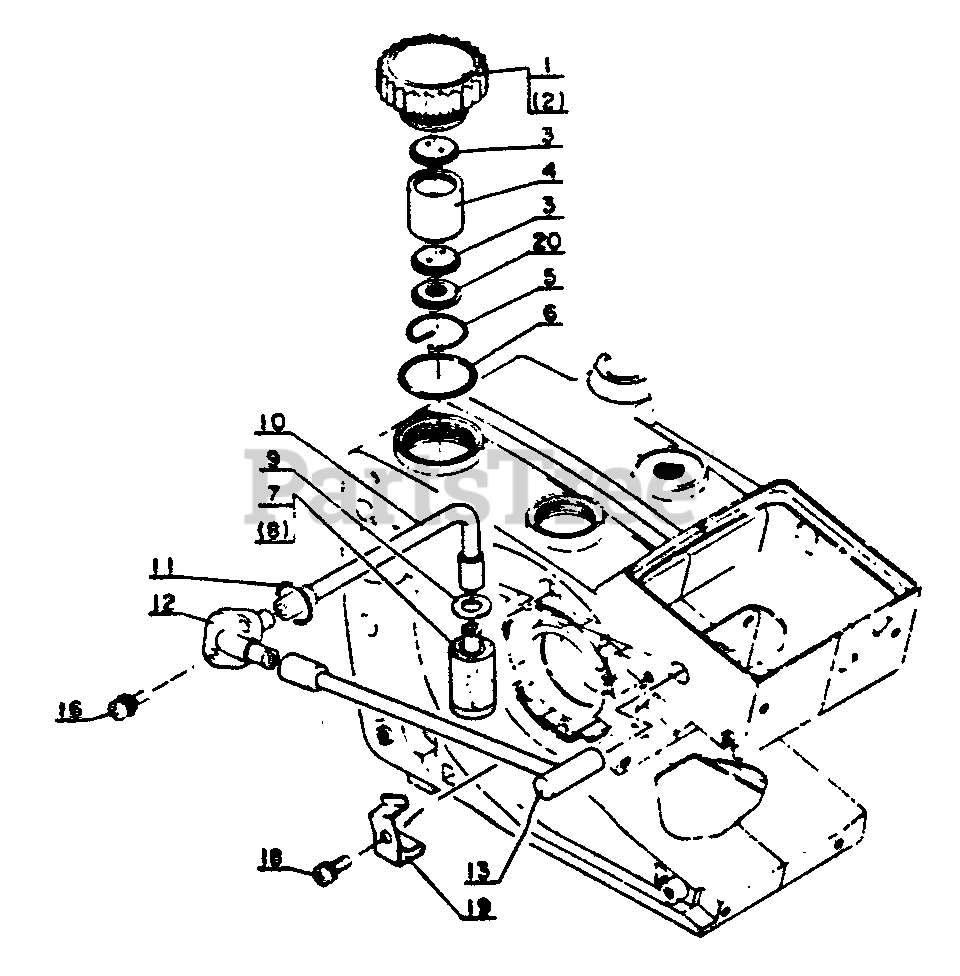

Fuel System Parts Diagram

  • Title

1

Echo 13160003931

CAP ASSY
(Superseded to 13160003932)

$22.99

$

Usually ships in 2-4 days

0

3

Echo 13103103930

SPACER
(Superseded to 13103103430)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 13103003930

SPACER

$2.49

$

In Stock, only 1 left!

0

5

Echo 13103203930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

20

Echo 13103503431

FILTER
(Superseded to Discontinued)

$

$

Not available

2

Echo 89015415130

LABEL - FUEL MIX

$1.49

$

In Stock, only 1 left!

0

6

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 10

0

7

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

8

Echo 13121402830

FILTER, FUEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13201003930

PIPE
(Superseded to Discontinued)

$

$

Not available

11

Echo 90072000014

O-RING - 14

$1.49

$

Usually ships in 2-4 days

0

12

Echo 13201103930

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

13

Echo 13201203930

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

16

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

18

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 10

0

19

Echo 15911203930

CLIP

$0.99

$

Usually ships in 2-4 days

0
