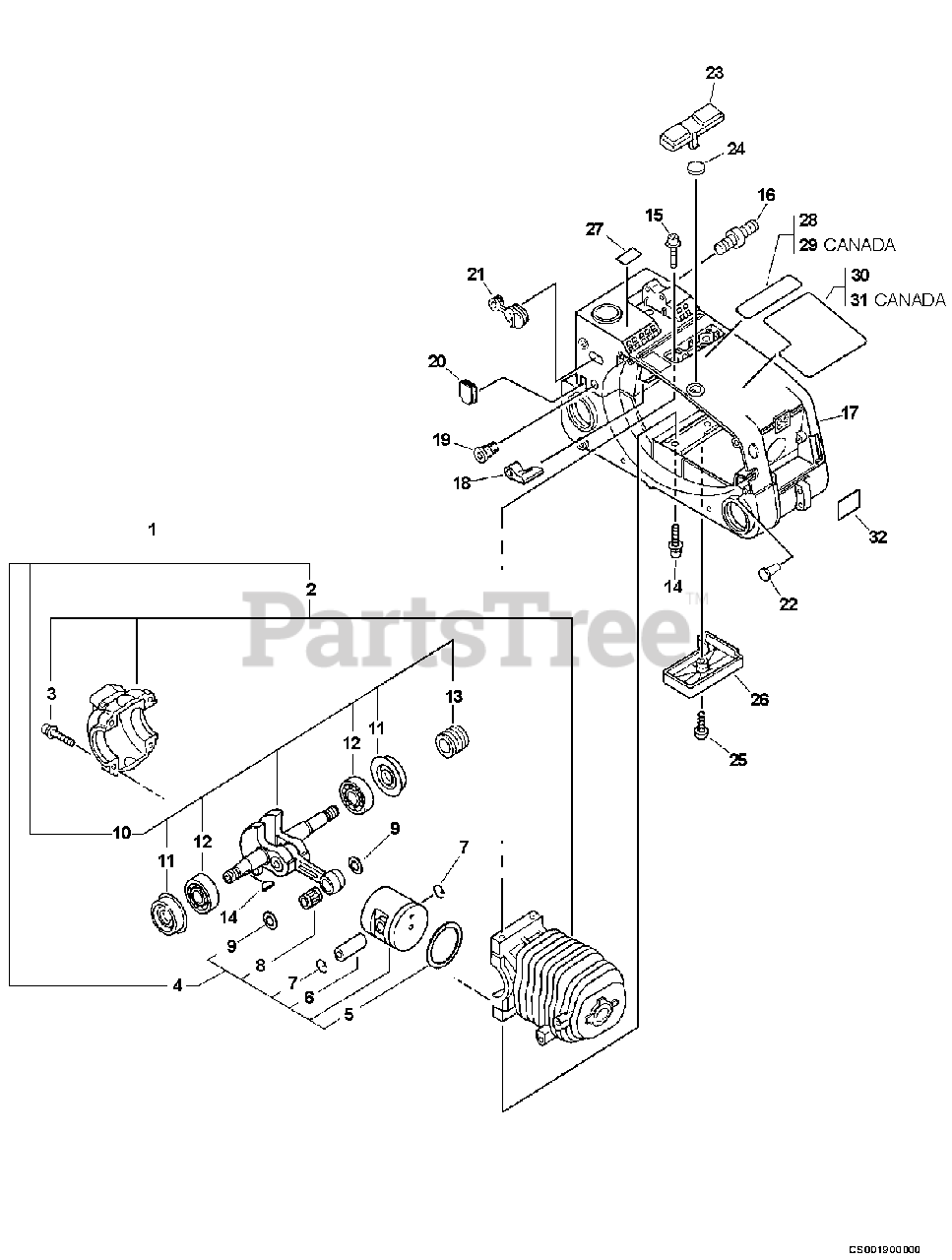

CS-301 - Echo Chainsaw (SN: 04001001 - 04999999) Engine, Short Block, Engine Cover Parts Diagram

Chainsaw

Engine, Short Block, Engine Cover Parts Diagram

  • Title

1

Echo SB1052

SHORT BLOCK -- SB1052

Note: INCLUDES ITEMS 2-12

$186.99

$

Usually ships in 2-4 days

0

2

Echo P021002021

CRANKCASE KIT
(Superseded to P021002022)

Note: Includes ITEM 3

$173.99

$

Usually ships in 2-4 days

0

3

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo 10000039130

PISTON KIT

Note: INCLUDES ITEMS 5-9

$81.99

$

Usually ships in 2-4 days

0

5

Echo 10001146430

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

6

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo P021007231

CRANKSHAFT ASSY
(Superseded to P021007232)

Note: Includes ITEMS 11-12

$

$

Not available

11

Echo 10021338330

SEAL, OIL

$5.99

$

In Stock, Qty 12

0

12

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

13

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

14

Echo 10014239130

KEY

$2.99

$

In Stock, only 2 left!

0

15

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

16

Echo V224000031

STUD, GUIDE BAR

$1.99

$

In Stock, Qty 19

0

17

Echo A190000021

COVER, ENGINE - GRAY
(Superseded to A190000022)

$93.99

$

In Stock, only 1 left!

0

18

Echo 13033639530

PLUG

$5.99

$

In Stock, only 2 left!

0

19

Echo 12902339131

GROMMET

$2.49

$

Usually ships in 2-4 days

0

20

Echo 10403439130

PLUG

$3.49

$

Usually ships in 2-4 days

0

21

Echo 17881039630

GROMMET

$5.99

$

Usually ships in 2-4 days

0

22

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

23

Echo 10402939230

COVER - GRAY

$9.49

$

In Stock, only 4 left!

0

24

Echo 16391139130

PLUG

$1.99

$

Usually ships in 2-4 days

0

25

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

26

Echo 10404439230

COVER, BOTTOM - GRAY

$25.99

$

Usually ships in 2-4 days

0

27

Echo 89016739230

LABEL - PURGE PUMP

$3.99

$

Usually ships in 2-4 days

0

28

Echo 89022839131

LABEL - CAUTION -- SPANISH

$4.49

$

Usually ships in 2-4 days

0

29

Echo 89017639431

LABEL - NOISE

$3.99

$

Usually ships in 2-4 days

0

30

Echo X524000311

LABEL - KICK BACK
(Superseded to X524000313)

$4.99

$

Usually ships in 2-4 days

0

31

Echo X524000990

LABEL - KICK BACK

$6.49

$

Usually ships in 2-4 days

0

32

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
