CS-301 - Echo Chainsaw (SN: 02001001 - 02999999) Clutch Parts Diagram

Chainsaw

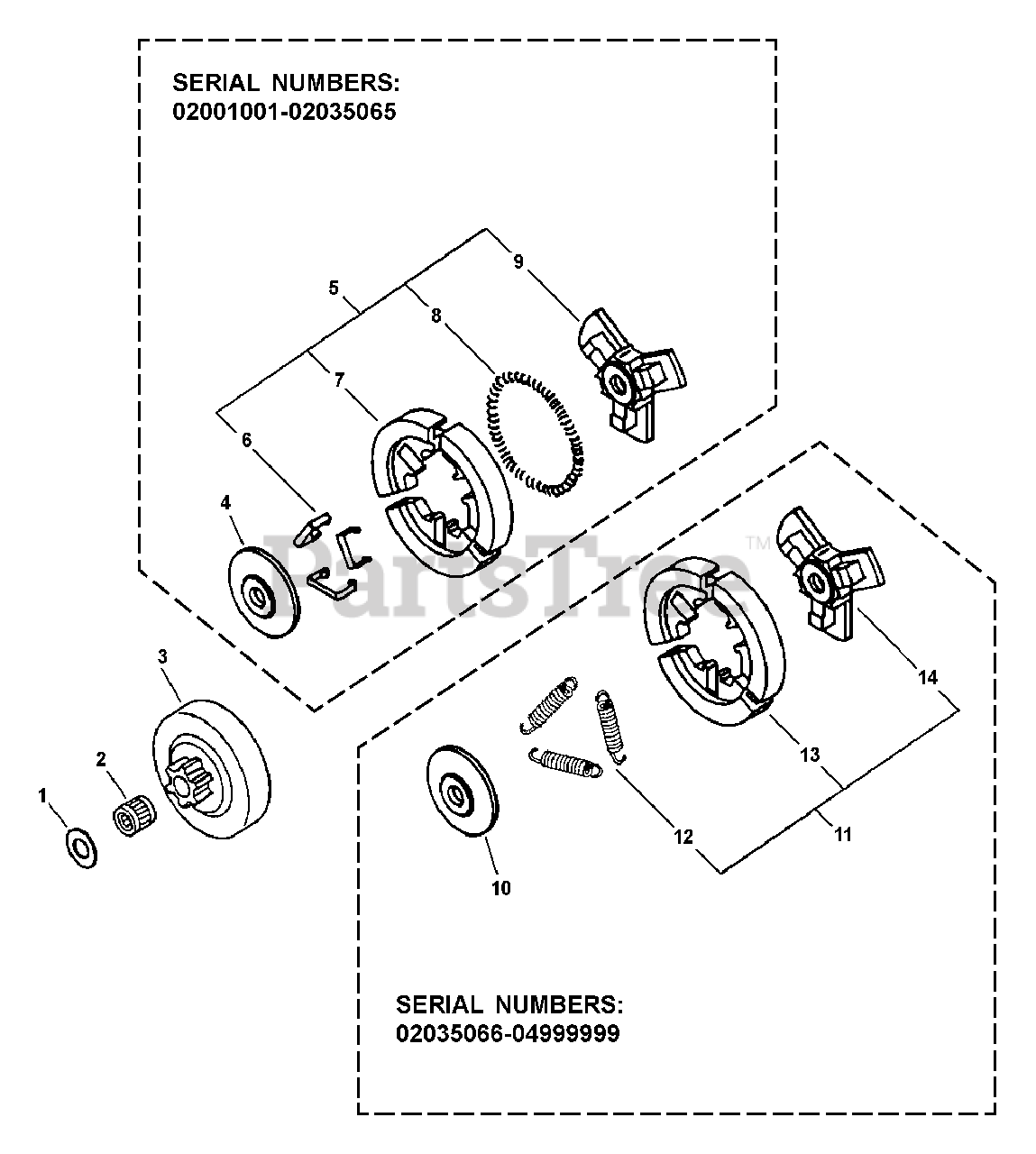

Clutch Parts Diagram

  • Title

1

Echo 17501439131

WASHER

$2.49

$

In Stock, only 4 left!

0

2

Echo 17501235630

BEARING, NEEDLE

$13.99

$

In Stock, Qty 11

0

3

Echo 17500539133

DRUM, CLUTCH

$22.99

$

In Stock, Qty 5

0

4

Echo 17501939430

PLATE, CLUTCH

Note: S/N: 02001001-02035065

$8.49

$

In Stock, Qty 6

0

5

Echo A056000010

CLUTCH ASSY

Note: INCLUDES ITEM 6-9; S/N: 02001001-02035065

$54.99

$

In Stock, Qty 5

0

6

Echo 17502259530

CLIP, SPRING

Note: S/N: 02001001-02035065

$3.49

$

In Stock, only 3 left!

0

7

Echo P021000270

CLUTCH SHOE SET

Note: S/N: 02001001-02035065

$34.99

$

In Stock, only 1 left!

0

8

Echo 17501839430

SPRING, CLUTCH

Note: S/N: 02001001-02035065

$3.49

$

In Stock, only 1 left!

0

9

Echo A552000000

HUB, CLUTCH

Note: S/N: 02001001-02035065

$14.99

$

Usually ships in 2-4 days

0

10

Echo A551000010

PLATE, CLUTCH

Note: S/N: 02035066-04999999

$6.49

$

In Stock, Qty 10

0

11

Echo A056000070

CLUTCH ASSY
(Superseded to A056000071)

Note: INCLUDES ITEM 12-14; S/N: 02035066-04999999

$34.99

$

Usually ships in 2-4 days

0

12

Echo V451000470

SPRING, CLUTCH

Note: S/N: 02035066-04999999

$3.49

$

In Stock, Qty 5

0

13

Echo P021005810

CLUTCH SHOE SET

Note: S/N: 02035066-04999999

$30.99

$

In Stock, only 4 left!

0

14

Echo A552000020

HUB, CLUTCH

Note: S/N: 02035066-04999999

$13.99

$

In Stock, Qty 6

0
