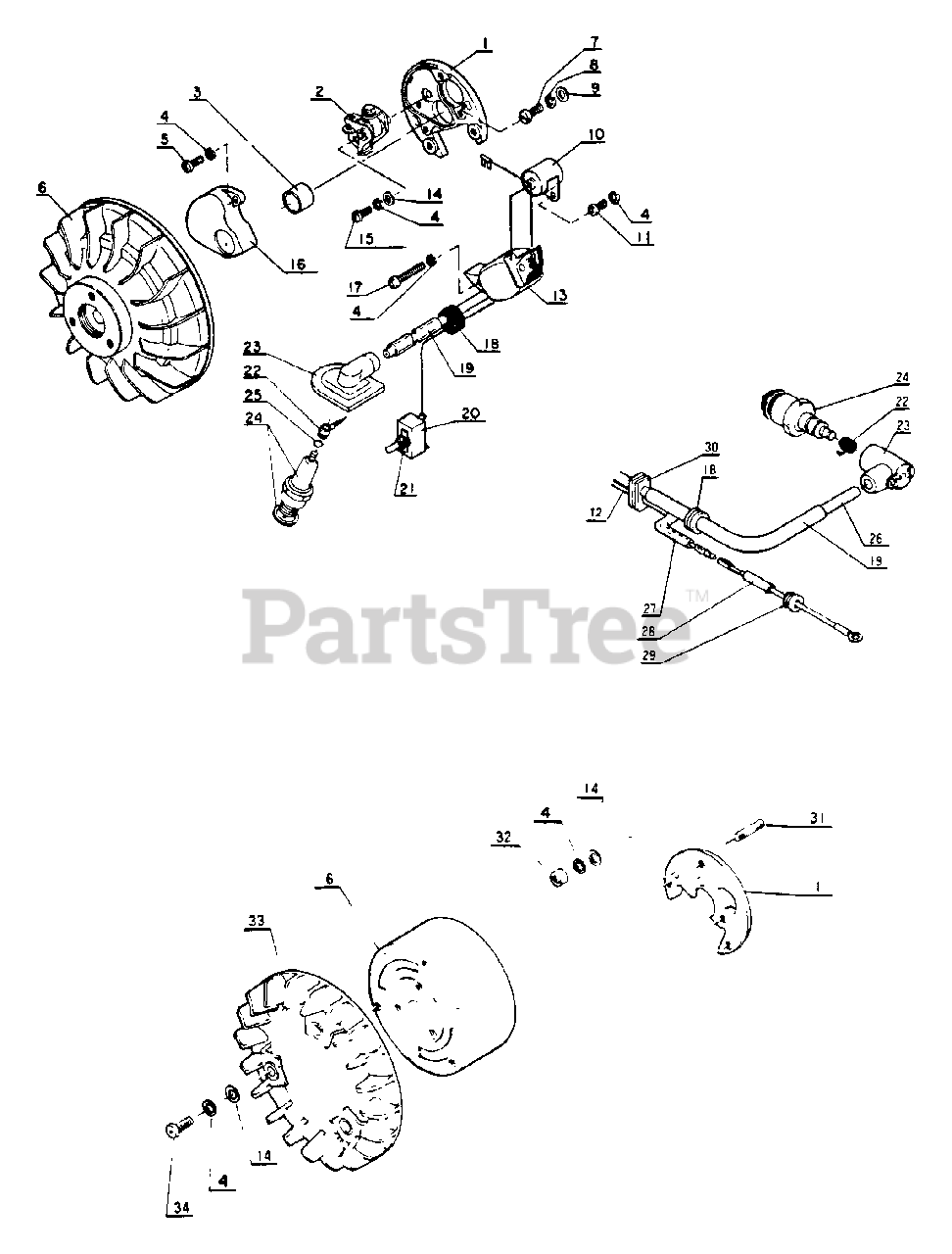

CS-301 - Echo Chainsaw (SN: 00001000 - 02001000) Ignition Parts Diagram

Chainsaw

Ignition Parts Diagram

  • Title

Echo 15000000830

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

Echo 15010000830

STATOR ASSY
(Superseded to Discontinued)

Note: Included in Magneto ass'y

$

$

Not available

1

Echo 15013200830

PLATE, STATOR
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

2

Echo 15010100830

CONTACT POINT SET
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

3

------------------

CAM

Note: Not used on this model

$

$

Not available

4

Echo 90060500004

LOCKWASHER - 4

Note: Included in Stator ass'y

$0.99

$

In Stock, Qty 20+

0

5

------------------

SCREW

Note: Not used on this model

$

$

Not available

6

Echo 15020100830

FAN
(Superseded to Discontinued)

Note: Included in Magneto ass'y

$

$

Not available

7

------------------

SCREW

Note: Not used on this model

$

$

Not available

8

------------------

WASHER - SPRING

Note: Not used on this model

$

$

Not available

9

------------------

WASHER

Note: Not used on this model

$

$

Not available

10

Echo 15012700830

CONDENSER

Note: Included in Stator ass'y

$16.99

$

Usually ships in 2-4 days

0

11

Echo 90021004008

SCREW - 4X8
(Superseded to 90022004008)

Note: Included in Stator ass'y

$0.99

$

In Stock, only 3 left!

0

12

------------------

Stop lead cord

Note: Not used on this model

$

$

Not available

13

Echo 15012600830

COIL, IGNITION
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

14

Echo 90021004008

SCREW - 4X8
(Superseded to 90022004008)

Note: Included in Stator ass'y

$0.99

$

In Stock, only 3 left!

0

15

Echo 90020004008

SCREW - 4X8
(Superseded to 90022004008)

Note: Included in Magneto ass'y

$0.99

$

In Stock, only 3 left!

0

16

------------------

Brecher cover

Note: Not used on this model

$

$

Not available

17

Echo 90021004020

SCREW - 4X20
(Superseded to 90022004020)

Note: Included in Stator ass'y

$0.99

$

Usually ships in 2-4 days

0

18

Echo 15011000430

BUSHING

$

$

Currently unavailable

19

Echo 15011100430

TUBE
(Superseded to Discontinued)

$

$

Not available

20

------------------

SWITCH, IGNITION

Note: Not used on this model

$

$

Not available

21

------------------

CAP

Note: Not used on this model

$

$

Not available

22

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 18

0

23

Echo 15901200630

CAP, SPARK PLUG
(Superseded to 15901203433)

$6.99

$

In Stock, Qty 8

0

24

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

25

------------------

Spark plug clip

Note: Not used on this model

$

$

Not available

26

Echo 15012900430

LEAD, SPARK PLUG
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

27

Echo 15011300830

TUBE
(Superseded to Discontinued)

$

$

Not available

28

------------------

Stop lead cord

Note: Not used on this model

$

$

Not available

29

------------------

BUSHING

Note: Not used on this model

$

$

Not available

30

Echo 15011200830

BUSHING
(Superseded to Discontinued)

$

$

Not available

31

Echo 10025700830

STUD
(Superseded to Discontinued)

$

$

Not available

32

Echo 15011600830

NUT
(Superseded to Discontinued)

$

$

Not available

33

Echo 15021000830

FAN
(Superseded to Discontinued)

$

$

Not available

34

Echo 90021004012

SCREW - 4X12
(Superseded to 90022004012)

$0.99

$

Usually ships in 2-4 days

0
