CS-301 - Echo Chainsaw (SN: 00001000 - 02001000) Clutch Parts Diagram

Chainsaw

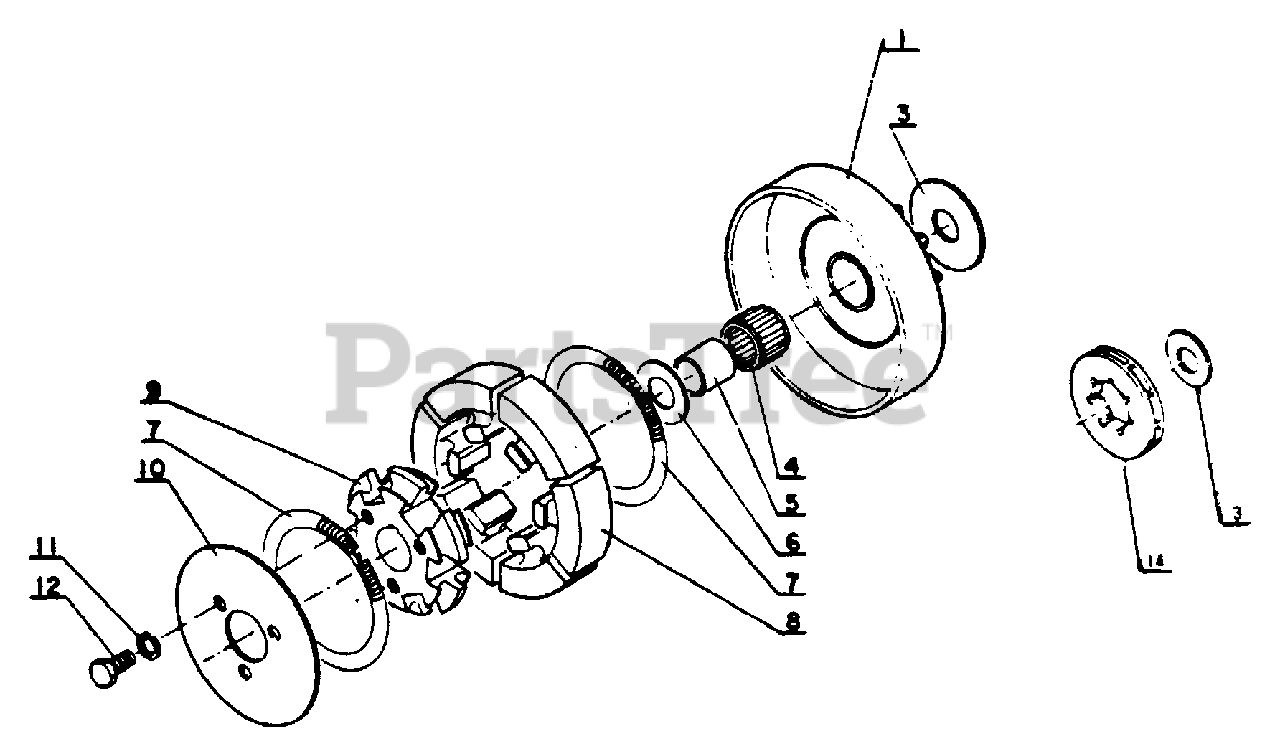

Clutch Parts Diagram

  • Title

1

Echo 17500700830

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

3

Echo 17501400830

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

4

Echo 17501200830

BEARING, NEEDLE
(Superseded to 17501200831)

$15.99

$

In Stock, only 3 left!

0

5

------------------

SPACER

Note: Not used on this model

$

$

Not available

6

Echo 17501500830

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

Echo 17500000830

CLUTCH ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 17501801220

SPRING, CLUTCH
(Superseded to 17501804531)

Note: Included in Clutch ass'y

$

$

Not available

8

Echo 17501700830

SHOE, CLUTCH
(Superseded to Discontinued)

Note: Included in Clutch ass'y

$

$

Not available

9

Echo 17501600830

HUB, CLUTCH
(Superseded to Discontinued)

Note: Included in Clutch ass'y

$

$

Not available

10

Echo 17501900830

PLATE, CLUTCH
(Superseded to Discontinued)

Note: Included in Clutch ass'y

$

$

Not available

11

------------------

WASHER - SPRING

Note: Not used on this model

$

$

Not available

12

------------------

BOLT

Note: Not used on this model

$

$

Not available

14

Echo 17503300830

SPROCKET, RIM
(Superseded to Discontinued)

$

$

Not available
