CS-3000 - Echo Chainsaw (Type 1) (SN: 00001001 - 99999999) Engine, Engine Cover Parts Diagram

Chainsaw (Type 1)

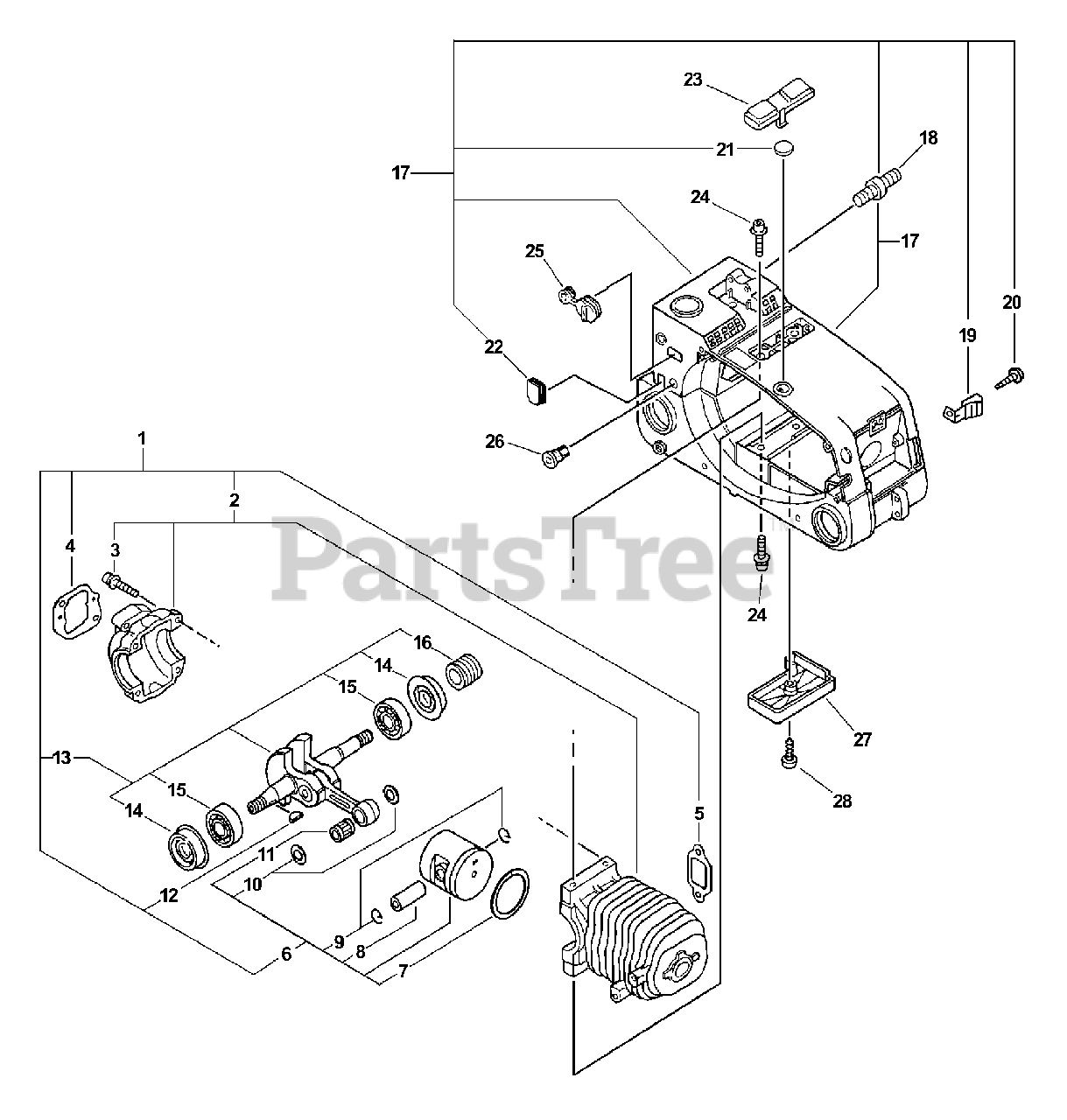

Engine, Engine Cover Parts Diagram

  • Title

1

Echo SB1018

SHORT BLOCK -- SB1018
(Superseded to Discontinued)

Note: INCLUDES 2-16; OPTIONAL ENGINE REPOWER

$

$

Not available

2

------------------

CRANKCASE SET

Note: Includes ITEM 3

$

$

Not available

3

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo V103000120

GASKET, INTAKE

$1.49

$

In Stock, only 1 left!

0

5

Echo 14551013931

GASKET, EXHAUST

$2.49

$

In Stock, Qty 9

0

6

Echo 10000039130

PISTON KIT

Note: INCLUDES ITEMS 7-10

$81.99

$

Usually ships in 2-4 days

0

7

Echo 10001146430

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

8

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

10

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

11

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

12

Echo 10014239130

KEY

$2.99

$

In Stock, only 2 left!

0

13

------------------

CRANKSHAFT ASSY

Note: Includes ITEMS 14-16

$

$

Not available

14

Echo 10021338330

SEAL, OIL

$5.99

$

In Stock, Qty 14

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

16

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

17

Echo 10400439231

ENGINE COVER KIT
(Superseded to 10400439233)

Note: INCLUDES ITEMS 18-22; TYPE 1 - S/N 001001 & UP, TYPE 1E - S/N 001001-665925, CANADA - S/N 001001-004033

$103.99

$

Usually ships in 2-4 days

0

18

Echo V224000031

STUD, GUIDE BAR

Note: TYPE 1 - S/N 001001 & UP, TYPE 1E - S/N 001001-665925, CANADA - S/N 001001-004033

$1.99

$

In Stock, Qty 20+

0

19

Echo 10421539131

LATCH

Note: TYPE 1 - S/N 001001 & UP, TYPE 1E - S/N 001001-665925, CANADA - S/N 001001-004033

$4.49

$

In Stock, only 1 left!

0

20

Echo 90025304010

SCREW - 4X10

Note: TYPE 1 - S/N 001001 & UP, TYPE 1E - S/N 001001-665925, CANADA - S/N 001001-004033

$0.99

$

In Stock, Qty 20+

0

17

Echo A190000020

COVER, ENGINE
(Superseded to A190000021)

Note: INCLUDES ITEM 18; TYPE 1E - S/N 665926 & UP, CANADA - S/N 004034 & UP

$93.99

$

In Stock, only 1 left!

0

18

Echo V224000031

STUD, GUIDE BAR

Note: TYPE 1E - S/N 665926 & UP, CANADA - S/N 004034 & UP

$1.99

$

In Stock, Qty 20+

0

21

Echo 16391139130

PLUG

Note: S/N 001001 & UP

$1.99

$

Usually ships in 2-4 days

0

22

Echo 10403439130

PLUG

Note: S/N 001001 & UP

$3.49

$

Usually ships in 2-4 days

0

23

Echo 10402939230

COVER - GRAY

Note: S/N 001001 & UP

$9.49

$

In Stock, only 4 left!

0

24

Echo 9111005016

SCREW - 5X16

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 20+

0

25

Echo 12901039130

GROMMET
(Superseded to 12901039131)

Note: S/N 001001 & UP

$2.99

$

Usually ships in 2-4 days

0

25

Echo 17881039630

GROMMET

Note: S/N 001001 & UP

$5.99

$

In Stock, only 1 left!

0

26

Echo 12902339131

GROMMET

Note: S/N 001001 & UP

$2.49

$

Usually ships in 2-4 days

0

27

Echo 10404439230

COVER, BOTTOM - GRAY

Note: S/N 001001 & UP

$25.99

$

Usually ships in 2-4 days

0

28

Echo 90025604016

SCREW - 4X16

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 20+

0
