CS-3000 - Echo Chainsaw (Type 1) (SN: 00001001 - 99999999) Chainbrake Assembly Parts Diagram

Chainsaw (Type 1)

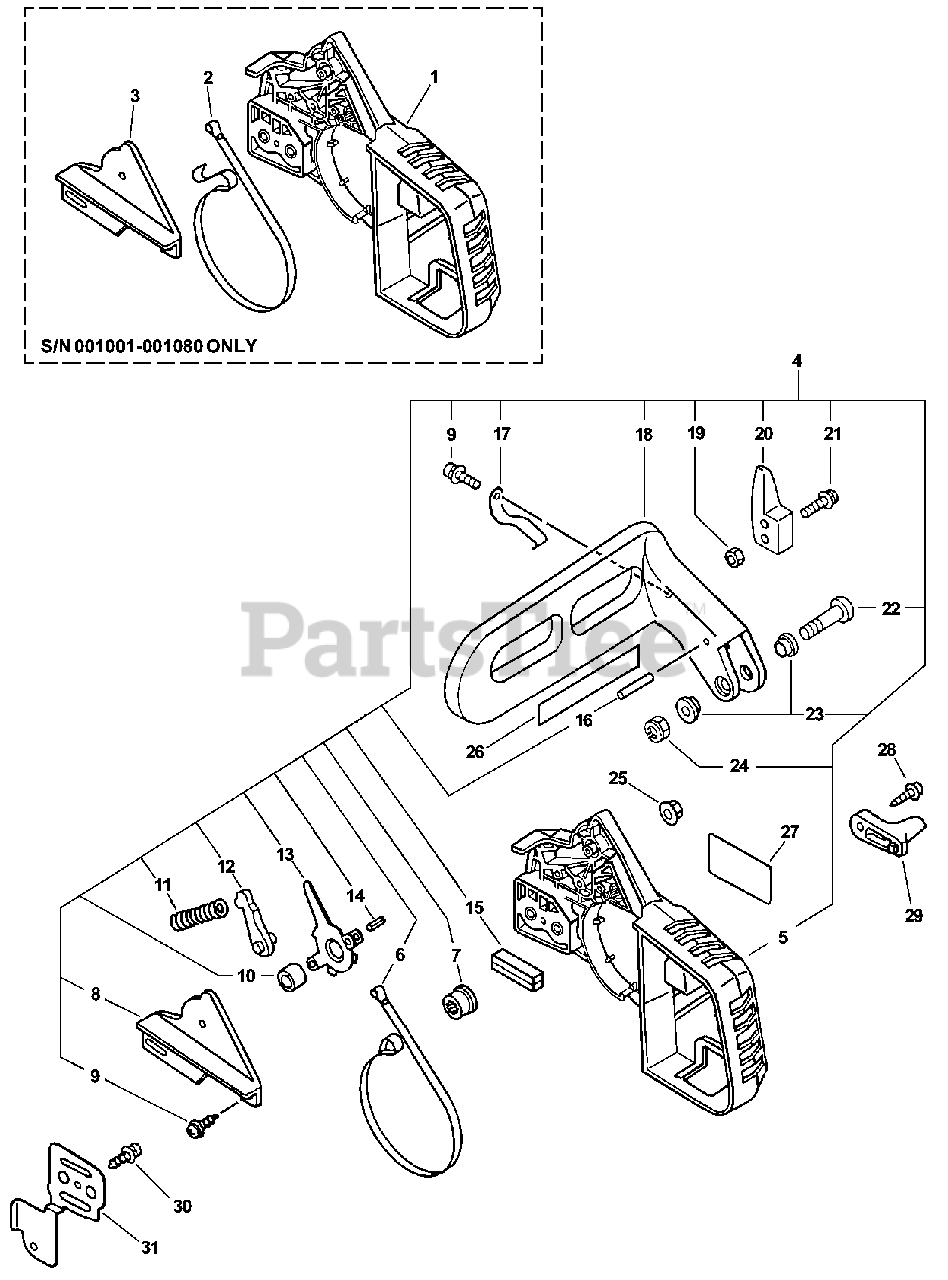

Chainbrake Assembly Parts Diagram

  • Title

1

Echo 43300539233

GUARD, SPROCKET

Note: S/N 001001-001080

$29.99

$

In Stock, only 1 left!

0

2

Echo 43312339130

BAND, BRAKE

Note: S/N 001001-001080

$7.99

$

Usually ships in 2-4 days

0

3

Echo 43331039230

COVER, BRAKE

Note: S/N 001001-001080

$5.49

$

Usually ships in 2-4 days

0

4

Echo 43310039230

CHAIN BRAKE ASSY
(Superseded to 43310039231)

Note: INCLUDES ITEMS 5-24; S/N 001001-001080

$

$

Not available

5

Echo 43300539530

GUARD, SPROCKET

Note: S/N 001081 & UP

$27.99

$

In Stock, only 1 left!

0

6

Echo 43312339530

BAND, BRAKE

Note: S/N 001081 & UP

$7.99

$

Usually ships in 2-4 days

0

7

Echo 43314235430

ADJUSTER, BRAKE BAND

Note: S/N 001081 & UP

$3.49

$

In Stock, only 1 left!

0

8

Echo 43331039530

COVER, BRAKE - GRAY

Note: S/N 001081 & UP

$5.49

$

Usually ships in 2-4 days

0

9

Echo 90025304010

SCREW - 4X10

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 20+

0

10

Echo 43311635430

SPACER - 8

Note: S/N 001001 & UP

$5.49

$

In Stock, only 3 left!

0

11

Echo 43312235430

SPRING, BRAKE

Note: S/N 001001 & UP

$3.49

$

Usually ships in 2-4 days

0

12

Echo 43320935430

STOPPER, BRAKE

Note: S/N 001001 & UP

$4.99

$

Usually ships in 2-4 days

0

13

Echo 43320835431

LEVER, BRAKE

Note: S/N 001001 & UP

$19.99

$

Usually ships in 2-4 days

0

14

Echo 90033040088

PIN - SPRING -- 4X8

Note: S/N 001001 & UP

$1.49

$

In Stock, only 2 left!

0

15

Echo 43331232630

SEAL

Note: S/N 001001 & UP

$1.49

$

In Stock, Qty 7

0

16

Echo 90033040238

ROLLER - 4X23.8

Note: S/N 001001 & UP

$0.99

$

In Stock, only 4 left!

0

17

Echo 43311439130

SPRING, RETURN

Note: S/N 001001 & UP

$2.99

$

In Stock, only 1 left!

0

18

Echo 43311160531

LEVER, BRAKE
(Superseded to P050007300)

Note: S/N 001001 & UP

$16.99

$

Usually ships in 2-4 days

0

19

Echo 90050000004

NUT - 4

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 20+

0

20

Echo 43317139630

WEIGHT, BRAKE

Note: S/N 001001 & UP

$15.99

$

Usually ships in 2-4 days

0

21

Echo 90023804020

SCREW - 4X20

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 6

0

22

Echo 90020905030

SCREW - 5X30

Note: S/N 001001 & UP

$0.99

$

In Stock, only 1 left!

0

23

Echo 43316739130

SPACER

Note: S/N 001001 & UP

$2.99

$

In Stock, Qty 10

0

24

Echo 90056000005

LOCKNUT - 5

Note: S/N 001001 & UP

$1.49

$

In Stock, Qty 20+

0

25

Echo 43301903933

NUT - 6 -- FLANGE

Note: S/N 001001 & UP

$1.49

$

In Stock, Qty 20+

0

26

Echo 89019239532

LABEL - BAR & CHAIN -- US

Note: S/N 001001 & UP

$2.99

$

Usually ships in 2-4 days

0

26

Echo 89035439131

LABEL - BAR & CHAIN -- CANADA
(Superseded to Discontinued)

Note: S/N 001001 & UP

$

$

Not available

27

Echo 89015139130

LABEL - MODEL
(Superseded to 89011239130)

Note: S/N 001001 & UP

$2.49

$

Usually ships in 2-4 days

0

28

Echo 90025305020

SCREW - 5X20 -- TAPPING

Note: S/N 001001 & UP

$1.49

$

In Stock, Qty 20+

0

29

Echo 43302635430

CATCHER, CHAIN

Note: S/N 001001 & UP

$1.99

$

In Stock, Qty 18

0

30

Echo 90025304010

SCREW - 4X10

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 20+

0

31

Echo 43301239131

PLATE, GUIDE - OUTER

Note: S/N 001001 & UP

$7.99

$

In Stock, Qty 9

0
