CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Short Block Parts Diagram

Chainsaw

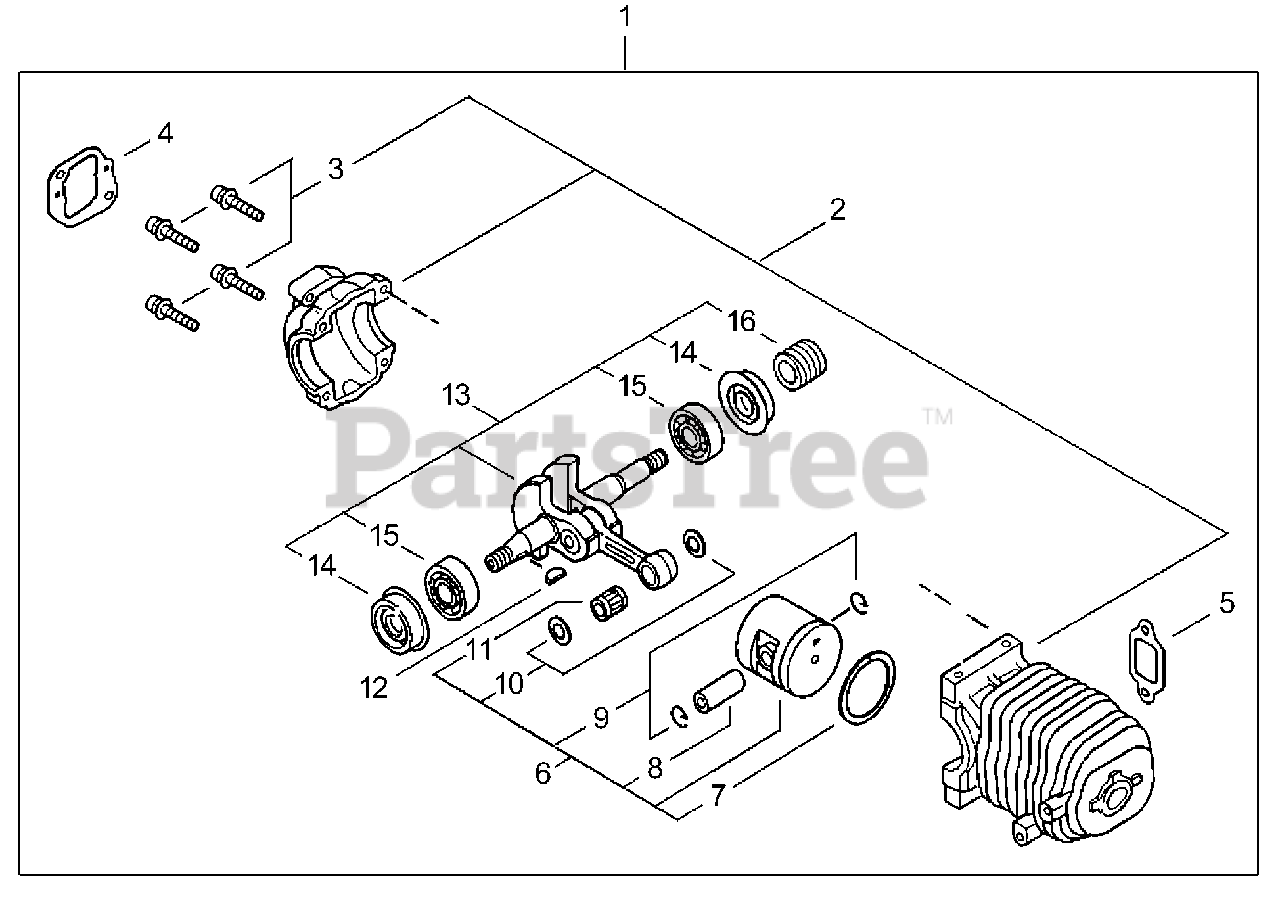

Short Block Parts Diagram

  • Title

1

Echo SB1018

SHORT BLOCK -- SB1018
(Superseded to Discontinued)

$

$

Not available

2

Echo 10020239131

CYLINDER/CRANKCASE KIT

$229.99

$

Usually ships in 2-4 days

0

3

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo V103000120

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

5

Echo 14551013931

GASKET, EXHAUST

$2.49

$

In Stock, Qty 7

0

6

Echo 10000039130

PISTON KIT

$81.99

$

Usually ships in 2-4 days

0

7

Echo 10001146430

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

8

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

10

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

11

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

12

Echo 10014239130

KEY

$2.99

$

In Stock, only 2 left!

0

13

Echo P021011013

CRANKSHAFT ASSY

$183.99

$

Usually ships in 2-4 days

0

14

Echo V505000011

SEAL, OIL - 12

$7.99

$

In Stock, only 3 left!

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

16

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0
