CS-300 - Echo Chainsaw (SN: 04001001 - 04999999) Chain Brake Assembly Parts Diagram

Chainsaw

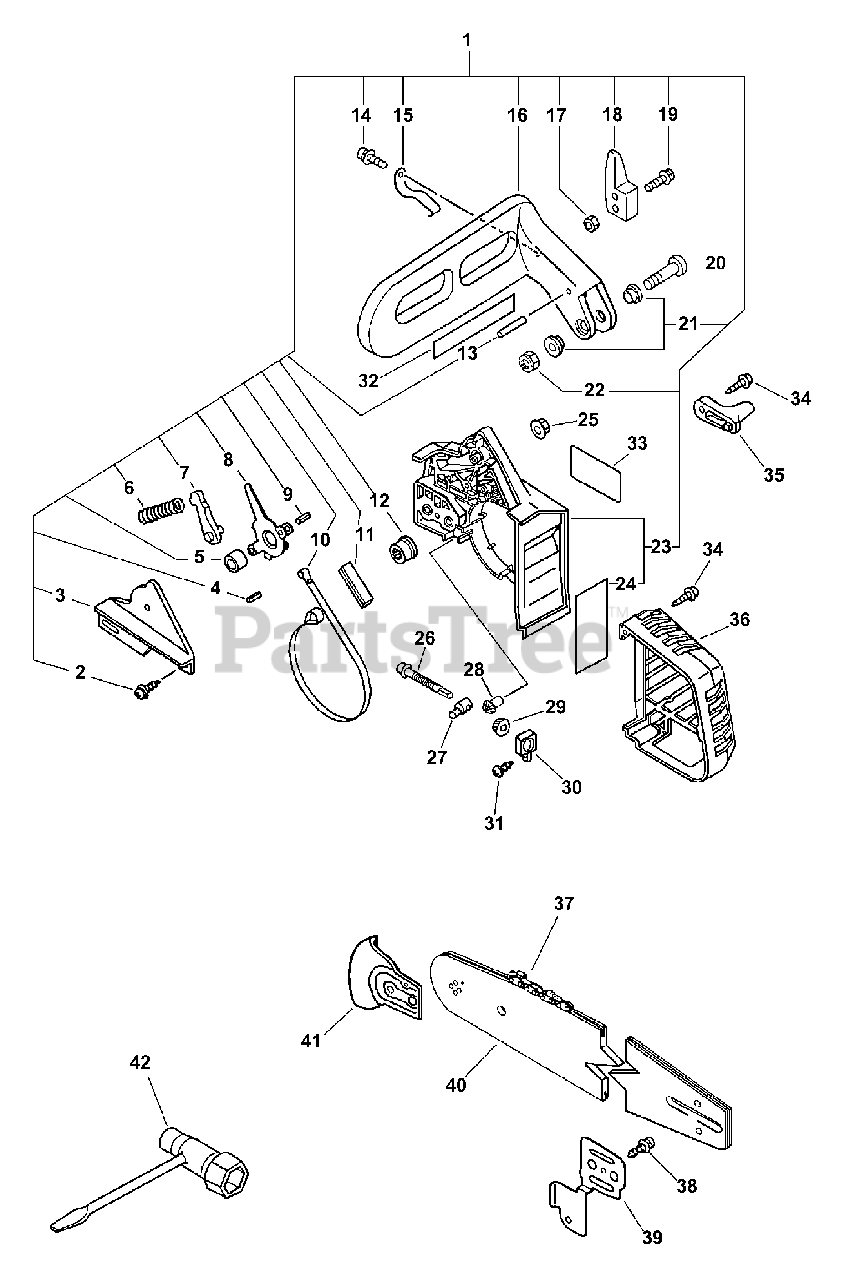

Chain Brake Assembly Parts Diagram

  • Title

1

Echo C032000051

CHAIN BRAKE ASSY
(Superseded to C032000052)

Note: INCLUDES ITEMS 2-24

$82.99

$

In Stock, only 1 left!

0

2

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

3

Echo 43331039530

COVER, BRAKE - GRAY

$5.49

$

Usually ships in 2-4 days

0

4

Echo 90034225012

PIN - SPRING -- 2.5X12

$1.49

$

In Stock, only 3 left!

0

5

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

6

Echo 43312235430

SPRING, BRAKE

$3.49

$

Usually ships in 2-4 days

0

7

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

8

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

9

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 3 left!

0

10

Echo 43312339530

BAND, BRAKE

$7.99

$

In Stock, only 2 left!

0

11

Echo 43331232630

SEAL

$1.49

$

In Stock, Qty 7

0

12

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 3 left!

0

13

Echo 90033040238

ROLLER - 4X23.8

$0.99

$

In Stock, only 4 left!

0

14

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

15

Echo 43311439130

SPRING, RETURN

$2.99

$

In Stock, only 1 left!

0

16

Echo 43314739131

LEVER, BRAKE - ORANGE

$16.99

$

In Stock, Qty 5

0

17

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

18

Echo 43317139630

WEIGHT, BRAKE

$15.99

$

Usually ships in 2-4 days

0

19

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

20

Echo 9131805032

SCREW - 5X32

$0.99

$

In Stock, Qty 20+

0

21

Echo 43316739130

SPACER

$2.99

$

In Stock, Qty 10

0

22

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

23

Echo C300000041

GUARD, SPROCKET - GRAY
(Superseded to C300000042)

Note: Includes ITEM 24

$28.99

$

In Stock, Qty 6

0

24

Echo V341000000

DEFLECTOR, HEAT

$0.99

$

In Stock, Qty 18

0

25

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

26

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 12

0

27

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

28

Echo V651000000

GEAR - PINION
(Superseded to V651000001)

$7.99

$

In Stock, Qty 20+

0

29

Echo V651000010

GEAR - BEVEL
(Superseded to V651000011)

$7.99

$

In Stock, Qty 20+

0

30

Echo V355000140

BRACKET, TENSIONER

$0.99

$

In Stock, Qty 20+

0

31

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

32

Echo X524000790

LABEL - BAR & CHAIN
(Superseded to X524000791)

$0.99

$

Usually ships in 2-4 days

0

32

Echo X524000810

LABEL - BAR & CHAIN

Note: CANADA S/N: 04001001-04999999

$5.49

$

Usually ships in 2-4 days

0

33

Echo X503002900

LABEL - MODEL CS-300

$4.99

$

Usually ships in 2-4 days

0

34

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

35

Echo 43302635430

CATCHER, CHAIN

$1.99

$

In Stock, Qty 18

0

36

Echo A320000033

COVER, EXHAUST

$4.99

$

In Stock, Qty 6

0

37

Echo 91VG45CQ

SAW CHAIN - 12" (30cm)
(Superseded to 91PX45CQ)

Note: GAUGE: .050" / PITCH: .375"

$20.99

$

In Stock, Qty 6

0

37

Echo 91VG52CQ

SAW CHAIN - 14" (35cm)
(Superseded to 91PX52CQ)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

In Stock, only 1 left!

0

37

Echo 91VG57CQ

SAW CHAIN - 16" (40cm)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

In Stock, Qty 10

0

38

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

39

Echo 43301239131

PLATE, GUIDE - OUTER

$7.99

$

In Stock, Qty 9

0

40

Echo 12A0CD3745

GUIDE BAR - 12" (30cm)
(Superseded to 12A0CD3745C)

Note: GAUGE: .050"

$29.99

$

In Stock, Qty 7

0

40

Echo 14A0CD3752

GUIDE BAR - 14" (35cm)
(Superseded to 14A0CD3752C)

Note: GAUGE: .050"

$42.99

$

Usually ships in 2-4 days

0

40

Echo 16A0CD3757

GUIDE BAR - 16" (40cm)

Note: GAUGE: .050"

$46.99

$

In Stock, Qty 10

0

41

Echo 2894901

KICK GUARD KIT

$5.49

$

Usually ships in 2-4 days

0

42

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0
