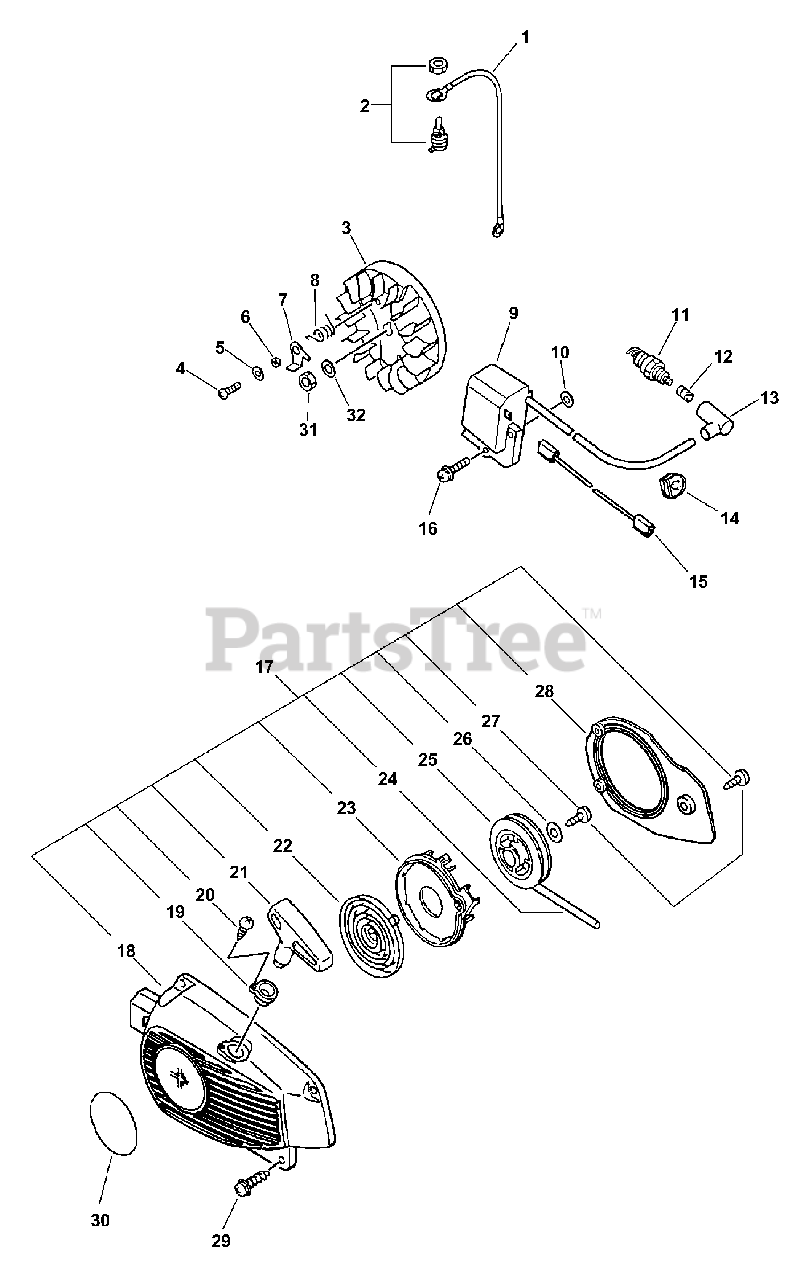

CS-300 - Echo Chainsaw (SN: 03001001 - 03999999) Ignition, Starter Assembly Parts Diagram

Chainsaw

Ignition, Starter Assembly Parts Diagram

  • Title
1

Echo 16201039131

LEAD - GROUND

$5.49

$

In Stock, Qty 11

0

2

Echo 16340019830

IGNITION SWITCH KIT

$9.99

$

In Stock, only 4 left!

0

3

Echo 15680039233

FLYWHEEL

$61.99

$

Usually ships in 2-4 days

0

4

Echo 90021605012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

$1.99

$

In Stock, Qty 9

0

7

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.49

$

In Stock, Qty 15

0

8

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 2 left!

0

9

Echo A411000150

COIL, IGNITION

$75.99

$

In Stock, Qty 6

0

10

$2.99

$

In Stock, only 4 left!

0

11

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

11

Echo A425000000

SPARK PLUG -- BPMR-8Y

Note: CANADA S/N: 04001001-04999999

$3.49

$

In Stock, Qty 20+

0

12

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

13

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

14

$0.99

$

In Stock, Qty 8

0

15

Echo 16201039431

LEAD - IGNITION

$2.99

$

In Stock, Qty 5

0

16

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 15

0

17

Echo 17720039631

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 18-28

$

$

Not available

18

Echo 17723239630

CASE, STARTER - GRAY

$29.99

$

In Stock, Qty 7

0

19

Echo 17722739131

GUIDE, ROPE

$3.99

$

In Stock, only 1 left!

0

20

Echo 90029603014

SCREW - 3X14

$0.99

$

In Stock, only 3 left!

0

21

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$8.49

$

In Stock, Qty 20+

0

22

Echo 17722039631

REWIND SPRING ASSY
(Superseded to P021045370)

$15.99

$

In Stock, Qty 5

0

23

Echo 17722139630

PLATE, STARTER

$2.99

$

In Stock, only 1 left!

0

24

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 17

0

25

Echo A506000000

REEL, ROPE
(Superseded to A506000090)

$10.99

$

In Stock, only 4 left!

0

26

$0.99

$

In Stock, Qty 8

0

27

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 18

0

29

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

30

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, Qty 5

0

31

Echo 90050000008

NUT - 8

Note: S/N: 03001001-03001433

$0.99

$

In Stock, Qty 20+

0

32

Echo 90060000008

WASHER - 8

Note: S/N: 03001001-03001433

$0.99

$

In Stock, Qty 7

0

31

Echo 90051500008

NUT - 8 -- FLANGE

Note: S/N: 03001434-03999999

$1.99

$

In Stock, only 3 left!

0

Echo 99944440000

RePower BULK ROPE - 200 FEET

$29.99

$

In Stock, Qty 9

0
