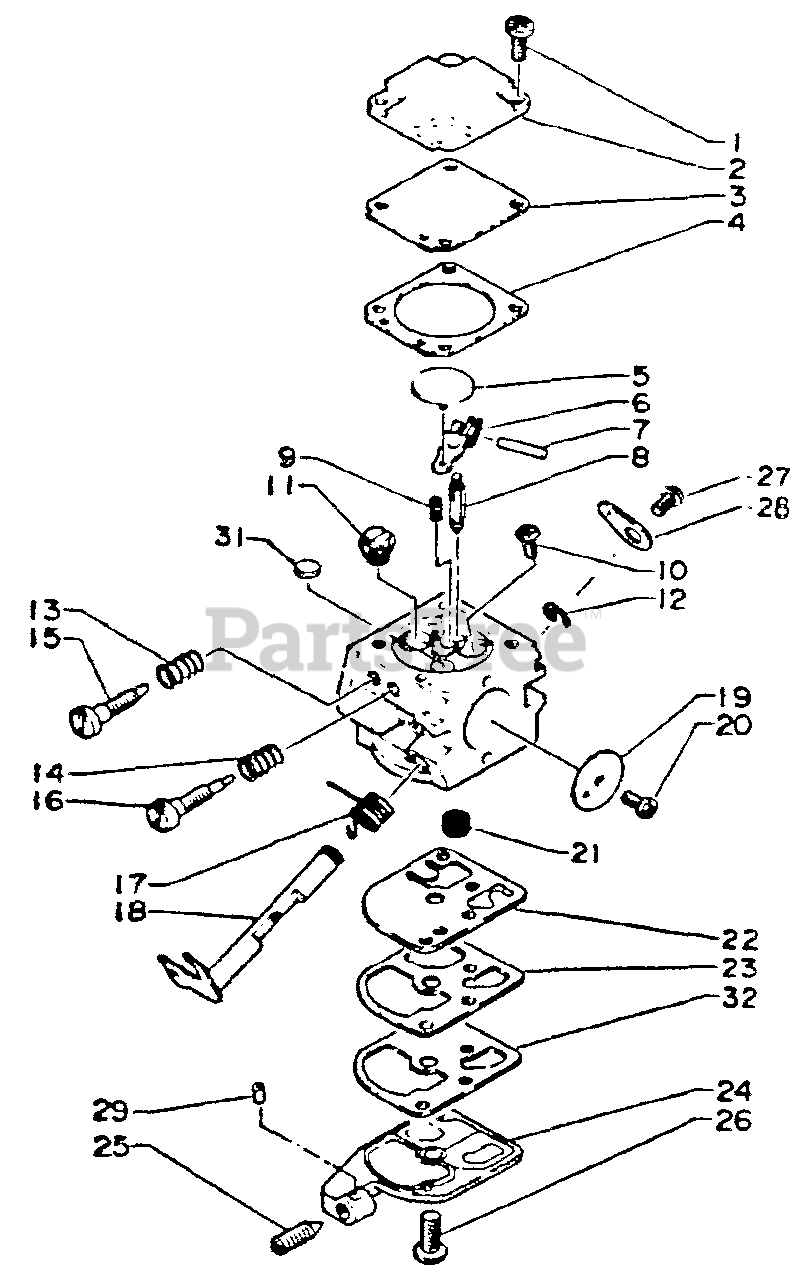

CS-280 E - Echo Chainsaw (SN: 0120269 - 0313000) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12520013932

CARBURETOR C1S-K1B
(Superseded to 12520013933)

Note: Consists of 1 thru 32

$

$

Not available

1

Echo 12534413930

SCREW
(Superseded to 12534413931)

$2.49

$

In Stock, Qty 12

0

2

Echo 12534213930

COVER, METERING
(Superseded to Discontinued)

$

$

Not available

3

------------------

Diaphragm

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115130

$

$

Not available

4

------------------

GASKET, DIAPHRAGM

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115130

$

$

Not available

5

Echo 12537513930

PLUG, WELCH
(Superseded to Discontinued)

$

$

Not available

6

------------------

LEVER, METERING

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

7

------------------

PIN

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

8

------------------

Needle valve

$

$

Not available

9

------------------

SPRING

$

$

Not available

10

Echo 12533913930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 4 left!

0

11

Echo 12537613930

NOZZLE, CHECK VALVE

Note: Included in Repair Kit P/N 12530015130

$4.49

$

Usually ships in 2-4 days

0

12

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

13

Echo 12531913930

SPRING

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531913930

SPRING

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532013930

NEEDLE - HIGH SPEED

$4.99

$

In Stock, only 1 left!

0

16

Echo 12531813930

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

17

Echo 12531313930

SPRING, RETURN

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12531713930

SHAFT, THROTTLE
(Superseded to 12531713931)

$

$

Not available

19

Echo 12531613930

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12531613930

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

20

------------------

SCREW

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

21

------------------

SCREEN, SPARK ARRESTOR

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

22

------------------

DIAPHRAGM, PUMP

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115130

$

$

Not available

23

------------------

GASKET, FUEL PUMP

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115130

$

$

Not available

24

Echo 12532413931

BASE, PUMP

$7.49

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

26

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

27

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

28

Echo 12535013931

LEVER, THROTTLE

$3.49

$

In Stock, only 1 left!

0

29

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12534513930

PLUG, WELCH
(Superseded to 12530015130)

$12.99

$

Usually ships in 2-4 days

0

32

------------------

Diaphragm surge

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115130

$

$

Not available

32

Echo 12530015130

REPAIR KIT

Note: Includes items 3,4,6,7,8,9,11,20,21,22,23 & 32

$12.99

$

Usually ships in 2-4 days

0

32

Echo 12530115130

DIAPHRAGM/GASKET KIT

Note: Includes items 3,4,22,23 & 32

$13.99

$

Usually ships in 2-4 days

0
