CS-280 E - Echo Chainsaw (SN: 0106531 - 0120268) Unit Complete Parts Diagram

Chainsaw

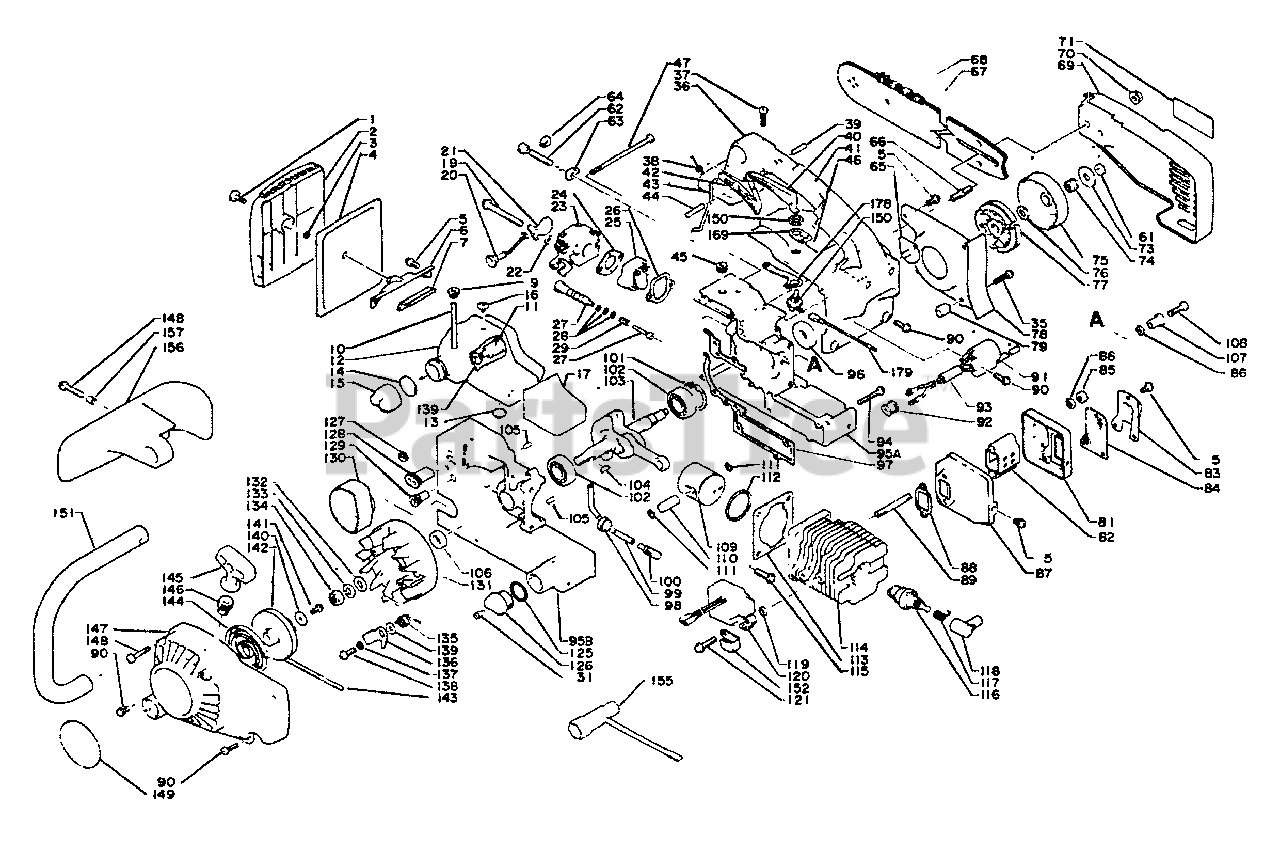

Unit Complete Parts Diagram

  • Title

Echo 13030215032

AIR FILTER COVER ASSY
(Superseded to 13030215033)

Note: Includes item 1-3

$14.99

$

In Stock, only 1 left!

0

1

Echo 13040613933

THUMBSCREW

$4.49

$

In Stock, Qty 10

0

2

Echo 13031315032

COVER, AIR FILTER
(Superseded to 13030215032)

$14.99

$

In Stock, only 1 left!

0

3

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031013930

FILTER, AIR

$16.99

$

Usually ships in 2-4 days

0

5

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

6

Echo 13040513931

BRACKET, AIR CLEANER
(Superseded to 13040513932)

$

$

Not available

7

Echo 13192013930

CUSHION
(Superseded to 13041013932)

$

$

Not available

9

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.49

$

In Stock, Qty 19

0

10

Echo 13200722130

FUEL PIPE KIT
(Superseded to Discontinued)

$

$

Not available

11

Echo 13120500830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

12

Echo 13101013930

TANK, FUEL
(Superseded to 13100034030)

$

$

Not available

13

Echo 10022313931

CUSHION

$1.99

$

Usually ships in 2-4 days

0

Echo 13100413931

CAP ASSY
(Superseded to 13100413933)

Note: Includes ITEMS 14-15

$

$

Not available

14

Echo 13101613930

GASKET, CAP
(Superseded to 13101613932)

$

$

Not available

15

Echo 13101713931

CAP
(Superseded to 13100413933)

$

$

Not available

16

Echo 13131400330

VENT

$11.99

$

Usually ships in 2-4 days

0

17

Echo 13192413930

CUSHION
(Superseded to Discontinued)

$

$

Not available

19

Echo 90024205050

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

20

Echo 17851013930

ROD, CHOKE

$6.49

$

Usually ships in 2-4 days

0

21

Echo 17851513930

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

22

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

23

Echo 12520013932

CARBURETOR C1S-K1B
(Superseded to 12520013933)

$

$

Not available

24

Echo 13001606430

GASKET, INTAKE
(Superseded to 13001606431)

$0.99

$

In Stock, Qty 20+

0

25

Echo 13000013931

INSULATOR
(Superseded to 13000013932)

$

$

Not available

26

Echo 13001013930

GASKET, INTAKE
(Superseded to 13001013931)

$0.99

$

In Stock, Qty 7

0

27

Echo 43700013930

AUTO-OILER ASSY
(Superseded to 43700011230)

Note: Includes item 28-29

$

$

Not available

28

Echo 43702002830

O-RING - 5

$1.99

$

Usually ships in 2-4 days

0

29

Echo 43701902830

SPRING

$1.49

$

In Stock, Qty 6

0

35

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

36

Echo 35101013932

HANDLE - TOP
(Superseded to 35110113932)

$

$

Not available

37

Echo 90024204018

SCREW - 4X18

$0.99

$

In Stock, Qty 7

0

38

Echo 17809113930

SPRING
(Superseded to 17809113931)

$

$

Not available

39

Echo 90034050018

PIN - SPRING -- 5X18

$1.49

$

In Stock, only 4 left!

0

40

Echo 17809013930

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

41

Echo 35101213930

GRIP, HANDLE

$7.49

$

Usually ships in 2-4 days

0

42

Echo 17801013930

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

43

Echo 17801113930

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

44

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

45

Echo 17821000230

GROMMET

$0.99

$

In Stock, Qty 8

0

46

Echo 89015113930

LABEL
(Superseded to 89015113932)

$1.49

$

Usually ships in 2-4 days

0

47

Echo 10024413930

SCREW

$0.99

$

Usually ships in 2-4 days

0

61

Echo 10013903930

LOCKNUT - 6
(Superseded to Discontinued)

$

$

Not available

62

Echo 43301613930

SCREW, TENSIONER
(Superseded to 43301613931)

$3.99

$

In Stock, only 1 left!

0

63

Echo 43301411230

TENSIONER, CHAIN
(Superseded to 43301403932)

$4.99

$

In Stock, Qty 20+

0

64

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 15

0

65

Echo 10061413930

PLUG
(Superseded to Discontinued)

$

$

Not available

66

Echo 43301113930

STUD, GUIDE BAR
(Superseded to Discontinued)

$

$

Not available

67

------------------

GUIDE BAR

$

$

Not available

68

------------------

CHAIN, SAW

$

$

Not available

69

Echo 43300513930

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

70

Echo 43301903932

NUT - 6 -- FLANGE
(Superseded to 43301903933)

$1.49

$

In Stock, Qty 20+

0

71

Echo 8901371393

LABEL - ECHO

$

$

Currently unavailable

73

Echo 17501513931

WASHER

$3.49

$

Usually ships in 2-4 days

0

74

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

76

Echo 17501411231

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

77

Echo 17500013930

CLUTCH ASSY
(Superseded to Discontinued)

$

$

Not available

78

Echo 17530513930

PLATE, SEAL
(Superseded to Discontinued)

$

$

Not available

79

Echo 17531113930

SPACER
(Superseded to Discontinued)

$

$

Not available

Echo 14580313931

MUFFLER ASSY
(Superseded to 14580313932)

Note: Includes ITEMS 5, 81-84, 87-88

$

$

Not available

5

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

81

Echo 14586113930

LID, MUFFLER
(Superseded to 14586115030)

$13.99

$

Usually ships in 2-4 days

0

82

Echo 14585913930

BAFFLE, MUFFLER

$6.49

$

Usually ships in 2-4 days

0

83

Echo 14587613931

GUIDE, EXHAUST

$2.99

$

Usually ships in 2-4 days

0

84

Echo 14586213931

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

87

Echo 14585813931

GUIDE, EXHAUST

$22.99

$

Usually ships in 2-4 days

0

88

Echo 14551013930

GASKET, EXHAUST
(Superseded to 14551013931)

$2.49

$

In Stock, Qty 6

0

85

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

86

Echo 90060200005

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

89

Echo 10101407131

STUD

$1.49

$

Usually ships in 2-4 days

0

90

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

91

Echo 15662614930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

92

Echo 15611413930

GROMMET

$1.49

$

Usually ships in 2-4 days

0

93

Echo 15661313930

TUBE

$2.49

$

Usually ships in 2-4 days

0

94

Echo 90024204030

SCREW - 4X30

$0.99

$

In Stock, Qty 14

0

95

Echo 10020013933

CRANKCASE KIT
(Superseded to 10020413930)

Note: Includes ITEM 105

$

$

Not available

95A

Echo 10020013933

CRANKCASE KIT
(Superseded to 10020413930)

$

$

Not available

95B

Echo 10020013933

CRANKCASE KIT
(Superseded to 10020413930)

$

$

Not available

105

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

96

Echo 10021303930

SEAL, OIL
(Superseded to 10021203930)

$5.49

$

In Stock, only 2 left!

0

97

Echo 10024213931

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

98

Echo 13211511130

GROMMET
(Superseded to 13211511131)

$2.49

$

In Stock, Qty 18

0

99

Echo 43720513930

PIPE - OIL
(Superseded to Discontinued)

$

$

Not available

100

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

101

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

102

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

103

Echo 10010013931

CRANKSHAFT ASSY

$255.99

$

Usually ships in 2-4 days

0

104

Echo 10013106520

KEY

$1.49

$

Usually ships in 2-4 days

0

106

Echo 10021211230

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

107

Echo 43300013930

CATCHER, CHAIN
(Superseded to 43300013931)

Note: Includes ITEMS 86 & 108

$2.99

$

Usually ships in 2-4 days

0

86

Echo 90060200005

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

108

Echo 90022005020

SCREW - 5X20

$0.99

$

In Stock, only 1 left!

0

109

Echo 10001013931

PISTON
(Superseded to 10000013931)

$

$

Not available

110

Echo 10001313930

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

111

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

112

Echo 10001105731

RING, PISTON

$7.49

$

In Stock, only 1 left!

0

113

Echo 10101013930

GASKET, CYLINDER
(Superseded to 10101013931)

$

$

Not available

114

Echo 10101113930

CYLINDER
(Superseded to 10103413930)

$

$

Not available

115

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

116

Echo 15901013930

SPARK PLUG -- CJ-8Y
(Superseded to 15901012330)

$

$

Not available

117

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

118

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

119

Echo 15211705530

SPACER
(Superseded to 15011716430)

$2.99

$

In Stock, only 2 left!

0

120

Echo 15660115030

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

121

Echo 90024205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

Echo 43600113932

CAP ASSY
(Superseded to 43600113934)

Note: Includes ITEMS 31, 125-126

$15.99

$

In Stock, Qty 5

0

31

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

125

Echo 90072000016

O-RING - 16

$1.49

$

In Stock, Qty 11

0

126

Echo 43601313932

CAP, OIL TANK
(Superseded to 43600113934)

$15.99

$

In Stock, Qty 5

0

127

Echo 17881003330

GROMMET

$1.49

$

In Stock, only 1 left!

0

128

Echo 12901013930

GROMMET
(Superseded to Discontinued)

$

$

Not available

129

Echo 12901513930

GROMMET
(Superseded to Discontinued)

$

$

Not available

130

Echo 13103813930

SEAL
(Superseded to Discontinued)

$

$

Not available

131

Echo 15680013930

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

132

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

133

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

134

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

135

Echo 17723413930

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

136

Echo 17721813930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

137

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0

138

Echo 17721713930

SCREW
(Superseded to 90021605012)

$0.99

$

Usually ships in 2-4 days

0

139

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

Echo 17720013931

STARTER ASSY
(Superseded to 17720013932)

Note: Includes ITEMS 140-147

$

$

Not available

140

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

141

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 6

0

142

Echo 17721506530

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

143

Echo 99944440000

RePower BULK ROPE - 200 FEET

$29.99

$

In Stock, Qty 7

0

144

Echo 17722006530

SPRING, REWIND

$13.99

$

In Stock, Qty 9

0

145

Echo 17722811130

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

146

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

147

Echo 10150713931

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

148

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

149

Echo 89001211132

LABEL - ECHO
(Superseded to 89001211133)

$6.49

$

In Stock, only 4 left!

0

150

Echo 16340006520

IGNITION SWITCH KIT
(Superseded to Discontinued)

$

$

Not available

151

Echo 35120513931

HANDLE - FRONT
(Superseded to 35120313930)

$76.99

$

Usually ships in 2-4 days

0

152

Echo 15911213930

CLAMP
(Superseded to Discontinued)

$

$

Not available

155

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

156

Echo 35182613930

GUARD
(Superseded to 35182613931)

$

$

Not available

157

Echo 35182713930

SPACER

$6.49

$

Usually ships in 2-4 days

0

169

Echo 89015713930

LABEL - SWITCH
(Superseded to 89015716830)

$

$

Not available

178

Echo 16341313930

PLATE - GROUND

$1.49

$

Usually ships in 2-4 days

0

179

Echo 16202113931

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

75

Echo 17500515330

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available
