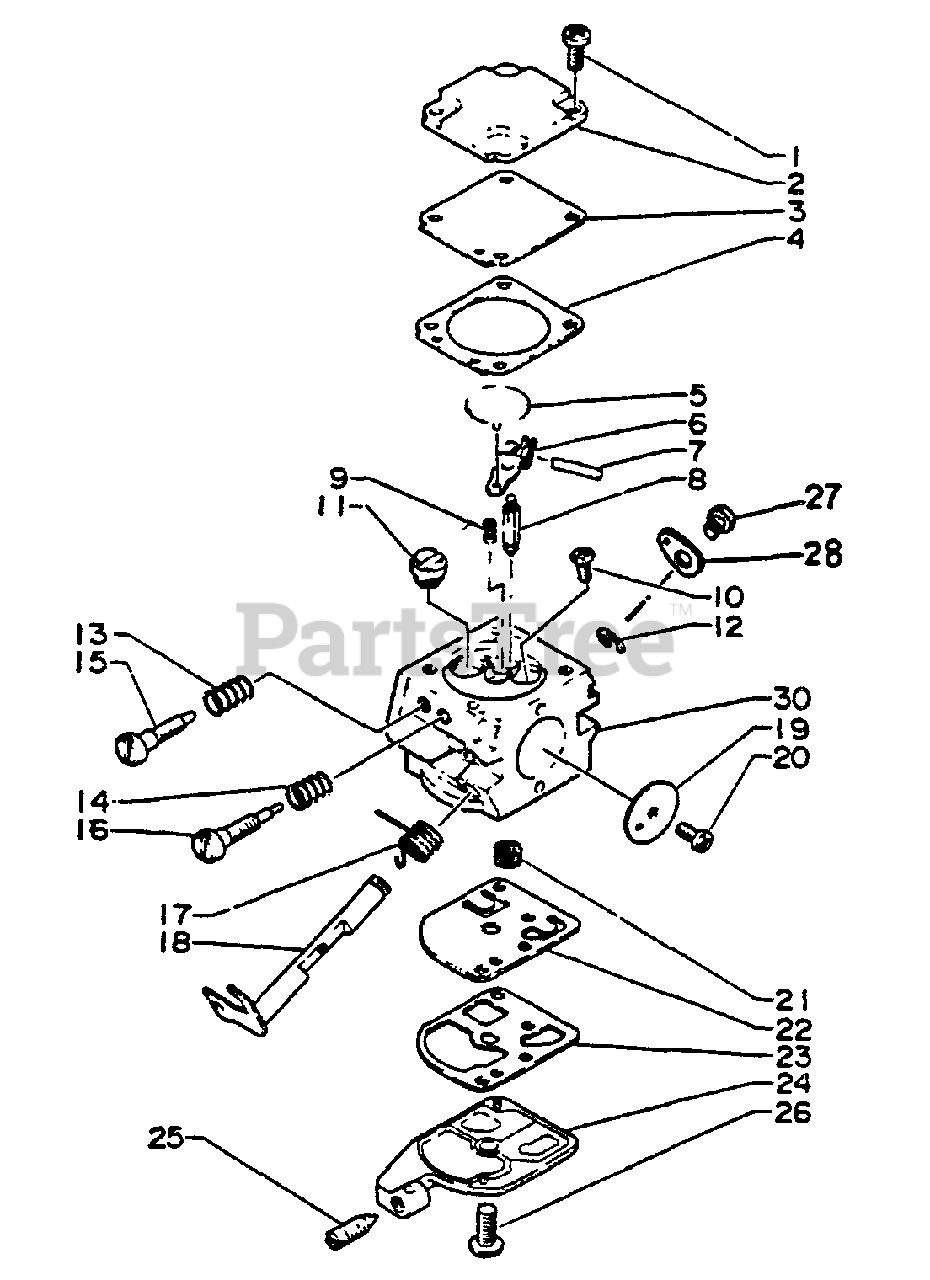

CS-280 E - Echo Chainsaw (SN: 0055490 - 0106530) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12520013930

CARBURETOR
(Superseded to 12520013932)

Note: Includes ITEMS 1-28

$

$

Not available

1

Echo 12534413930

SCREW
(Superseded to 12534413931)

$2.49

$

In Stock, Qty 12

0

2

Echo 12534213930

COVER, METERING
(Superseded to Discontinued)

$

$

Not available

3

------------------

DIAPHRAGM

$

$

Not available

4

------------------

GASKET, METERING

$

$

Not available

5

Echo 12537513930

PLUG, WELCH
(Superseded to Discontinued)

$

$

Not available

6

------------------

LEVER, METERING

$

$

Not available

7

------------------

PIN, METERING LEVER

$

$

Not available

8

------------------

NEEDLE, INLET

$

$

Not available

9

------------------

SPRING, METERING LEVER

$

$

Not available

10

Echo 12533913930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 4 left!

0

11

------------------

ORIFICE, MAIN FUEL

$

$

Not available

12

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

13

$1.49

$

Usually ships in 2-4 days

0

14

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532013930

NEEDLE - HIGH SPEED

$4.99

$

In Stock, only 1 left!

0

16

Echo 12531813930

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

17

Echo 12531313930

SPRING, RETURN

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12531713930

SHAFT, THROTTLE
(Superseded to 12531713931)

$

$

Not available

19

Echo 12531613930

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

20

------------------

SCREW

$

$

Not available

21

------------------

STRAINER

$

$

Not available

22

------------------

DIAPHRAGM, PURGE

$

$

Not available

23

------------------

GASKET, PURGE

$

$

Not available

24

Echo 12532413930

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

26

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

27

$0.99

$

In Stock, Qty 6

0

28

Echo 12535013930

LEVER, THROTTLE
(Superseded to 12535013931)

$3.49

$

In Stock, only 1 left!

0

30

------------------

UNKNOWN

$

$

Not available

Echo 12530015130

REPAIR KIT

Note: Includes items 3,4,6,7,8,9,20,21,22 & 23

$12.99

$

In Stock, only 1 left!

0

Echo 12535013930

LEVER, THROTTLE
(Superseded to 12535013931)

Note: Includes items 3,4,22 & 23

$3.49

$

In Stock, only 1 left!

0
