CS-271 T - Echo Chainsaw (SN: C67115001001 - C67115999999) Recoil Starter Parts Diagram

Chainsaw

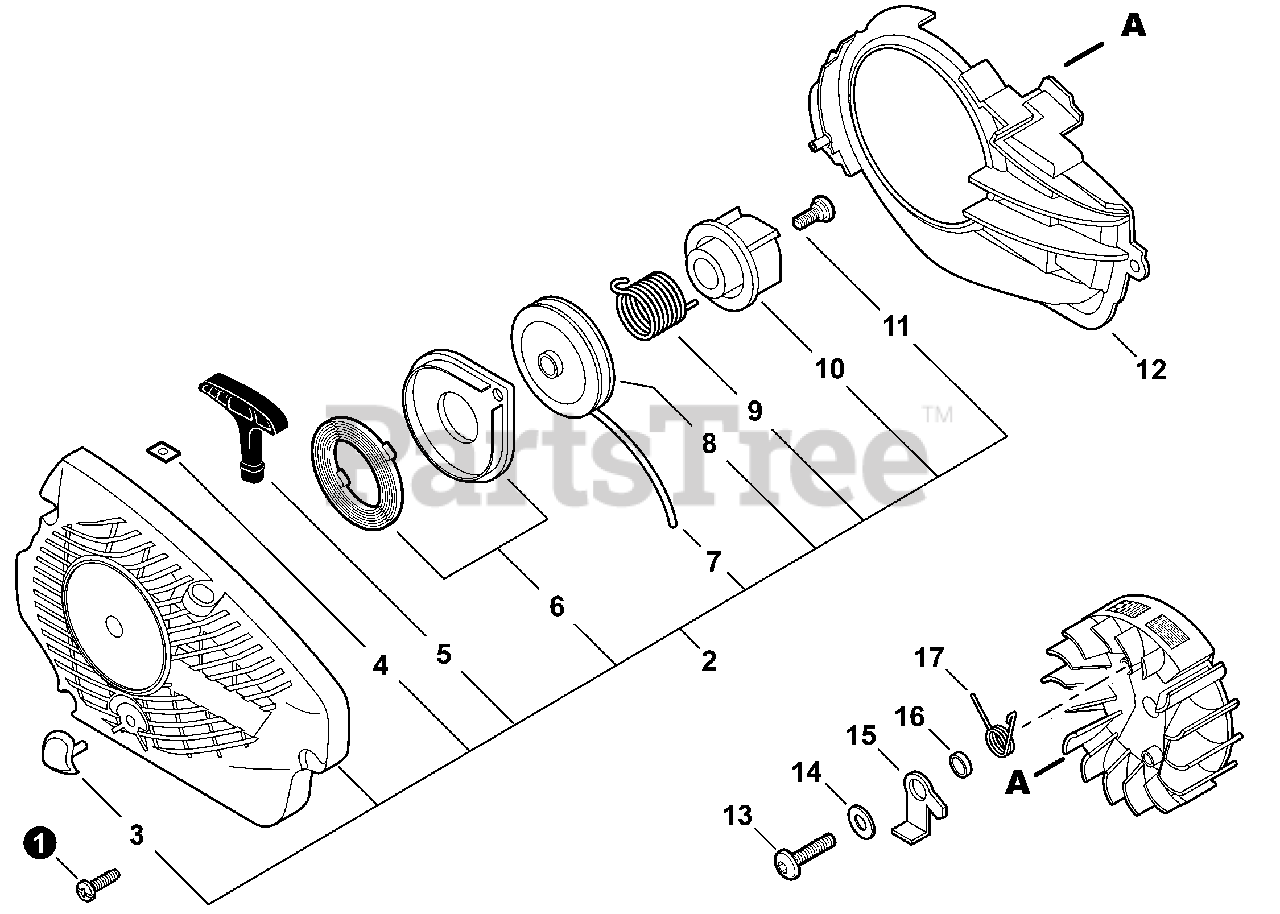

Recoil Starter Parts Diagram

  • Title
1

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

2

Echo A051002540

STARTER ASSY, RECOIL

Note: Includes Items 3-11

$88.99

$

Usually ships in 2-4 days

0

$4.49

$

Usually ships in 2-4 days

0

4

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, Qty 7

0

5

Echo P022001320

GRIP, STARTER

$3.99

$

Usually ships in 2-4 days

0

6

Echo P022001330

SPRING KIT, RECOIL

$17.99

$

In Stock, Qty 12

0

7

Echo P022006220

ROPE, STARTER

$10.99

$

Usually ships in 2-4 days

0

8

Echo A506000460

REEL, ROPE

$16.99

$

In Stock, only 1 left!

0

9

Echo V452001320

SPRING, TORSION

$8.49

$

In Stock, only 2 left!

0

10

Echo A507000110

PAWL CATCHER

$7.99

$

In Stock, only 3 left!

0

11

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

12

Echo A172002040

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

13

Echo V203000080

BOLT 5×14

$2.49

$

Usually ships in 2-4 days

0

14

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

15

$3.49

$

In Stock, Qty 15

0

16

Echo 17724704630

SPACER 5.2×8×2.1

$1.99

$

In Stock, Qty 9

0

17

Echo V452000030

SPRING, TORSION

$4.99

$

In Stock, only 2 left!

0
