CS-271 T - Echo Chainsaw (SN: C67115001001 - C67115999999) Oil System Parts Diagram

Chainsaw

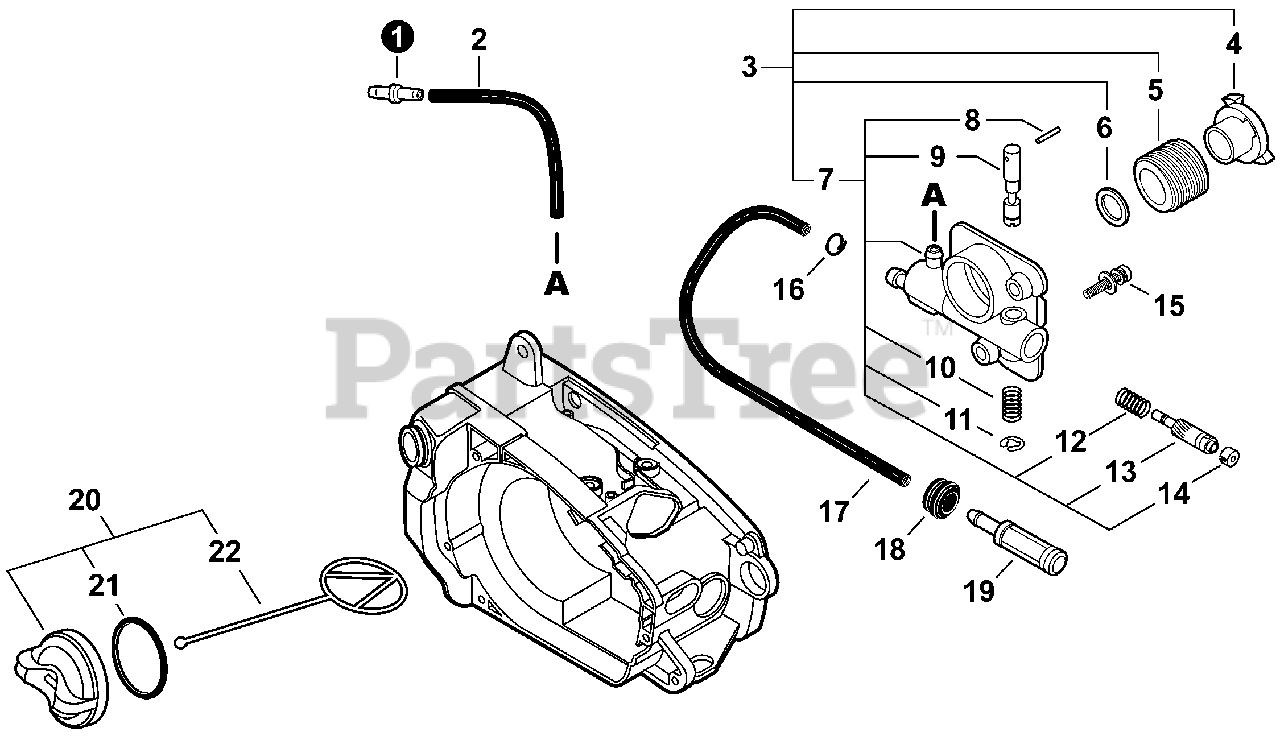

Oil System Parts Diagram

  • Title

1

Echo V187000010

CONNECTOR, PIPE

$4.99

$

Usually ships in 2-4 days

0

2

Echo 13201211960

PIPE, 3×6×45 BLACK
(Superseded to 13201211961)

$4.99

$

In Stock, only 1 left!

0

3

Echo P021010890

AUTO-OILER ASSY

Note: Includes Items 4-14

$71.99

$

In Stock, Qty 8

0

4

Echo V356000290

COLLAR 10

$3.49

$

In Stock, only 2 left!

0

5

Echo V652000030

GEAR, WORM

$11.99

$

Usually ships in 2-4 days

0

6

Echo V308000030

WASHER 10.5×17.4×1.8

$2.99

$

In Stock, only 2 left!

0

7

Echo C022000020

AUTO-OILER

Note: Includes Items 8-14

$57.99

$

In Stock, only 1 left!

0

8

Echo P003002180

PIN, SPRING

$2.99

$

In Stock, only 1 left!

0

9

Echo P003001370

ADJUSTER, OILER

$19.99

$

Usually ships in 2-4 days

0

10

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

11

Echo 12312715030

E-RING

$0.99

$

In Stock, only 2 left!

0

12

Echo 43701938330

SPRING

$3.99

$

Usually ships in 2-4 days

0

13

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

14

Echo 43706238330

CAP, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

15

Echo 90023804012

SCREW 4×12

$0.99

$

In Stock, Qty 6

0

16

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

17

Echo 13201022130

PIPE, FUEL 3×6×150
(Superseded to 13201022131)

$2.49

$

Usually ships in 2-4 days

0

18

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

19

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

20

Echo P021005581

CAP ASSY - BLACK

Note: Includes Items 21-22

$7.49

$

In Stock, Qty 20+

0

21

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

22

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
