CS-271 T - Echo Chainsaw (SN: C32814001001 - C32814999999) Engine Cover Parts Diagram

Chainsaw

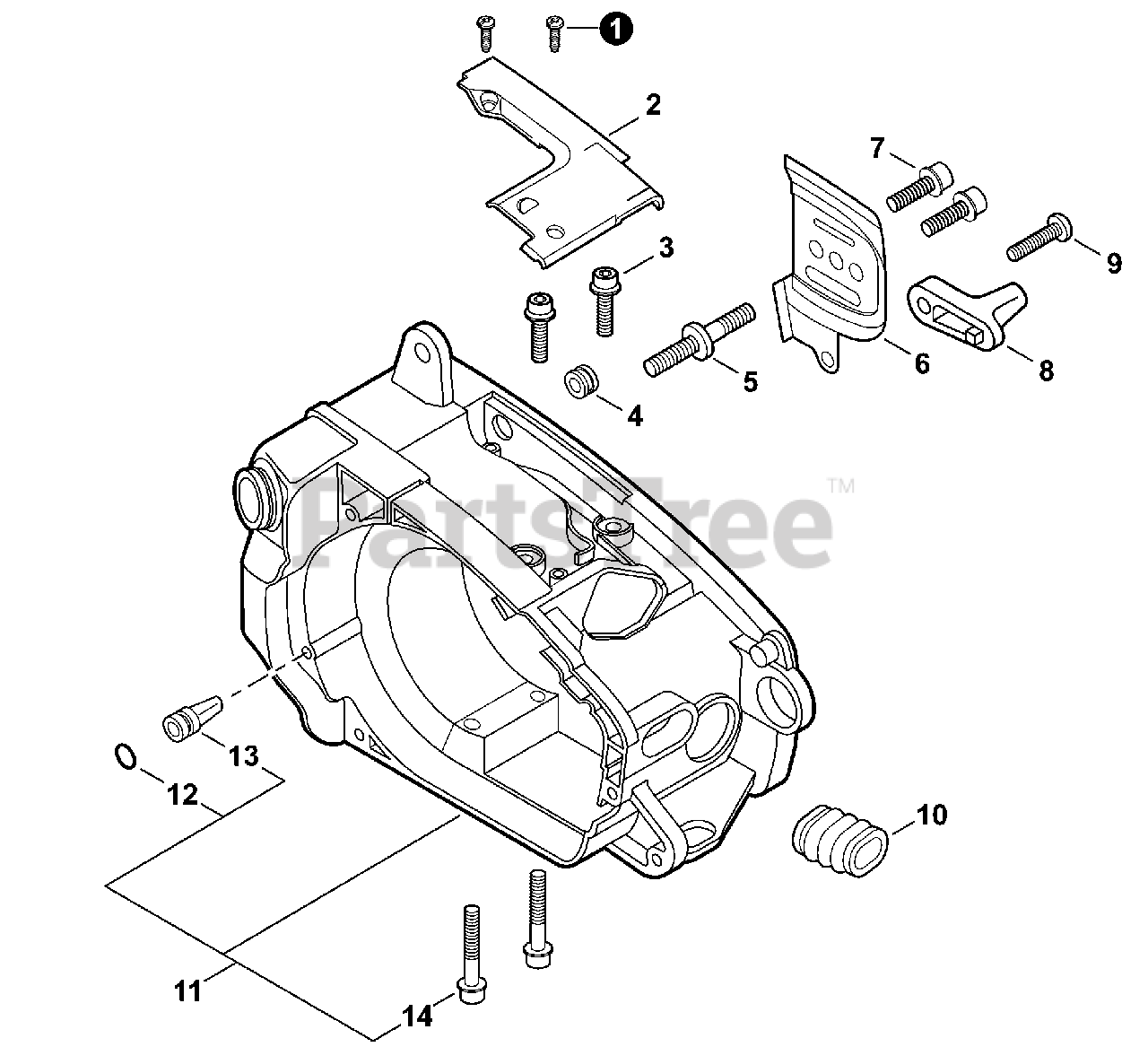

Engine Cover Parts Diagram

  • Title
1

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 12

0

2

Echo A127000021

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

3

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, Qty 5

0

$1.99

$

Usually ships in 2-4 days

0

5

Echo V225000031

BOLT, STUD 8

$2.99

$

In Stock, Qty 20+

0

6

Echo C305000023

PLATE, GUIDE - INNER

$9.99

$

In Stock, only 2 left!

0

7

Echo V202000011

BOLT 4×12

$1.49

$

Usually ships in 2-4 days

0

8

Echo 43302635430

CHAIN CATCHER

$1.99

$

In Stock, Qty 18

0

9

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

0

10

Echo A239000000

BELLOWS, INTAKE

$3.99

$

Usually ships in 2-4 days

0

11

Echo P021003438

COVER, ENGINE
(Superseded to P021003439)

Note: Includes ITEMS 12-14

$83.99

$

Usually ships in 2-4 days

0

12

Echo 90072400004

O-RING S-4

$1.99

$

In Stock, Qty 5

0

13

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

14

Echo 90010605025

BOLT 5×25

$0.99

$

In Stock, only 2 left!

0
