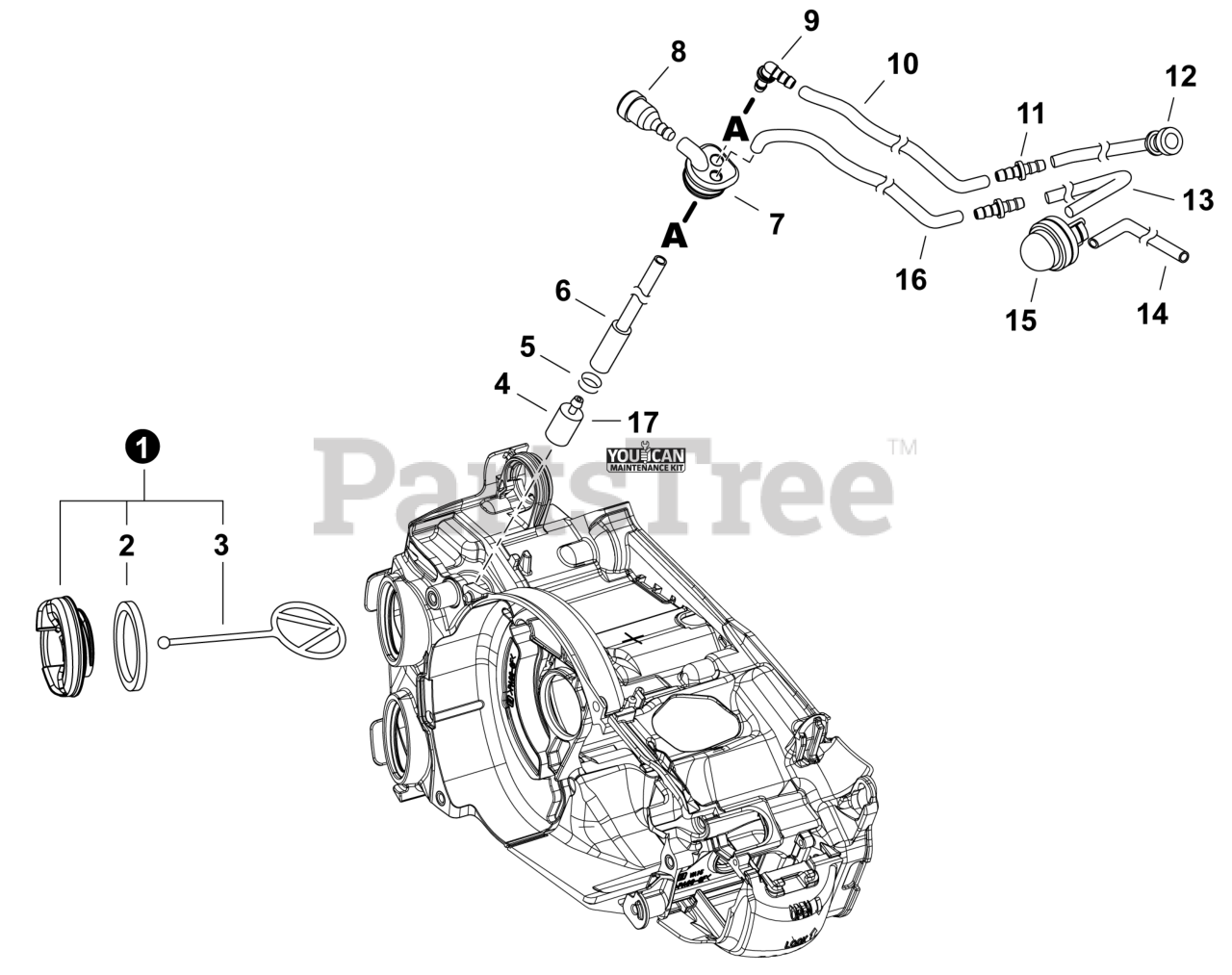

CS-2511 T - Echo Chainsaw (SN: C80115001001 - C80115999999) Fuel System Parts Diagram

Chainsaw

Fuel System Parts Diagram

  • Title

1

Echo A033000410

CAP ASSY, FUEL

Note: Includes Items 2-3

$10.99

$

Usually ships in 2-4 days

0

2

Echo V107000180

GASKET, CAP

$2.49

$

In Stock, only 3 left!

0

3

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

4

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

5

Echo V490000500

CLIP 6

$0.99

$

In Stock, Qty 19

0

6

Echo V470002210

PIPE, FUEL

$2.49

$

In Stock, only 1 left!

0

7

Echo V137000140

GROMMET, FUEL

$6.49

$

In Stock, only 1 left!

0

8

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 10

0

9

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 18

0

10

Echo V471005231

PIPE, FUEL 3x5x95 BLACK

$3.99

$

Usually ships in 2-4 days

0

11

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, only 3 left!

0

12

Echo V470002272

PIPE, FUEL

$2.99

$

Usually ships in 2-4 days

0

13

Echo V471004871

PIPE, FUEL 3x5x56.5 BLACK

$0.99

$

Usually ships in 2-4 days

0

14

Echo V470002181

PIPE, FUEL 2.5x4.5 BLACK

$5.49

$

Usually ships in 2-4 days

0

15

Echo A035000040

BULB, PURGE

$12.99

$

In Stock, only 2 left!

0

16

Echo V471003661

PIPE, FUEL 3x5x115 BLACK

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90201Y

TUNE-UP KIT - YOUCANT

$27.99

$

In Stock, only 1 left!

0
