CS-2511 T - Echo Chainsaw (SN: C71915001001 - C71915999999) Chain Brake Parts Diagram

Chainsaw

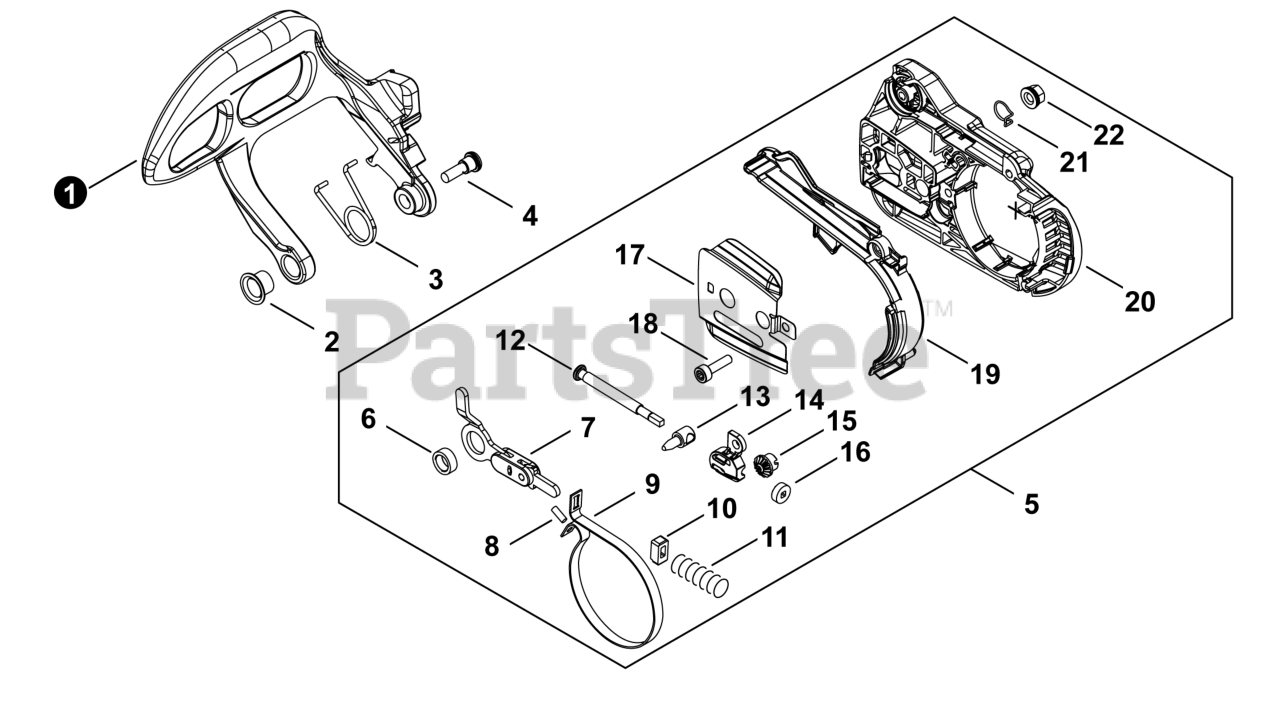

Chain Brake Parts Diagram

  • Title

1

Echo C320000510

LEVER, BRAKE
(Superseded to C320000511)

$27.99

$

In Stock, only 3 left!

0

2

Echo V356000780

COLLAR 10

$2.49

$

In Stock, only 2 left!

0

3

Echo V452001660

SPRING, TORSION

$2.99

$

In Stock, only 1 left!

0

4

Echo V203002270

BOLT 5

$0.99

$

In Stock, only 3 left!

0

5

Echo P100002170

SPROCKET GUARD ASSY

Note: Includes Items 6-22

$89.99

$

In Stock, only 1 left!

0

6

Echo V355000860

COLLAR 8

$1.49

$

Usually ships in 2-4 days

0

7

Echo C334000340

CONNECTOR, BRAKE

$10.99

$

Usually ships in 2-4 days

0

8

Echo 9305030080

PIN

$0.99

$

In Stock, only 2 left!

0

9

Echo C328000330

BAND, BRAKE

$10.99

$

In Stock, only 1 left!

0

10

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

11

Echo V450002080

SPRING, COMPRESSION

$2.99

$

Usually ships in 2-4 days

0

12

Echo V203000041

BOLT 5

$5.99

$

In Stock, Qty 6

0

13

Echo C309000110

TENSIONER, CHAIN

$2.49

$

In Stock, Qty 11

0

14

Echo V355000840

COLLAR 8

$2.99

$

In Stock, only 2 left!

0

15

Echo V651001060

GEAR, BEVEL

$2.99

$

In Stock, only 4 left!

0

16

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

17

Echo C305000521

PLATE, GUIDE - OUTER

$3.49

$

In Stock, only 1 left!

0

18

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

19

Echo C345000640

COVER, BRAKE

$6.99

$

In Stock, only 1 left!

0

20

Echo C300001140

GUARD, SPROCKET

$38.99

$

In Stock, only 2 left!

0

21

Echo C649000420

HOOK

$3.49

$

In Stock, only 2 left!

0

22

Echo V265000550

NUT 8

$2.99

$

In Stock, Qty 20+

0
