CS-2511 T - Echo Chainsaw (SN: C71915001001 - C71915999999) Carburetor Parts Diagram

Chainsaw

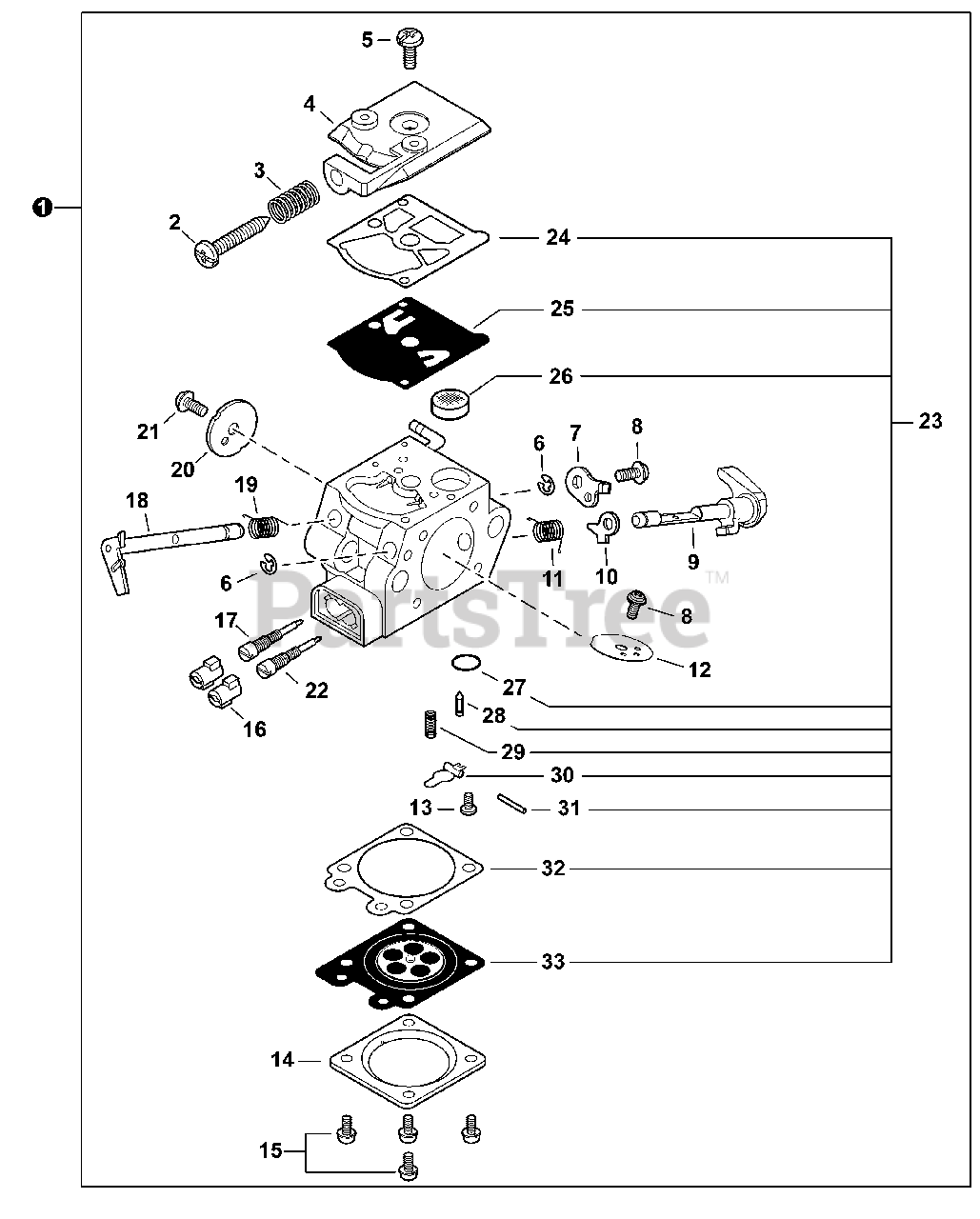

Carburetor Parts Diagram

  • Title
1

Echo A021004690

CARBURETOR WT-1208

Note: Includes Items 2-33

$103.99

$

Usually ships in 2-4 days

0

2

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

3

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 15

0

4

Echo P003005980

COVER, FUEL PUMP

$17.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, only 1 left!

0

6

$0.99

$

In Stock, only 2 left!

0

7

Echo P003000380

LEVER, THROTTLE

$1.99

$

In Stock, only 1 left!

0

$1.49

$

In Stock, Qty 13

0

9

Echo P003005760

SHAFT ASSY, CHOKE

$18.99

$

Usually ships in 2-4 days

0

10

Echo P003-001510

LEVER, FAST IDLE
(Superseded to Discontinued)

$

$

Not available

11

$7.49

$

In Stock, only 1 left!

0

12

Echo P003000410

VALVE, CHOKE

$9.49

$

In Stock, only 2 left!

0

13

$3.99

$

In Stock, only 1 left!

0

14

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

15

$1.99

$

Usually ships in 2-4 days

0

16

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

17

Echo P003004820

NEEDLE, MIXTURE

$4.49

$

Usually ships in 2-4 days

0

18

Echo P003-001300

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

19

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

20

Echo P003005750

VALVE, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

21

$0.99

$

In Stock, only 2 left!

0

22

Echo 12311839231

NEEDLE, MIXTURE
(Superseded to Discontinued)

$

$

Not available

23

Echo P033000030

REPAIR KIT, CARBURETOR

Note: Includes Items 24-33

$8.49

$

In Stock, Qty 13

0

24

Echo 12312515030

GASKET, FUEL PUMP

$2.49

$

In Stock, Qty 9

0

25

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 2 left!

0

26

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 17

0

27

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

28

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

29

Echo 12312239830

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

31

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

32

Echo 12314027230

GASKET, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

33

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0
