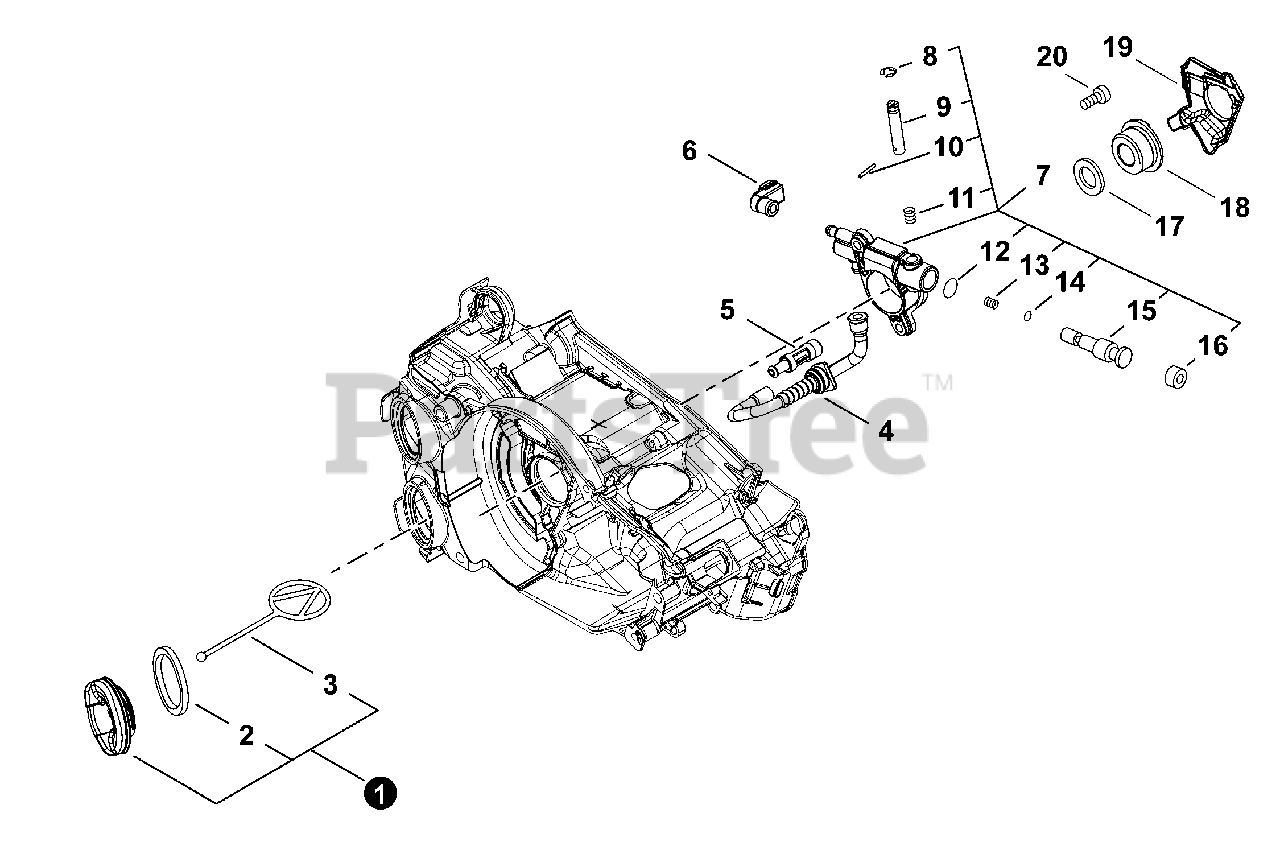

CS-2511 T - Echo Chainsaw (SN: C70215001001 - C70215999999) Oil System Parts Diagram

Chainsaw

Oil System Parts Diagram

  • Title

1

Echo A033000390

CAP ASSY, OIL

$10.99

$

In Stock, Qty 13

0

2

Echo V107000180

GASKET, CAP

$2.49

$

In Stock, only 3 left!

0

3

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

4

Echo V470002200

PIPE, OIL

$7.99

$

In Stock, only 1 left!

0

5

Echo P021050140

FILTER ASSY, OIL

$13.99

$

Usually ships in 2-4 days

0

6

Echo V470002171

PIPE, OIL OUTLET

$2.49

$

Usually ships in 2-4 days

0

7

Echo C022000210

AUTO-OILER ASSY
(Superseded to C022000211)

Note: Includes Items 8-16

$59.99

$

In Stock, only 1 left!

0

8

Echo 12312715030

E-RING

$0.99

$

In Stock, only 3 left!

0

9

Echo P003005430

ADJUSTER, OILER

$12.99

$

In Stock, only 1 left!

0

10

Echo P003002180

PIN, SPRING

$2.99

$

In Stock, only 1 left!

0

11

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

12

Echo P003005420

WASHER

$1.49

$

Usually ships in 2-4 days

0

13

Echo P003005780

SPRING

$1.99

$

Usually ships in 2-4 days

0

14

Echo P003005790

WASHER

$2.49

$

Usually ships in 2-4 days

0

15

Echo P003005770

PLUNGER ASSY

$23.99

$

Usually ships in 2-4 days

0

16

Echo 43706238330

CAP, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

17

Echo V308000030

WASHER 10.5×17.4×1.8

$2.99

$

In Stock, only 2 left!

0

18

Echo V652000230

GEAR, WORM

$9.99

$

Usually ships in 2-4 days

0

19

Echo C236000150

COVER, OILER

$4.49

$

Usually ships in 2-4 days

0

20

Echo V804000050

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0
